Resistors / Thin Film Resistors / MLF14DTS160R
Datasheets

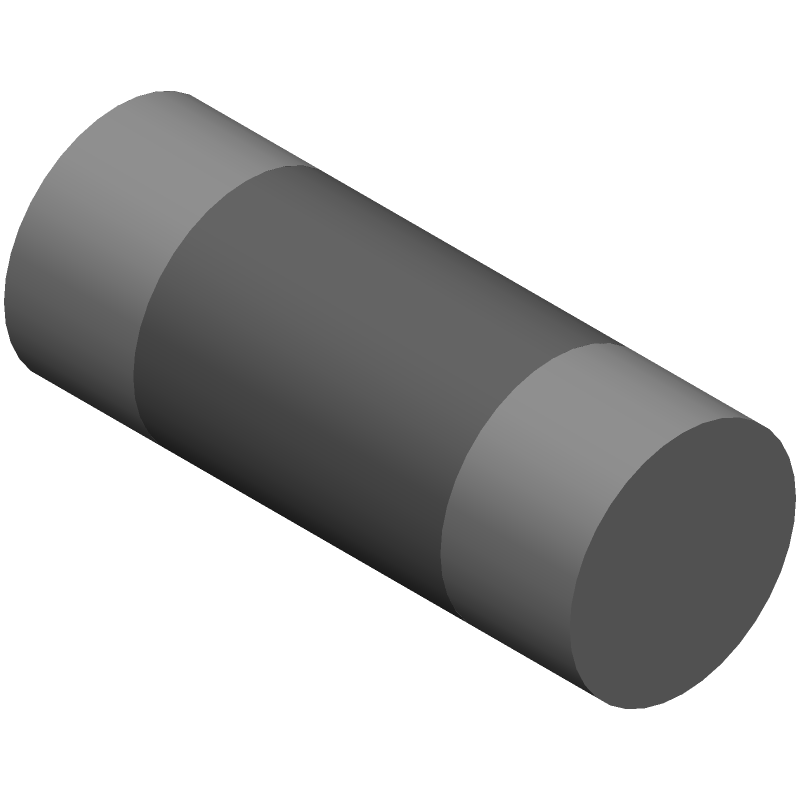

MLF14DTS160R by: SEI Stackpole Electronics Inc

Fixed Resistor, Thin Film, 0.25W, 160ohm, 200V, 0.5% +/-Tol, 15ppm/Cel, Surface Mount, 1406, MELF

Part Details for MLF14DTS160R by SEI Stackpole Electronics Inc

Results Overview of MLF14DTS160R by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Computing and Data Storage Electronic Manufacturing

MLF14DTS160R Information

MLF14DTS160R by SEI Stackpole Electronics Inc is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for MLF14DTS160R

Part # Distributor Description Stock Price Buy
DISTI # MLF14DTS160R-ND
DigiKey RES 160 OHM 0.5% 1/4W MELF 0204 Min Qty: 3000 Lead time: 14 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 3,000 $0.0833
$0.0833 Buy Now
DISTI # MLF14DTS160R
Avnet Americas Res Metal Film 1406 160 Ohm 0.5% 1/4W ?15ppm/?C Conformal SMD Melf Plastic T/R - Tape and Reel (Alt:... MLF14DTS160R) more RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days Container: Reel 0
  • 3,000 $0.0715
  • 6,000 $0.0712
  • 12,000 $0.0708
  • 18,000 $0.0704
  • 24,000 $0.0701
$0.0701 / $0.0715 Buy Now
DISTI # 708-MLF14DTS160R
Mouser Electronics MELF Resistors RES, MELF, 0204, 160 ohm, 0.5%, 15 ppm, 0.25W RoHS: Compliant 0
  • 3,000 $0.0800
  • 9,000 $0.0780
$0.0780 / $0.0800 Order Now
Onlinecomponents.com   RoHS: Compliant 0
  • 3,000 $0.0790
  • 6,000 $0.0730
  • 12,000 $0.0690
  • 24,000 $0.0670
$0.0670 / $0.0790 Buy Now
NAC RESISTOR, METAL FILM, 0204, 160 ohm, 0.5%, 15 ppm, 0.25W - Melf Resistor RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 0
  • 3,000 $0.1830
  • 15,000 $0.1570
  • 75,000 $0.1375
$0.1375 / $0.1830 Buy Now

Part Details for MLF14DTS160R

MLF14DTS160R Part Data Attributes

Parametric Data
MLF14DTS160R SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
MLF14DTS160R SEI Stackpole Electronics Inc Fixed Resistor, Thin Film, 0.25W, 160ohm, 200V, 0.5% +/-Tol, 15ppm/Cel, Surface Mount, 1406, MELF
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STACKPOLE ELECTRONICS INC
Package Description MELF
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 13 Weeks
Samacsys Manufacturer Stackpole Electronics, Inc.
Additional Feature ANTI-SULFUR; PRECISION
Construction Cylindrical
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Diameter 1.4 mm
Package Length 3.5 mm
Package Shape CYLINDRICAL PACKAGE
Package Style MELF
Packing Method TR, Embossed Plastic, 7 Inch
Rated Power Dissipation (P) 0.25 W
Rated Temperature 70 °C
Resistance 160 Ω
Resistor Type FIXED RESISTOR
Size Code 1406
Surface Mount YES
Technology METAL FILM
Temperature Coefficient 15 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 0.5%
Working Voltage 200 V

Alternate Parts for MLF14DTS160R

This table gives cross-reference parts and alternative options found for MLF14DTS160R. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MLF14DTS160R, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ZC0204DKC13160R Vitrohm Portuguesa LDA Check for Price Fixed Resistor, Metal Film, 0.25W, 160ohm, 200V, 0.5% +/-Tol, 15ppm/Cel, Surface Mount, 1406, MELF, ROHS COMPLIANT MLF14DTS160R vs ZC0204DKC13160R
CSR0204DTNV1600 Viking Tech Corp Check for Price Fixed Resistor, Metal Film, 0.25W, 160ohm, 200V, 0.5% +/-Tol, -15,15ppm/Cel, MLF14DTS160R vs CSR0204DTNV1600
ZC0204DKC07160R Vitrohm Portuguesa LDA Check for Price Fixed Resistor, Metal Film, 0.25W, 160ohm, 200V, 0.5% +/-Tol, 15ppm/Cel, Surface Mount, 1406, MELF, ROHS COMPLIANT MLF14DTS160R vs ZC0204DKC07160R
ZC0204DKC07160 YAGEO Corporation Check for Price Fixed Resistor, Metal Film, 0.25W, 160ohm, 0.5% +/-Tol, 15ppm/Cel, Surface Mount, 1406, MELF MLF14DTS160R vs ZC0204DKC07160
