Resistors / Thin Film Resistors / MCU08050D3602BP100
Datasheets
MCU08050D3602BP100 by:
Vishay Intertechnologies
Vishay Beyschlag
Vishay Intertechnologies
Not Found

Fixed Resistor, Thin Film, 0.125W, 36000ohm, 150V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0805, CHIP

Part Details for MCU08050D3602BP100 by Vishay Intertechnologies

Results Overview of MCU08050D3602BP100 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MCU08050D3602BP100 Information

MCU08050D3602BP100 by Vishay Intertechnologies is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for MCU08050D3602BP100

Part # Distributor Description Stock Price Buy
DISTI # 64P6005
Newark Mcu 0805-25 0.1% P1 36K |Vishay MCU08050D3602BP100 RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.2200
  • 5,000 $0.2150
  • 10,000 $0.1990
  • 20,000 $0.1850
  • 30,000 $0.1730
  • 50,000 $0.1650
$0.1650 / $0.2200 Buy Now
DISTI # MCU08050D3602BP100
Avnet Americas MCU 0805-25 0.1% P1 36K - Tape and Reel (Alt: MCU08050D3602BP100) Min Qty: 1000 Package Multiple: 1000 Lead time: 9 Weeks, 0 Days Container: Reel 0
  • 1,000 $0.1592
  • 2,000 $0.1563
  • 4,000 $0.1543
  • 6,000 $0.1515
  • 8,000 $0.1471
$0.1471 / $0.1592 Buy Now
DISTI # 594-MCU08050D3602BP1
Mouser Electronics Thin Film Resistors - SMD MCU 0805-25 0.1% P1 36K RoHS: Compliant 0
  • 1 $0.5500
  • 10 $0.3920
  • 50 $0.3040
  • 100 $0.2710
  • 500 $0.2090
  • 1,000 $0.1820
$0.1820 / $0.5500 Order Now
ComSIT USA AVAILABLE EU 455
RFQ

Part Details for MCU08050D3602BP100

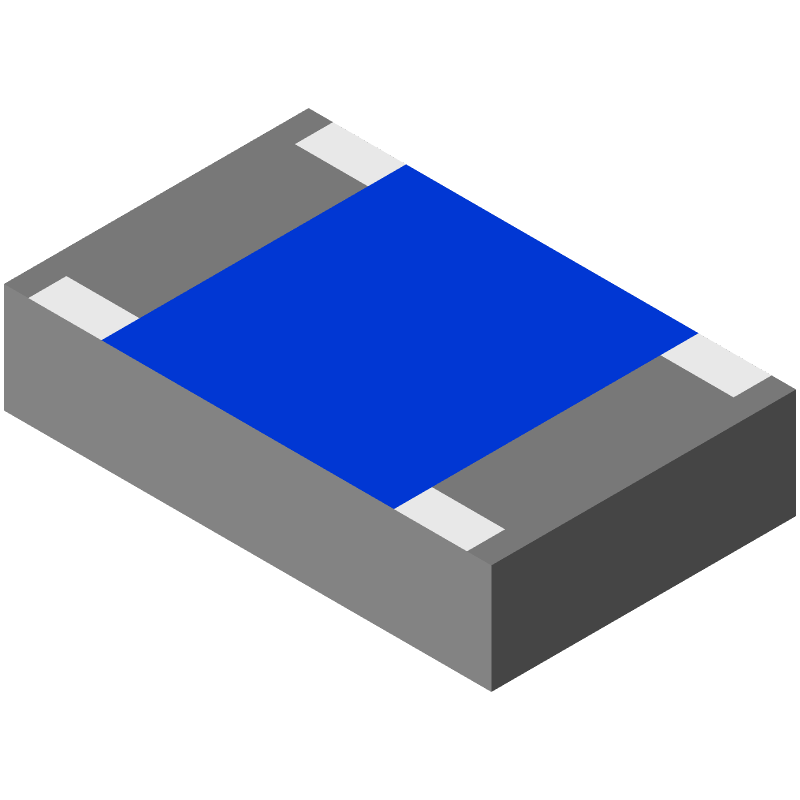

MCU08050D3602BP100 CAD Models

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCU08050D3602BP100 Part Data Attributes

Parametric Data
MCU08050D3602BP100 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
MCU08050D3602BP100 Vishay Intertechnologies Fixed Resistor, Thin Film, 0.125W, 36000ohm, 150V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0805, CHIP
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 9 Weeks
Samacsys Manufacturer Vishay
Additional Feature ANTI-SULFUR, LASER TRIMMABLE, PRECISION, RATED AC VOLTAGE: 150V
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Height 0.45 mm
Package Length 2 mm
Package Style SMT
Package Width 1.25 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.125 W
Rated Temperature 70 °C
Reference Standard CECC40401-801
Resistance 36000 Ω
Resistor Type FIXED RESISTOR
Size Code 0805
Surface Mount YES
Technology THIN FILM
Temperature Coefficient 25 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 0.1%
Working Voltage 150 V

Alternate Parts for MCU08050D3602BP100

This table gives cross-reference parts and alternative options found for MCU08050D3602BP100. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCU08050D3602BP100, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
239060143603 YAGEO Corporation Check for Price RESISTOR, THIN FILM, 0.125W, 0.1%, 25ppm, 36000ohm, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT MCU08050D3602BP100 vs 239060143603
9T08052A3602WAPF4 YAGEO Corporation Check for Price Fixed Resistor, Thin Film, 0.125W, 36000ohm, 150V, 0.05% +/-Tol, -25,25ppm/Cel, 0805, MCU08050D3602BP100 vs 9T08052A3602WAPF4
9T08052A3602BAPF4 YAGEO Corporation Check for Price Fixed Resistor, Thin Film, 0.125W, 36000ohm, 150V, 0.1% +/-Tol, -25,25ppm/Cel, 0805, MCU08050D3602BP100 vs 9T08052A3602BAPF4
RT0805WRD1336K YAGEO Corporation Check for Price Fixed Resistor, Thin Film, 0.125W, 36000ohm, 150V, 0.05% +/-Tol, -25,25ppm/Cel, 0805 MCU08050D3602BP100 vs RT0805WRD1336K
MCU08050D3602BPW00 Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.125W, 36000ohm, 150V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0805, CHIP MCU08050D3602BP100 vs MCU08050D3602BPW00
MCU08050D3602BPW Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.125W, 36000ohm, 150V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0805, CHIP MCU08050D3602BP100 vs MCU08050D3602BPW
M1208050D3602BP500 Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.1W, 36000ohm, 150V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT MCU08050D3602BP100 vs M1208050D3602BP500
9T08052A3602WAPF3 YAGEO Corporation Check for Price Fixed Resistor, Thin Film, 0.125W, 36000ohm, 150V, 0.05% +/-Tol, -25,25ppm/Cel, 0805, MCU08050D3602BP100 vs 9T08052A3602WAPF3
9T08052A3602BAPF3 YAGEO Corporation Check for Price Fixed Resistor, Thin Film, 0.125W, 36000ohm, 150V, 0.1% +/-Tol, -25,25ppm/Cel, 0805, MCU08050D3602BP100 vs 9T08052A3602BAPF3
MCU0805-250.1%P136K Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.125W, 36000ohm, 150V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0805, CHIP MCU08050D3602BP100 vs MCU0805-250.1%P136K
