Resistors / Thin Film Resistors / MCU08050C1801FP500
Datasheets
MCU08050C1801FP500 by:
Vishay Intertechnologies
Vishay Beyschlag
Vishay Intertechnologies
Not Found

Fixed Resistor, Thin Film, 0.125W, 1800ohm, 150V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0805, CHIP

Part Details for MCU08050C1801FP500 by Vishay Intertechnologies

Results Overview of MCU08050C1801FP500 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MCU08050C1801FP500 Information

MCU08050C1801FP500 by Vishay Intertechnologies is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for MCU08050C1801FP500

Part # Distributor Description Stock Price Buy
DISTI # 64P5619
Newark Mcu 0805-50 1% P5 1K8 |Vishay MCU08050C1801FP500 RoHS: Not Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 5,000 $0.0700
  • 10,000 $0.0570
  • 20,000 $0.0500
  • 30,000 $0.0460
  • 50,000 $0.0400
$0.0400 / $0.0700 Buy Now
DISTI # MCU08050C1801FP500
Avnet Americas MCU 0805-50 1% P5 1K8 - Tape and Reel (Alt: MCU08050C1801FP500) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 9 Weeks, 0 Days Container: Reel 0
  • 5,000 $0.0421
  • 10,000 $0.0419
  • 20,000 $0.0417
  • 30,000 $0.0415
  • 40,000 $0.0413
$0.0413 / $0.0421 Buy Now
DISTI # 594-MCU08050C1801FP5
Mouser Electronics Thin Film Resistors - SMD .125W 1.8Kohms 1% 0805 50ppm RoHS: Compliant 0
  • 1 $0.3300
  • 10 $0.1700
  • 100 $0.1000
  • 500 $0.0740
  • 1,000 $0.0670
  • 5,000 $0.0430
$0.0430 / $0.3300 Order Now
DISTI # MCU08050C1801FP500
Avnet Abacus MCU 080550 1 P5 1K8 (Alt: MCU08050C1801FP500) RoHS: Compliant Min Qty: 20000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for MCU08050C1801FP500

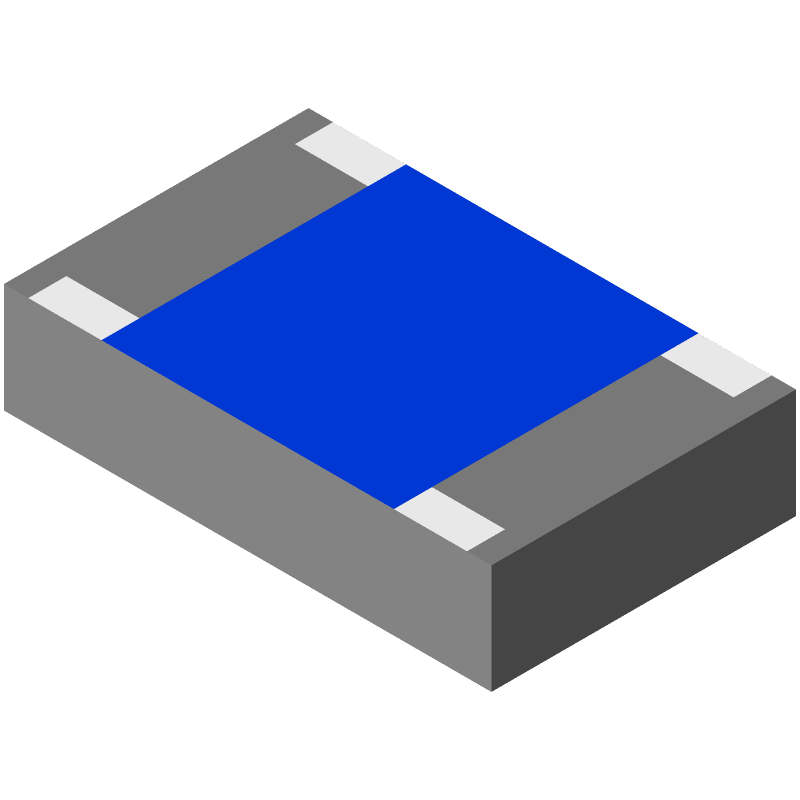

MCU08050C1801FP500 CAD Models

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCU08050C1801FP500 Part Data Attributes

Parametric Data
MCU08050C1801FP500 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
MCU08050C1801FP500 Vishay Intertechnologies Fixed Resistor, Thin Film, 0.125W, 1800ohm, 150V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0805, CHIP
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
Factory Lead Time 9 Weeks
Samacsys Manufacturer Vishay
Additional Feature ANTI-SULFUR;RATED AC VOLTAGE:150V
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Height 0.45 mm
Package Length 2 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 1.25 mm
Packing Method TR, Paper, 7 Inch
Rated Power Dissipation (P) 0.125 W
Rated Temperature 70 °C
Reference Standard CECC40401-801
Resistance 1800 Ω
Resistor Type FIXED RESISTOR
Size Code 0805
Surface Mount YES
Technology THIN FILM
Temperature Coefficient 50 ppm/°C
Terminal Finish TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 150 V

Alternate Parts for MCU08050C1801FP500

This table gives cross-reference parts and alternative options found for MCU08050C1801FP500. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCU08050C1801FP500, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RT0805FRE071K8 YAGEO Corporation Check for Price Fixed Resistor, Thin Film, 0.125W, 1800ohm, 150V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT MCU08050C1801FP500 vs RT0805FRE071K8
RTF12182F Dubilier Check for Price Fixed Resistor, Thin Film, 0.125W, 1800ohm, 150V, 1% +/-Tol, 50ppm/Cel, 0805, MCU08050C1801FP500 vs RTF12182F
MCU08050C1801FPW00 Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.125W, 1800ohm, 150V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0805, CHIP MCU08050C1801FP500 vs MCU08050C1801FPW00
RB10FBS1801 TA-I Technology Co Ltd Check for Price Fixed Resistor, Thin Film, 0.125W, 1800ohm, 150V, 1% +/-Tol, -50,50ppm/Cel, 0805, MCU08050C1801FP500 vs RB10FBS1801
9T08052A1801FBPF3 YAGEO Corporation Check for Price Fixed Resistor, Thin Film, 0.125W, 1800ohm, 150V, 1% +/-Tol, -50,50ppm/Cel, 0805, MCU08050C1801FP500 vs 9T08052A1801FBPF3
MCU08050C1801FP500 Vishay Beyschlag Check for Price RESISTOR, THIN FILM, 0.125 W, 1 %, 50 ppm, 1800 ohm, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT MCU08050C1801FP500 vs MCU08050C1801FP500
MCU08050C1801FPW00 Vishay Beyschlag Check for Price RESISTOR, THIN FILM, 0.125 W, 1 %, 50 ppm, 1800 ohm, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT MCU08050C1801FP500 vs MCU08050C1801FPW00
RT0805FRE131K8 YAGEO Corporation Check for Price Fixed Resistor, Thin Film, 0.125W, 1800ohm, 150V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT MCU08050C1801FP500 vs RT0805FRE131K8
