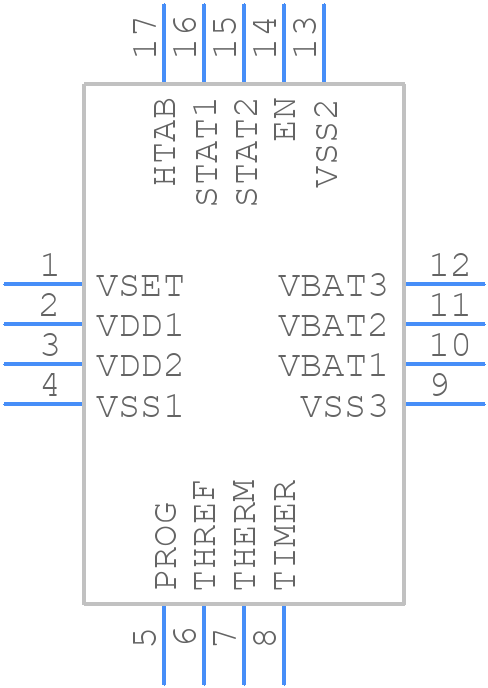

Part Symbol
-
Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCP73863-I/ML by Microchip Technology Inc
Results Overview of MCP73863-I/ML by Microchip Technology Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
MCP73863-I/ML Information
MCP73863-I/ML by Microchip Technology Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MCP73863-I/ML
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
NAC | Highly-Integrated Dual Cell Lithium-Ion/Lithium-Polymer Charge Management Controller - Package: 16 Q... more RoHS: Compliant Min Qty: 182 Package Multiple: 91 Container: Tube | 0 |
|
RFQ | |
|
|
Vyrian | Other Function Semiconductors | 1278 |
|
RFQ |
Part Details for MCP73863-I/ML
MCP73863-I/ML CAD Models
MCP73863-I/ML Part Data Attributes
|
|
MCP73863-I/ML
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MCP73863-I/ML
Microchip Technology Inc
1-CHANNEL POWER SUPPLY SUPPORT CKT, PQCC16, 4 X 4 MM, 0.9 MM HEIGHT, PLASTIC, MO-220, QFN-16
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | QFN | |
| Package Description | 4 X 4 MM, 0.9 MM HEIGHT, PLASTIC, MO-220, QFN-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Microchip | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | LINEAR BATTERY CHARGER | |
| JESD-30 Code | S-PQCC-N16 | |
| JESD-609 Code | e3 | |
| Length | 4 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC16,.16SQ,25 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 mm | |
| Supply Current-Max (Isup) | 4 mA | |
| Supply Voltage-Max (Vsup) | 12 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | QUAD | |
| Width | 4 mm |
MCP73863-I/ML Frequently Asked Questions (FAQ)
-
The maximum charging current that the MCP73863-I/ML can handle is 1.5A.
-
The MCP73863-I/ML has a built-in overcharge protection feature that prevents the battery from being overcharged. It does this by monitoring the battery voltage and current, and terminating the charge cycle when the battery is fully charged.
-
No, the MCP73863-I/ML is designed to charge a single lithium-ion or lithium-polymer battery. It is not suitable for charging multiple batteries.
-
The operating temperature range of the MCP73863-I/ML is -40°C to +85°C.
-
No, the MCP73863-I/ML does not have a built-in power switch. An external power switch is required to control the power to the device.
