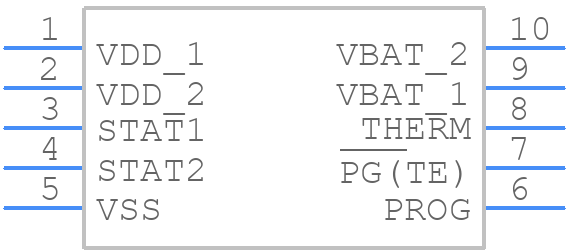

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCP73833-CNI/UN by Microchip Technology Inc
Results Overview of MCP73833-CNI/UN by Microchip Technology Inc
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
MCP73833-CNI/UN Information
MCP73833-CNI/UN by Microchip Technology Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MCP73833-CNI/UN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
17M0660
|
Newark | 1A Li-Ion/Li-Poly Charge Mgmt Controller, Pg Output 10 Msop 3X3Mm Tube Rohs Compliant: Yes |Microchi... more RoHS: Compliant Min Qty: 400 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.9860 | Buy Now |
|
DISTI #
MCP73833-CNI/UN-ND
|
DigiKey | IC BATT CNTRL LI-ION 1CEL 10MSOP Min Qty: 1 Lead time: 4 Weeks Container: Tube |
448 In Stock |
|
$0.9300 / $1.2400 | Buy Now |
|
DISTI #
MCP73833-CNI/UN
|
Avnet Americas | Linear Charge Management Controller Li-Ion/Li-Pol 1mA 4.2V/4.35V/4.4V/4.5V 10-Pin MSOP Tube - Rail/T... more RoHS: Compliant Min Qty: 400 Package Multiple: 100 Lead time: 4 Weeks, 0 Days Container: Tube | 0 |
|
$0.9400 / $0.9875 | Buy Now |
|
DISTI #
579-MCP73833-CNI/UN
|
Mouser Electronics | Battery Management Charge Management Controllers RoHS: Compliant | 4133 |
|
$0.9300 / $1.2400 | Buy Now |
|
DISTI #
MCP73833-CNI/UN
|
Microchip Technology Inc | Single Cell Li-Ion/Li-Polymer Charge Mgmmt. Controller, MSOP, Projected EOL: 2034-09-05 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube |
14800 Alternates Available |
|
$0.8100 / $1.2400 | Buy Now |
|
DISTI #
70567740
|
RS | 1A Li-Ion/Li-Poly Charge mgmt controller, PG output Min Qty: 400 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 0 |
|
$1.4700 / $1.7300 | RFQ |
|
|
Onlinecomponents.com | Linear Battery Charger Controller Li-Ion/Li-Pol 1000mA 4.2V 10-Pin MSOP Tube RoHS: Compliant | 16800 Factory Stock |
|
$0.8150 / $0.9710 | Buy Now |
|
DISTI #
MCP73833-CNI/UN
|
TME | IC: PMIC, battery charging controller, Iout: 1A, 4.2V, MSOP10 Min Qty: 1 | 0 |
|
$0.9200 / $1.4500 | RFQ |
|
|
NAC | 1A Li-Ion/Li-Poly Charge mgmt controller, PG output - Package: 10 MSOP 3x3mm TUBE RoHS: Compliant Min Qty: 400 Package Multiple: 100 Container: Tube | 0 |
|
$0.9900 / $1.2200 | Buy Now |
|
DISTI #
MCP73833-CNI/UN
|
Avnet Silica | Linear Charge Management Controller LiIonLiPol 1mA 42V435V44V45V 10Pin MSOP Tube (Alt: MCP73833-CNI/... more RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 6 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for MCP73833-CNI/UN
MCP73833-CNI/UN CAD Models
MCP73833-CNI/UN Part Data Attributes
|
|
MCP73833-CNI/UN
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MCP73833-CNI/UN
Microchip Technology Inc
IC,BATTERY MANAGEMENT,TSSOP,10PIN,PLASTIC
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Adjustable Threshold | YES | |
| Analog IC - Other Type | LINEAR BATTERY CHARGER | |
| JESD-30 Code | R-PDSO-G10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP10,.19,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max (Isup) | 3 mA | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 3.75 V | |
| Supply Voltage-Nom (Vsup) | 5.2 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 3 mm |
Alternate Parts for MCP73833-CNI/UN
This table gives cross-reference parts and alternative options found for MCP73833-CNI/UN. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCP73833-CNI/UN, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MCP73834-CNI/MF | Microchip Technology Inc | $0.9545 | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO10, 3 X 3 MM, 0.90 MM HEIGHT, PLASTIC, DFN-10 | MCP73833-CNI/UN vs MCP73834-CNI/MF |
| MCP73834-NVI/MF | Microchip Technology Inc | $0.9545 | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO10, 3 X 3 MM, 0.90 MM HEIGHT, PLASTIC, DFN-10 | MCP73833-CNI/UN vs MCP73834-NVI/MF |
| MCP73833T-FCI/MF | Microchip Technology Inc | $0.9249 | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO10, 3 X 3 MM, 0.90 MM HEIGHT, PLASTIC, DFN-10 | MCP73833-CNI/UN vs MCP73833T-FCI/MF |
| MCP73833T-FCI/UN | Microchip Technology Inc | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO10, PLASTIC, MO-187BA, MSOP-10 | MCP73833-CNI/UN vs MCP73833T-FCI/UN |
| MCP73833-AMI/UN | Microchip Technology Inc | $0.7954 | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO10, PLASTIC, MO-187BA, MSOP-10 | MCP73833-CNI/UN vs MCP73833-AMI/UN |
| MCP73834T-FCI/UN | Microchip Technology Inc | $1.0000 | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO10, PLASTIC, MO-187BA, MSOP-10 | MCP73833-CNI/UN vs MCP73834T-FCI/UN |
| MCP73833T-HAI/MF | Microchip Technology Inc | Check for Price | Power Supply Support Circuit, Adjustable, 1 Channel, PDSO10 | MCP73833-CNI/UN vs MCP73833T-HAI/MF |
| MCP73833-CNI/MF | Microchip Technology Inc | $0.8762 | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO10, 3 X 3 MM, 0.90 MM HEIGHT, PLASTIC, DFN-10 | MCP73833-CNI/UN vs MCP73833-CNI/MF |
| MCP73833T-GPI/MF | Microchip Technology Inc | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO10, 3 X 3 MM, 0.90 MM HEIGHT, PLASTIC, DFN-10 | MCP73833-CNI/UN vs MCP73833T-GPI/MF |
| MCP73834T-BZI/MF | Microchip Technology Inc | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO10, 3 X 3 MM, 0.90 MM HEIGHT, PLASTIC, DFN-10 | MCP73833-CNI/UN vs MCP73834T-BZI/MF |
MCP73833-CNI/UN Frequently Asked Questions (FAQ)
-
The maximum charging current that the MCP73833 can handle is 1.5A, but it can be limited to a lower value by using an external resistor.
-
The MCP73833 has a built-in over-charge protection feature that prevents the battery from being overcharged. It does this by monitoring the battery voltage and temperature, and terminating the charge cycle when the battery is fully charged.
-
Yes, the MCP73833 can be used to charge multiple batteries in parallel, but it's recommended to use a separate charge controller for each battery to ensure safe and efficient charging.
-
The EN (Enable) pin on the MCP73833 is used to enable or disable the charging function. When the EN pin is high, the charging function is enabled, and when it's low, the charging function is disabled.
-
The MCP73833 has a built-in thermistor input that allows it to monitor the battery temperature. It uses this information to adjust the charging current and prevent overheating or overcooling of the battery.
