MCP651ST-E/OT by: Microchip Technology Inc

OP-AMP, 200 uV OFFSET-MAX, 50 MHz BAND WIDTH, PDSO5, 2 X 3 MM, PLASTIC, SOT-23, 5 PIN

Part Details for MCP651ST-E/OT by Microchip Technology Inc

Results Overview of MCP651ST-E/OT by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

MCP651ST-E/OT Information

MCP651ST-E/OT by Microchip Technology Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for MCP651ST-E/OT

Part # Distributor Description Stock Price Buy
DISTI # 61T7643
Newark Op Amp, Rro, 50Mhz, 5Sot23, No. Of Amplifiers:1 Amplifier, Bandwidth:50Mhz, Slew Rate:30V/Μs, Su... pply Voltage Range:2.5V To 5.5V, Amplifier Case Style:Sot-23, No. Of Pins:5Pins, Operating Temperature Min:-40°C, Operating Temperature Rohs Compliant: Yes |Microchip MCP651ST-E/OT more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1481
  • 1 $2.2500
$2.2500 Buy Now
DISTI # 41T4161
Newark Single, 50Mhz Op, Mcal, E Temp 5 Sot-23 T/R Rohs Compliant: Yes |Microchip MCP651ST-E/OT RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 100 $1.6800
$1.6800 Buy Now
DISTI # MCP651ST-E/OTCT-ND
DigiKey IC OPAMP GP 1 CIRCUIT SOT23-5 Min Qty: 1 Lead time: 7 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 4231
In Stock
  • 1 $2.1600
  • 25 $1.8100
  • 100 $1.6300
  • 3,000 $1.6300
$1.6300 / $2.1600 Buy Now
DISTI # MCP651ST-E/OT
Avnet Americas Operational Amplifier, Single, 1 Channels, 50 MHz, 30 V/?s, 2.5V to 5.5V, SOT-23, 5 Pins - Tape and ... Reel (Alt: MCP651ST-E/OT) more RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 7 Weeks, 0 Days Container: Reel 0
  • 3,000 $1.7375
  • 6,000 $1.7095
  • 12,000 $1.6818
  • 18,000 $1.6540
  • 24,000 $1.6263
$1.6263 / $1.7375 Buy Now
DISTI # 579-MCP651ST-E/OT
Mouser Electronics Operational Amplifiers - Op Amps Single 50MHz OP mCal E temp RoHS: Compliant 3216
  • 1 $2.1600
  • 25 $1.8100
  • 100 $1.6300
  • 3,000 $1.6200
$1.6200 / $2.1600 Buy Now
DISTI # MCP651ST-E/OT
Microchip Technology Inc Single, 50MHz OP, mCal, E temp, SOT-23, Projected EOL: 2039-06-23 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel 39013
  • 1 $2.1600
  • 25 $1.8100
  • 100 $1.6300
  • 1,000 $1.5900
  • 5,000 $1.5800
$1.5800 / $2.1600 Buy Now
DISTI # 70048358
RS IC, Op Amp, Outputs,1,50MHz, IQ,6mA, SLEW RATE,30V/US,2.5-5.5V, SOT-23-5 | Microchip Technology Inc.... MCP651ST-E/OT more RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Lead time: 17 Weeks, 0 Days Container: Bulk 0
  • 3,000 $2.0700
$2.0700 RFQ
Onlinecomponents.com Op Amp Single GP R-R O/P 5.5V Automotive 5-Pin SOT-23 T/R RoHS: Compliant 3000 In Stock
39000 Factory Stock
  • 10 $4.1600
  • 250 $4.1000
  • 500 $4.0400
  • 750 $3.9800
  • 1,500 $2.1100
  • 2,250 $1.4800
  • 3,000 $1.4500
$1.4500 / $4.1600 Buy Now
DISTI # 71234969
Verical Op Amp Single GP R-R O/P 5.5V 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 250 Package Multiple: 250 Date Code: 2338 Americas - 3000
  • 250 $1.9359
  • 500 $1.8909
  • 1,000 $1.8474
  • 3,000 $1.7878
$1.7878 / $1.9359 Buy Now
Quest Components OPERATIONAL AMPLIFIER, 1 FUNC, 200UV OFFSET-MAX, CMOS, PDSO5 21
  • 1 $3.4425
  • 4 $2.2950
  • 12 $1.7213
$1.7213 / $3.4425 Buy Now
DISTI # MCP651ST-E/OT
TME IC: operational amplifier, 50MHz, 2.5÷5.5V, Ch: 1, SOT23-5 Min Qty: 1 0
  • 1 $2.5300
  • 5 $2.4200
  • 20 $2.3100
  • 100 $2.1900
$2.1900 / $2.5300 RFQ
NAC Single, 50MHz OP, mCal, E temp - Package: 5 SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 0
  • 1 $2.1400
  • 100 $1.9300
  • 500 $1.7800
  • 1,000 $1.7400
$1.7400 / $2.1400 Buy Now
DISTI # MCP651ST-E/OT
Avnet Silica Operational Amplifier Single 1 Channels 50 MHz 30 Vs 25V to 55V SOT23 5 Pins (Alt: MCP651ST-E/OT) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
DISTI # MCP651ST-E/OT
EBV Elektronik Operational Amplifier Single 1 Channels 50 MHz 30 Vs 25V to 55V SOT23 5 Pins (Alt: MCP651ST-E/OT) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics Op Amp Single GP R-R O/P 5.5V Automotive 5-Pin SOT-23 T/R RoHS: Compliant 3000 In Stock
39000 Factory Stock
  • 10 $4.1600
  • 250 $4.1000
  • 500 $4.0400
  • 750 $3.9800
  • 1,500 $2.1100
  • 2,250 $1.4800
  • 3,000 $1.4500
$1.4500 / $4.1600 Buy Now
Vyrian Amplifiers 7046
RFQ

Part Details for MCP651ST-E/OT

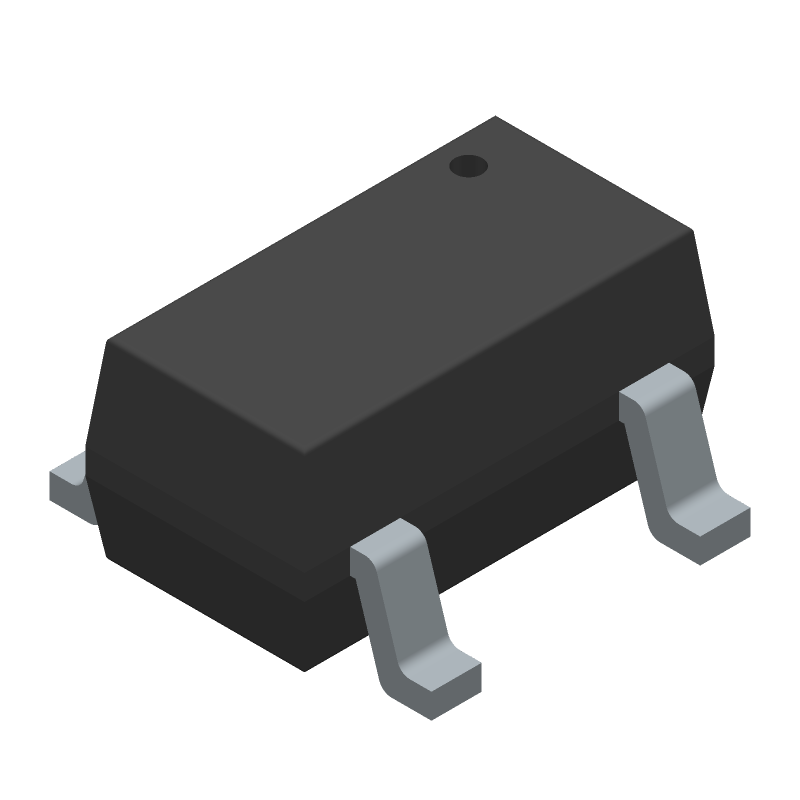

MCP651ST-E/OT CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCP651ST-E/OT Part Data Attributes

Parametric Data
MCP651ST-E/OT Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
MCP651ST-E/OT Microchip Technology Inc OP-AMP, 200 uV OFFSET-MAX, 50 MHz BAND WIDTH, PDSO5, 2 X 3 MM, PLASTIC, SOT-23, 5 PIN
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SOT-23
Package Description SOT-23, 5 PIN
Pin Count 5
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Factory Lead Time 7 Weeks
Samacsys Manufacturer Microchip
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.005 µA
Common-mode Reject Ratio-Min 68 dB
Common-mode Reject Ratio-Nom 84 dB
Frequency Compensation YES
Input Offset Voltage-Max 200 µV
JESD-30 Code R-PDSO-G5
JESD-609 Code e3
Length 2.9 mm
Low-Bias YES
Low-Offset YES
Micropower NO
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 5
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code LSOP
Package Equivalence Code TSOP5/6,.11,37
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, LOW PROFILE
Packing Method TR
Peak Reflow Temperature (Cel) 260
Power NO
Programmable Power NO
Qualification Status Not Qualified
Screening Level TS 16949
Seated Height-Max 1.45 mm
Slew Rate-Nom 30 V/us
Supply Current-Max 9 mA
Supply Voltage Limit-Max 6.5 V
Supply Voltage-Nom (Vsup) 2.5 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.95 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Unity Gain BW-Nom 50000
Voltage Gain-Min 25118
Wideband NO
Width 1.55 mm
