Amplifier Circuits / Operational Amplifiers / MCP6484T-E/SL
Datasheets
MCP6484T-E/SL by: Microchip Technology Inc

OP-AMP

Part Details for MCP6484T-E/SL by Microchip Technology Inc

Results Overview of MCP6484T-E/SL by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

MCP6484T-E/SL Information

MCP6484T-E/SL by Microchip Technology Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for MCP6484T-E/SL

Part # Distributor Description Stock Price Buy
DISTI # 89W8576
Newark Quad 5 Mhz Op, E Temp 14 Soic .150In T/R Rohs Compliant: Yes |Microchip MCP6484T-E/SL RoHS: Compliant Min Qty: 2600 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 100 $1.5000
$1.5000 Buy Now
DISTI # MCP6484T-E/SL-ND
DigiKey IC OPAMP GP 4 CIRCUIT 14SOIC Min Qty: 2600 Lead time: 7 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 2,600 $1.4500
$1.4500 Buy Now
DISTI # MCP6484T-E/SL
Avnet Americas OP Amp Quad GP R-R I/O 5.5V 14-Pin SOIC T/R - Tape and Reel (Alt: MCP6484T-E/SL) RoHS: Compliant Min Qty: 2600 Package Multiple: 2600 Lead time: 7 Weeks, 0 Days Container: Reel 0
  • 2,600 $1.5875
  • 5,200 $1.5619
  • 10,400 $1.5366
  • 15,600 $1.5112
  • 20,800 $1.4859
$1.4859 / $1.5875 Buy Now
DISTI # 579-MCP6484T-E/SL
Mouser Electronics Operational Amplifiers - Op Amps Quad 5MHz OP E temp RoHS: Compliant 0
  • 2,600 $1.4500
$1.4500 Order Now
DISTI # MCP6484T-E/SL
Microchip Technology Inc 4.5 MHz Low Power, Low IBias Quad Op Amp, SOIC, Projected EOL: 2039-05-30 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel 2600

Alternates Available
  • 1 $1.9100
  • 25 $1.6000
  • 100 $1.4500
  • 5,000 $1.4300
$1.4300 / $1.9100 Buy Now
DISTI # 70570106
RS IC OPAMP GP 4MHZ RRO 14SOIC Min Qty: 2600 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk 0
  • 2,600 $2.6500
  • 26,000 $2.5200
  • 130,000 $2.3900
  • 260,000 $2.2500
$2.2500 / $2.6500 RFQ
Onlinecomponents.com IC OPAMP GP 4MHZ RRO 14SOIC | Microchip Technology Inc. MCP6484T-E/SL RoHS: Compliant 0
  • 650 $3.5400
  • 1,300 $1.8700
  • 1,950 $1.3200
  • 2,600 $1.2900
$1.2900 / $3.5400 Buy Now
NAC Quad 5 MHz OP, E temp - Package: 14 SOIC .150in T/R RoHS: Compliant Min Qty: 2600 Package Multiple: 2600 0
  • 1 $1.9500
  • 100 $1.7600
  • 500 $1.6300
  • 1,000 $1.5900
$1.5900 / $1.9500 Buy Now
DISTI # MCP6484T-E/SL
Avnet Silica OP Amp Quad GP RR IO 55V 14Pin SOIC TR (Alt: MCP6484T-E/SL) RoHS: Compliant Min Qty: 2600 Package Multiple: 2600 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
Master Electronics IC OPAMP GP 4MHZ RRO 14SOIC | Microchip Technology Inc. MCP6484T-E/SL RoHS: Compliant 0
  • 650 $3.5400
  • 1,300 $1.8700
  • 1,950 $1.3200
  • 2,600 $1.2900
$1.2900 / $3.5400 Buy Now

Part Details for MCP6484T-E/SL

MCP6484T-E/SL CAD Models

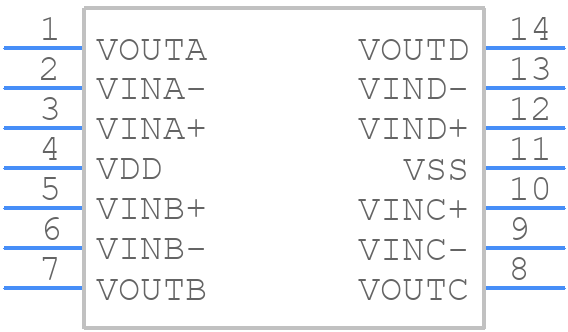

  • Part Symbol

    Part Symbol

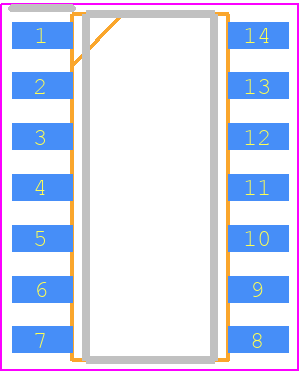

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCP6484T-E/SL Part Data Attributes

Parametric Data
MCP6484T-E/SL Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
MCP6484T-E/SL Microchip Technology Inc OP-AMP
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description 3.90 MM, PLASTIC, SOIC-14
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Factory Lead Time 7 Weeks
Samacsys Manufacturer Microchip
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.00035 µA
Common-mode Reject Ratio-Min 70 dB
Common-mode Reject Ratio-Nom 89 dB
Frequency Compensation YES
Input Offset Voltage-Max 1500 µV
JESD-30 Code R-PDSO-G14
JESD-609 Code e3
Length 8.65 mm
Low-Bias YES
Low-Offset NO
Micropower YES
Moisture Sensitivity Level 1
Number of Functions 4
Number of Terminals 14
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TR
Peak Reflow Temperature (Cel) 260
Power NO
Programmable Power NO
Screening Level TS 16949
Seated Height-Max 1.75 mm
Slew Rate-Nom 2.7 V/us
Supply Current-Max 1.6 mA
Supply Voltage Limit-Max 6.5 V
Supply Voltage-Nom (Vsup) 3 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Unity Gain BW-Nom 4000
Voltage Gain-Min 56200
Wideband NO
Width 3.9 mm

Alternate Parts for MCP6484T-E/SL

This table gives cross-reference parts and alternative options found for MCP6484T-E/SL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCP6484T-E/SL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MCP6484-E/SL Microchip Technology Inc $1.5294 OP-AMP MCP6484T-E/SL vs MCP6484-E/SL
