Power Circuits / Linear Regulator ICs / MCP1754T-5002E/DC
Datasheets
MCP1754T-5002E/DC by: Microchip Technology Inc

5 V FIXED POSITIVE LDO REGULATOR, 0.5 V DROPOUT, PDSO5, PLASTIC, SOT-223, 5 PIN

Part Details for MCP1754T-5002E/DC by Microchip Technology Inc

Results Overview of MCP1754T-5002E/DC by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MCP1754T-5002E/DC Information

MCP1754T-5002E/DC by Microchip Technology Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
MGN1S1208MC-R7 Murata Manufacturing Co Ltd DC-DC 1W SM 12-8V GAN
MGN1D120603MC-R7 Murata Manufacturing Co Ltd DC-DC 1W SM 12-6/-3V GAN
MGN1S1212MC-R7 Murata Manufacturing Co Ltd DC-DC 1W SM 12-12V GAN

Price & Stock for MCP1754T-5002E/DC

Part # Distributor Description Stock Price Buy
DISTI # 73T0673
Newark Ldo 5 Sot-223 T/R Rohs Compliant: Yes |Microchip MCP1754T-5002E/DC RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 100 $0.7210
$0.7210 Buy Now
DISTI # 150-MCP1754T-5002E/DCCT-ND
DigiKey IC REG LINEAR 5V 150MA SOT-223-5 Min Qty: 1 Lead time: 7 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 1028
In Stock
  • 1 $0.8800
  • 25 $0.7500
  • 100 $0.7250
  • 4,000 $0.7250
$0.7250 / $0.8800 Buy Now
DISTI # MCP1754T-5002E/DC
Avnet Americas LDO Regulator Pos 5V 0.15A 6-Pin(5+Tab) SOT-223 T/R - Tape and Reel (Alt: MCP1754T-5002E/DC) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 7 Weeks, 0 Days Container: Reel 0
  • 4,000 $0.7302
  • 8,000 $0.7186
  • 16,000 $0.7070
  • 24,000 $0.6954
  • 32,000 $0.6838
$0.6838 / $0.7302 Buy Now
DISTI # 579-MCP1754T5002EDC
Mouser Electronics LDO Voltage Regulators LDO RoHS: Compliant 8681
  • 1 $0.8800
  • 25 $0.7500
  • 100 $0.7250
$0.7250 / $0.8800 Buy Now
DISTI # MCP1754T-5002E/DC
Microchip Technology Inc 16V, High PSRR, 150mA LDO, Vout=5.0V, SOT-223, Projected EOL: 2039-10-26 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel 1230

Alternates Available
  • 1 $0.8800
  • 25 $0.7500
  • 100 $0.6800
  • 1,000 $0.6400
$0.6400 / $0.8800 Buy Now
DISTI # 70569777
RS Voltage Regulators, LDO, LDO, IC REG LDO 5V 0.15A SOT223 | Microchip Technology Inc. MCP1754T-5002E/... DC more RoHS: Not Compliant Min Qty: 4000 Package Multiple: 1 Lead time: 31 Weeks, 0 Days Container: Bulk 0
  • 4,000 $1.4800
  • 40,000 $1.4100
  • 200,000 $1.3300
  • 400,000 $1.2600
$1.2600 / $1.4800 RFQ
Future Electronics   RoHS: Compliant pbFree: Yes Min Qty: 4000 Package Multiple: 4000 0
  • 4,000 $0.7440
$0.7440 Buy Now
Onlinecomponents.com LDO Regulator Pos 5V 0.15A Automotive 6-Pin(5+Tab) SOT-223 T/R RoHS: Compliant 0
  • 1,000 $1.5080
  • 2,000 $0.9280
  • 3,000 $0.7350
  • 4,000 $0.7200
$0.7200 / $1.5080 Buy Now
NAC LDO - Package: 5 SOT-223 T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 0
  • 1 $0.8900
  • 100 $0.8100
  • 500 $0.7400
  • 1,000 $0.7200
$0.7200 / $0.8900 Buy Now
DISTI # MCP1754T-5002E/DC
Avnet Silica LDO Regulator Pos 5V 015A 6Pin5Tab SOT223 TR (Alt: MCP1754T-5002E/DC) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
Master Electronics LDO Regulator Pos 5V 0.15A Automotive 6-Pin(5+Tab) SOT-223 T/R RoHS: Compliant 0
  • 1,000 $1.5080
  • 2,000 $0.9280
  • 3,000 $0.7350
  • 4,000 $0.7200
$0.7200 / $1.5080 Buy Now

Part Details for MCP1754T-5002E/DC

MCP1754T-5002E/DC CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

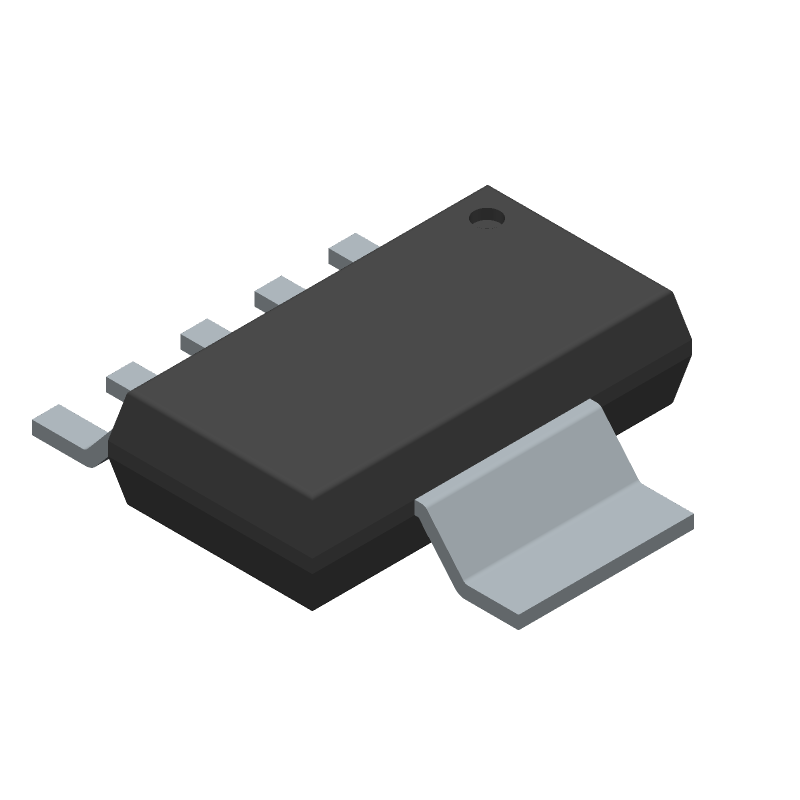

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCP1754T-5002E/DC Part Data Attributes

Parametric Data
MCP1754T-5002E/DC Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
MCP1754T-5002E/DC Microchip Technology Inc 5 V FIXED POSITIVE LDO REGULATOR, 0.5 V DROPOUT, PDSO5, PLASTIC, SOT-223, 5 PIN
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SOT-223
Pin Count 5
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 7 Weeks
Samacsys Manufacturer Microchip
Adjustability FIXED
Dropout Voltage1-Max 0.5 V
Dropout Voltage1-Nom 0.3 V
Input Voltage Absolute-Max 17.6 V
Input Voltage-Max 16 V
Input Voltage-Min 6 V
JESD-30 Code R-PDSO-G5
JESD-609 Code e3
Length 6.5 mm
Line Regulation-Max 0.025%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 5
Operating Temperature TJ-Max 150 °C
Operating Temperature TJ-Min -40 °C
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Current1-Max 0.15 A
Output Voltage1-Max 5.1 V
Output Voltage1-Min 4.9 V
Output Voltage1-Nom 5 V
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOT-223-5
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TR
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 1.8 mm
Surface Mount YES
Technology CMOS
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Voltage Tolerance-Max 2%
Width 3.5 mm

Alternate Parts for MCP1754T-5002E/DC

This table gives cross-reference parts and alternative options found for MCP1754T-5002E/DC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCP1754T-5002E/DC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MCP1754ST-5002E/CB Microchip Technology Inc $0.6117 5 V FIXED POSITIVE LDO REGULATOR, 0.5 V DROPOUT, PDSO3, PLASTIC, SOT-23A, 3 PIN MCP1754T-5002E/DC vs MCP1754ST-5002E/CB
MCP1754ST-5002E/MB Microchip Technology Inc $0.6833 5 V FIXED POSITIVE LDO REGULATOR, 0.5 V DROPOUT, PSSO3, PLASTIC, SOT-89, 3 PIN MCP1754T-5002E/DC vs MCP1754ST-5002E/MB
MCP1754T-5002E/OT Microchip Technology Inc $0.5425 5 V FIXED POSITIVE LDO REGULATOR, 0.5 V DROPOUT, PDSO5, 2 X 3 MM, PLASTIC, SOT-23, 5 PIN MCP1754T-5002E/DC vs MCP1754T-5002E/OT
MCP1754T-5002E/MC Microchip Technology Inc Check for Price 5 V FIXED POSITIVE LDO REGULATOR, 0.5 V DROPOUT, PDSO8, 2 X 3 MM, 0.90 MM HEIGHT, PLASTIC, DFN-8 MCP1754T-5002E/DC vs MCP1754T-5002E/MC
MCP1754ST-5002E/DB Microchip Technology Inc $0.7940 5 V FIXED POSITIVE LDO REGULATOR, 0.5 V DROPOUT, PDSO3, PLASTIC, SOT-223, 4 PIN MCP1754T-5002E/DC vs MCP1754ST-5002E/DB

MCP1754T-5002E/DC Related Parts

MCP1754T-5002E/DC Frequently Asked Questions (FAQ)

  • The maximum input voltage that can be applied to the MCP1754T-5002E/DC is 6V, although the recommended operating voltage range is 2.7V to 5.5V.

  • To ensure the output voltage of the MCP1754T-5002E/DC is stable and accurate, it is recommended to use a high-quality input capacitor (e.g., X5R or X7R dielectric) with a value of at least 1uF, and to keep the input voltage ripple below 100mV.

  • The MCP1754T-5002E/DC can maintain regulation with a minimum load current of 1mA, although it is recommended to have a minimum load current of 10mA for optimal performance.

  • The MCP1754T-5002E/DC is rated for operation up to 125°C, but it is recommended to derate the output current and input voltage at high temperatures to ensure reliable operation.

  • To protect the MCP1754T-5002E/DC from input voltage transients and surges, it is recommended to use a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input, and to ensure that the input capacitor is rated for the maximum expected input voltage.
