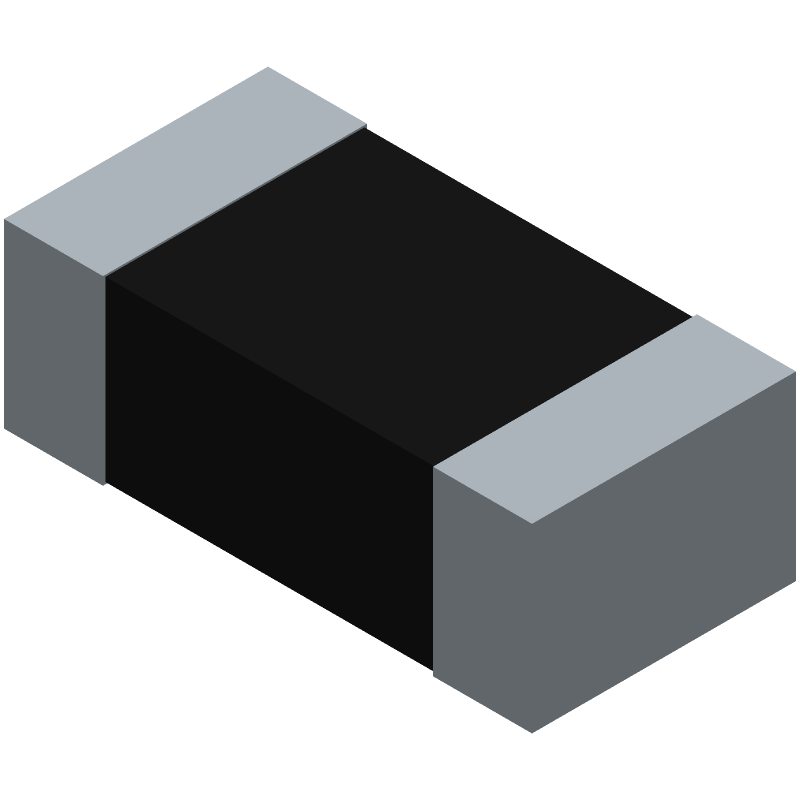

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCMR06X4322FTL by SPC Multicomp
Results Overview of MCMR06X4322FTL by SPC Multicomp
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Industrial Automation
MCMR06X4322FTL Information
MCMR06X4322FTL by SPC Multicomp is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MCMR06X4322FTL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
86T3643
|
Newark | Surface Mount Thick Film Resistor, Mcmr Series, 43.2 Kohm, 100 Mw, - 1%, 75 V Rohs Compliant: Yes |M... more RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 4688 |
|
$0.0200 / $0.0500 | Buy Now |
Part Details for MCMR06X4322FTL
MCMR06X4322FTL CAD Models
MCMR06X4322FTL Part Data Attributes
|
|
MCMR06X4322FTL
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
MCMR06X4322FTL
SPC Multicomp
RESISTOR, 0.1W, 1%, 100ppm, 43200ohm, SURFACE MOUNT, 0603, CHIP, ROHS COMPLIANT
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Package Description | CHIP, ROHS COMPLIANT | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Multicomp Pro | |
| Additional Feature | LASER TRIMMABLE, RATED AC VOLTAGE (V): 75 | |
| JESD-609 Code | e3 | |
| Manufacturer Series | MCMR06 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 43200 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0603 | |
| Surface Mount | YES | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | Tin (Sn) | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 75 V |
