MCMF0W2FF1002A10 by: SPC Multicomp

Fixed Resistor, Metal Film, 0.5W, 10000ohm, 350V, 1% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED

Part Details for MCMF0W2FF1002A10 by SPC Multicomp

Results Overview of MCMF0W2FF1002A10 by SPC Multicomp

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MCMF0W2FF1002A10 Information

MCMF0W2FF1002A10 by SPC Multicomp is a Metal Film Resistor.
Metal Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for MCMF0W2FF1002A10

Part # Distributor Description Stock Price Buy
DISTI # 58K3725
Newark Metal Film Resistor, 10Kohm, 500Mw, 1%, Resistance:10Kohm, Product Range:Mcmf Series, Power Ratin... g:500Mw, Resistance Tolerance:± 1%, Resistor Case/Package:Axial Leaded, Voltage Rating:350V, Resistor Technology:Metal Film Rohs Compliant: Yes |Multicomp Pro MCMF0W2FF1002A10 more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Ammo Pack 2874
  • 1 $0.3240
  • 10 $0.1920
  • 100 $0.1150
  • 500 $0.0670
$0.0670 / $0.3240 Buy Now

Part Details for MCMF0W2FF1002A10

MCMF0W2FF1002A10 CAD Models

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCMF0W2FF1002A10 Part Data Attributes

Parametric Data
MCMF0W2FF1002A10 SPC Multicomp
Buy Now Datasheet
Compare Parts:

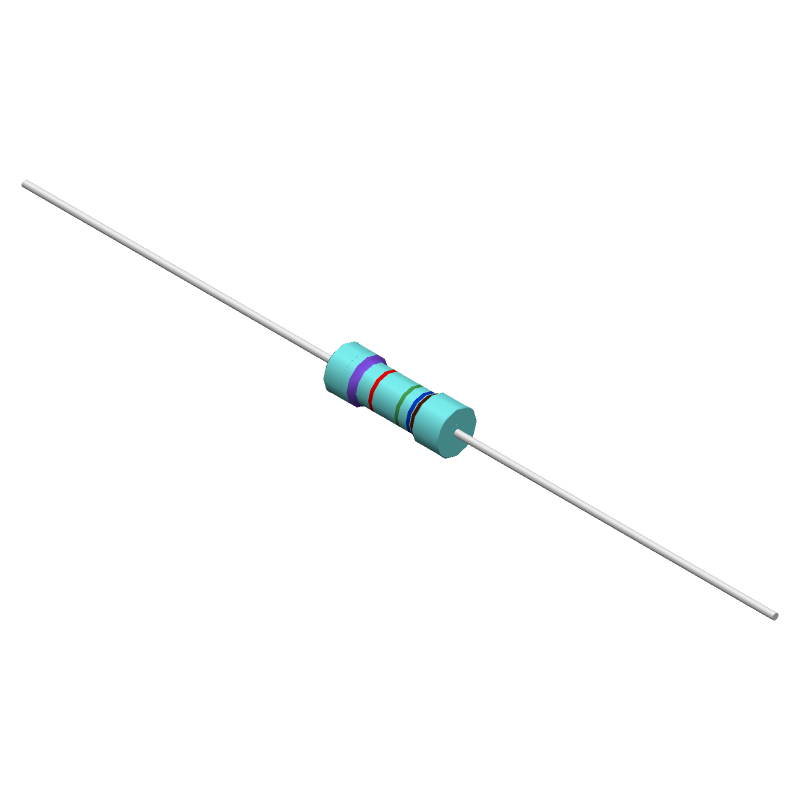

MCMF0W2FF1002A10 SPC Multicomp Fixed Resistor, Metal Film, 0.5W, 10000ohm, 350V, 1% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MULTICOMP PRO
Package Description AXIAL LEADED
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8533.21.00.90
Samacsys Manufacturer Multicomp Pro
Additional Feature PRECISION
JESD-609 Code e3
Mounting Feature THROUGH HOLE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Diameter 3.6 mm
Package Length 10 mm
Package Shape TUBULAR PACKAGE
Package Style Axial
Rated Power Dissipation (P) 0.5 W
Rated Temperature 70 °C
Resistance 10000 Ω
Resistor Type FIXED RESISTOR
Surface Mount NO
Technology METAL FILM
Temperature Coefficient 50 ppm/°C
Terminal Finish TIN
Terminal Shape WIRE
Tolerance 1%
Working Voltage 350 V
