MCHP03W8F4701T5E by: SPC Multicomp

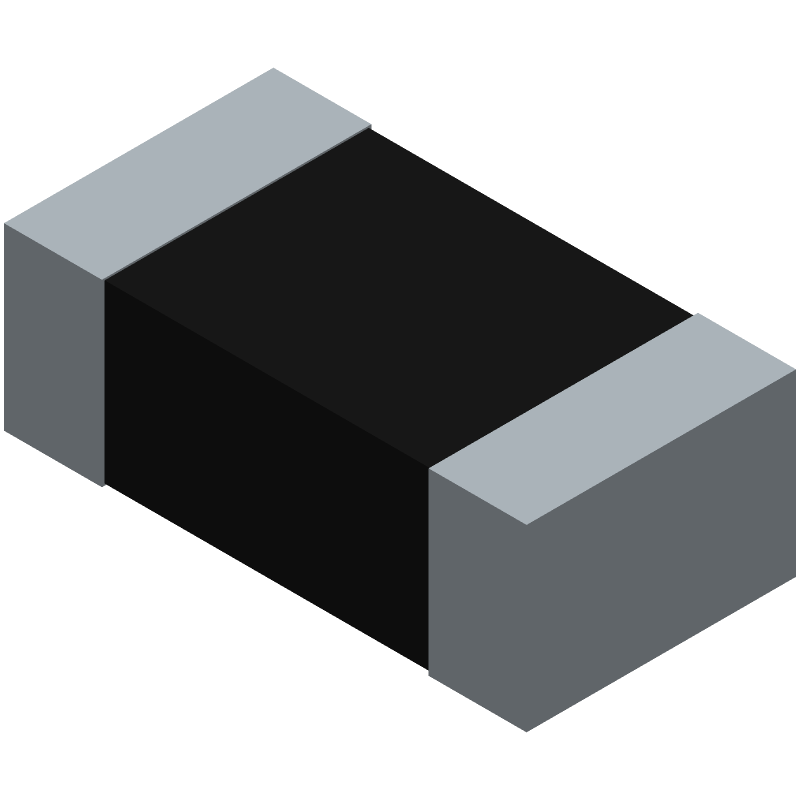

Fixed Resistor, Metal Glaze/thick Film, 0.125W, 4700ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP

Part Details for MCHP03W8F4701T5E by SPC Multicomp

Results Overview of MCHP03W8F4701T5E by SPC Multicomp

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Industrial Automation Electronic Manufacturing

MCHP03W8F4701T5E Information

MCHP03W8F4701T5E by SPC Multicomp is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for MCHP03W8F4701T5E

Part # Distributor Description Stock Price Buy
DISTI # 01N6891
Newark Res, Thick Film, 4K7, 1%, 0.125W, 0603, Resistance:4.7Kohm, Resistance Tolerance:± 1%, Power Rati... ng:125Mw, Resistor Case/Package:0603 [1608 Metric], Resistor Technology:Thick Film, Resistor Type:High Power, Product Range:- Rohs Compliant: Yes |Multicomp Pro MCHP03W8F4701T5E more RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1 $0.1250
  • 50 $0.0950
  • 100 $0.0870
  • 500 $0.0610
  • 1,000 $0.0540
  • 2,000 $0.0510
  • 5,000 $0.0500
  • 10,000 $0.0490
$0.0490 / $0.1250 Buy Now
Bristol Electronics   1703
RFQ

Part Details for MCHP03W8F4701T5E

MCHP03W8F4701T5E CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCHP03W8F4701T5E Part Data Attributes

Parametric Data
MCHP03W8F4701T5E SPC Multicomp
Buy Now Datasheet
Compare Parts:
MCHP03W8F4701T5E SPC Multicomp Fixed Resistor, Metal Glaze/thick Film, 0.125W, 4700ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer MULTICOMP PRO
Package Description CHIP
Reach Compliance Code unknown
Samacsys Manufacturer Multicomp Pro
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.45 mm
Package Length 1.6 mm
Package Style SMT
Package Width 0.8 mm
Rated Power Dissipation (P) 0.125 W
Rated Temperature 70 °C
Resistance 4700 Ω
Resistor Type FIXED RESISTOR
Size Code 0603
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 50 V

Alternate Parts for MCHP03W8F4701T5E

This table gives cross-reference parts and alternative options found for MCHP03W8F4701T5E. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCHP03W8F4701T5E, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CRS0603AFX-4701ELF Bourns Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 4700ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP MCHP03W8F4701T5E vs CRS0603AFX-4701ELF
RK73H1JGTPD4701F KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 4700ohm, 50V, 1% +/-Tol, -100,100ppm/Cel, 0603, MCHP03W8F4701T5E vs RK73H1JGTPD4701F
RC0603FR-074K7 YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 4700ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, HALOGEN FREE EPOXY AND ROHS COMPLIANT MCHP03W8F4701T5E vs RC0603FR-074K7
NRCL06F4701TRF NIC Components Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 4700ohm, 50V, 1% +/-Tol, -100,100ppm/Cel, 0603 MCHP03W8F4701T5E vs NRCL06F4701TRF
RK73H1JLBC4701F KOA Speer Electronics Inc Check for Price RESISTOR, METAL GLAZE/THICK FILM, 0.1W, 1%, 100ppm, 4700ohm, SURFACE MOUNT, 0603, CHIP MCHP03W8F4701T5E vs RK73H1JLBC4701F
WR06X4701FB Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 4700ohm, 50V, 1% +/-Tol, -100,100ppm/Cel, 0603 MCHP03W8F4701T5E vs WR06X4701FB
RPC0603FT4K70 SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 4700ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT MCHP03W8F4701T5E vs RPC0603FT4K70
RC0603FRF104K7 YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 4700ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP MCHP03W8F4701T5E vs RC0603FRF104K7
RC0603FRF134K7 YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 4700ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP MCHP03W8F4701T5E vs RC0603FRF134K7
RMC1/16K4701FTH Kamaya Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 4700ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT MCHP03W8F4701T5E vs RMC1/16K4701FTH
