Capacitors / Fixed Capacitors / MCESL35V475M4X5.2
Datasheets
MCESL35V475M4X5.2 by: SPC Multicomp

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 4.7uF, Surface Mount, 1717, CHIP

Part Details for MCESL35V475M4X5.2 by SPC Multicomp

Results Overview of MCESL35V475M4X5.2 by SPC Multicomp

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MCESL35V475M4X5.2 Information

MCESL35V475M4X5.2 by SPC Multicomp is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for MCESL35V475M4X5.2

Part # Distributor Description Stock Price Buy
DISTI # 97K4384
Newark Aluminum Electrolytic Capacitor 4.7Uf 50V 20%, Smd, Capacitor Case/Package:Radial Can - Smd, Capac... itance:4.7Μf, Voltage(Dc):50V, Esr:-, Lifetime @ Temperature:2000 Hours @ 85°C, Polarity:Polar, Product Range:Mcesl Series Rohs Compliant: Yes |Multicomp Pro MCESL35V475M4X5.2 more RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 21527
  • 10 $0.2210
  • 25 $0.1480
  • 50 $0.1300
$0.1300 / $0.2210 Buy Now

Part Details for MCESL35V475M4X5.2

MCESL35V475M4X5.2 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

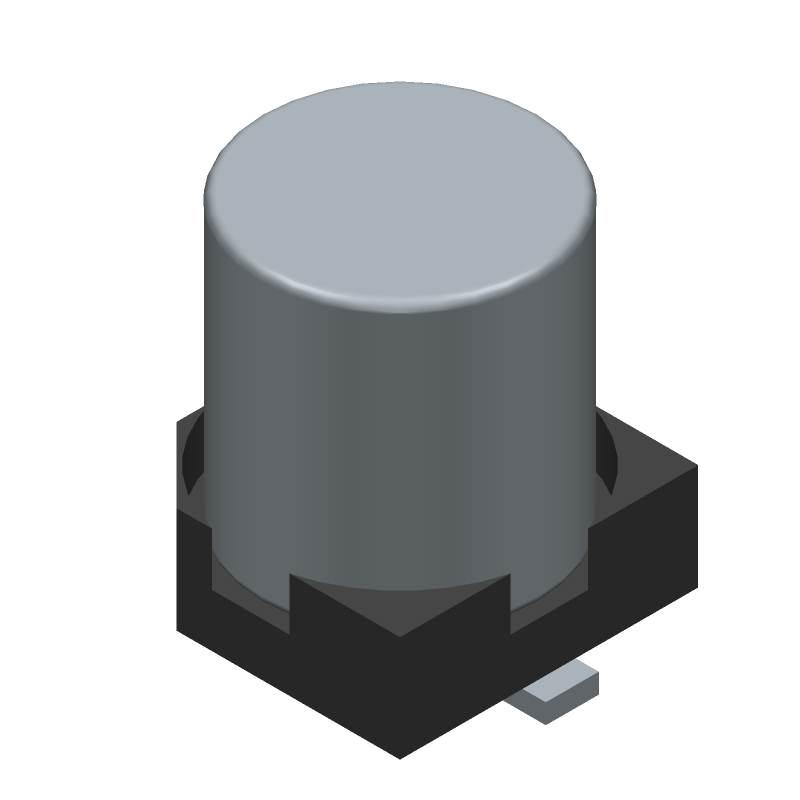

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCESL35V475M4X5.2 Part Data Attributes

Parametric Data
MCESL35V475M4X5.2 SPC Multicomp
Buy Now Datasheet
Compare Parts:
MCESL35V475M4X5.2 SPC Multicomp Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 4.7uF, Surface Mount, 1717, CHIP
Select a part to compare:
Part Life Cycle Code Active
Ihs Manufacturer MULTICOMP PRO
Package Description CHIP
Reach Compliance Code unknown
Samacsys Manufacturer Multicomp Pro
Capacitance 4.7 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Dielectric Material ALUMINUM (WET)
Height 5.2 mm
Leakage Current 0.003 mA
Length 4.3 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Shape CYLINDRICAL PACKAGE
Package Style SMT
Packing Method TAPE
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 35 V
Ripple Current 18 mA
Size Code 1717
Surface Mount YES
Tan Delta 0.12
Terminal Shape FLAT
Width 4.3 mm

Alternate Parts for MCESL35V475M4X5.2

This table gives cross-reference parts and alternative options found for MCESL35V475M4X5.2. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCESL35V475M4X5.2, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
EMAR350ARA4R7MD55G Chemi-Con Check for Price Aluminum Electrolytic Capacitor, MCESL35V475M4X5.2 vs EMAR350ARA4R7MD55G
EMVA350ARA4R7MD55G Chemi-Con Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 4.7uF, 2017, MCESL35V475M4X5.2 vs EMVA350ARA4R7MD55G
EMVA350ADA4R7MD55G Chemi-Con Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 4.7uF, Surface Mount, 1717, ROHS COMPLIANT MCESL35V475M4X5.2 vs EMVA350ADA4R7MD55G
