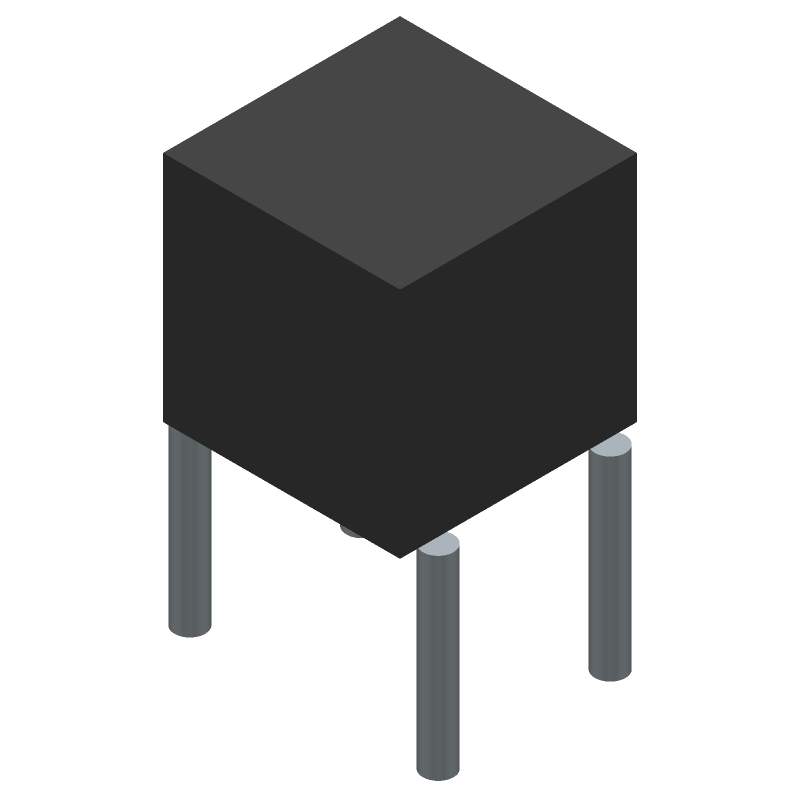

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCDTS6-1K by SPC Multicomp
Results Overview of MCDTS6-1K by SPC Multicomp
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Healthcare
Medical Imaging
MCDTS6-1K Information
MCDTS6-1K by SPC Multicomp is a Keypad Switch.
Keypad Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for MCDTS6-1K
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26M1121
|
Newark | Switch, Tactile Spst-No 50Ma, Solder Lug, Product Range:Mcdts6 Series, Actuator Orientation:Top Ac... more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 2326 |
|
$0.1440 / $0.2040 | Buy Now |
Part Details for MCDTS6-1K
MCDTS6-1K CAD Models
MCDTS6-1K Part Data Attributes
|
|
MCDTS6-1K
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
MCDTS6-1K
SPC Multicomp
Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 0.98N, Solder Terminal, Through Hole-straight,
Select a part to compare: |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.40 | |
| Samacsys Manufacturer | Multicomp Pro | |
| Actuator Type | DOME TYPE | |
| Body Breadth | 6.2 mm | |
| Body Height | 3.5 mm | |
| Body Length or Diameter | 6.2 mm | |
| Circuit Configuration | 1X1 | |
| Contact Current(DC)-Max | 0.05 A | |
| Contact (DC) Max Rating R Load | .05A@12VDC | |
| Contact Voltage(DC)-Max | 12 V | |
| Electrical Life | 200000 Cycle(s) | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Number of Switches | 1 | |
| Operating Force-Max | 0.98 N | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -25 °C | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPST | |
| Switch Type | KEYPAD SWITCH | |
| Termination Type | SOLDER |
Alternate Parts for MCDTS6-1K
This table gives cross-reference parts and alternative options found for MCDTS6-1K. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCDTS6-1K, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TL6700F260QG | E-Switch Inc | Check for Price | Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 3.04N, Solder Terminal, Surface Mount-straight | MCDTS6-1K vs TL6700F260QG |
| SWT6-V5KD | TT electronics / BI Technologies | Check for Price | KEYPAD SWITCH, SPST, MOMENTARY-TACTILE, 0.05A, 12VDC, 0.98N, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT | MCDTS6-1K vs SWT6-V5KD |
| SWT6-M2KTR | TT electronics / BI Technologies | Check for Price | KEYPAD SWITCH, SPST, MOMENTARY-TACTILE, 0.05A, 12VDC, 0.98N, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT | MCDTS6-1K vs SWT6-M2KTR |
| PTS645VL39SMLFS | C&K | Check for Price | KEYPAD SWITCH, SPST, MOMENTARY-TACTILE, 0.05A, 12VDC, 1.27N, SURFACE MOUNT-RIGHT ANGLE, ROHS COMPLIANT | MCDTS6-1K vs PTS645VL39SMLFS |
| SDTM630S | Bourns Inc | Check for Price | Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 3.14N, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT | MCDTS6-1K vs SDTM630S |
| SWT8-R1N | TT electronics / BI Technologies | Check for Price | KEYPAD SWITCH, SPST, MOMENTARY-TACTILE, 0.05A, 12VDC, 1.57N, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT | MCDTS6-1K vs SWT8-R1N |
| FSM4JART | TE Connectivity | Check for Price | Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 24VDC, 2.548N, Solder Terminal, Panel Mount | MCDTS6-1K vs FSM4JART |
| TL1105AF160Q | E-Switch Inc | $0.2867 | Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.06N, Solder Terminal, Through Hole-straight | MCDTS6-1K vs TL1105AF160Q |
| SDTG-230-R | Bourns Inc | Check for Price | Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 3.04N, Solder Terminal, Through Hole-straight, ROHS COMPLIANT | MCDTS6-1K vs SDTG-230-R |
| TL1270F250WHQAT | E-Switch Inc | Check for Price | Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.45N, Solder Terminal, Through Hole-right Angle, ROHS COMPLIANT | MCDTS6-1K vs TL1270F250WHQAT |
MCDTS6-1K Frequently Asked Questions (FAQ)
-
The recommended storage temperature for MCDTS6-1K is -40°C to 125°C.
-
Yes, the MCDTS6-1K is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
-
The operating temperature range for the MCDTS6-1K is -40°C to 150°C.
-
Yes, the MCDTS6-1K is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial control systems, automotive systems, and more.
-
The typical lead time for MCDTS6-1K delivery varies depending on the supplier and the quantity ordered. However, it is usually around 2-4 weeks.
