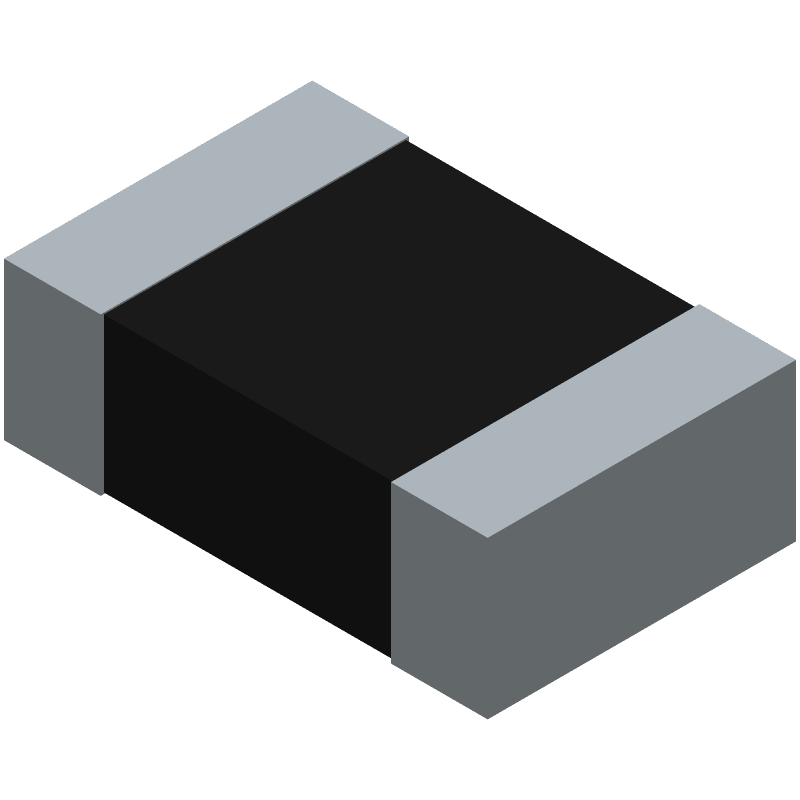

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC0805S8F2201T5E by SPC Multicomp
Results Overview of MC0805S8F2201T5E by SPC Multicomp
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Computing and Data Storage
Electronic Manufacturing
MC0805S8F2201T5E Information
MC0805S8F2201T5E by SPC Multicomp is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MC0805S8F2201T5E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
79M6054
|
Newark | Res, Thick Film, 2K2, 1%, 0.125W, 0805, Resistance:2.2Kohm, Resistance Tolerance:± 1%, Power Rati... more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 18326 |
|
$0.0230 / $0.1000 | Buy Now |
Part Details for MC0805S8F2201T5E
MC0805S8F2201T5E CAD Models
MC0805S8F2201T5E Part Data Attributes
|
|
MC0805S8F2201T5E
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
MC0805S8F2201T5E
SPC Multicomp
Fixed Resistor, Metal Glaze/thick Film, 0.125W, 2200ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Package Description | CHIP | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Multicomp Pro | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.55 mm | |
| Package Length | 2 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 1.25 mm | |
| Packing Method | TR | |
| Rated Power Dissipation (P) | 0.125 W | |
| Rated Temperature | 70 °C | |
| Resistance | 2200 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 150 V |
Alternate Parts for MC0805S8F2201T5E
This table gives cross-reference parts and alternative options found for MC0805S8F2201T5E. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC0805S8F2201T5E, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| RC2012F2201CS | Samsung Electro-Mechanics | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.125W, 2200ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP | MC0805S8F2201T5E vs RC2012F2201CS |
| RMC1/10K2201FB | Kamaya Inc | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.125W, 2200ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT | MC0805S8F2201T5E vs RMC1/10K2201FB |
| TRR10EZPF2201 | ROHM Semiconductor | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.125W, 2200ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP | MC0805S8F2201T5E vs TRR10EZPF2201 |
| MC0.1W08051%2K2FR | SPC Multicomp | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 2200ohm, 150V, 1% +/-Tol, -100,100ppm/Cel, 0805, | MC0805S8F2201T5E vs MC0.1W08051%2K2FR |
| MCR10EZHF2201 | ROHM Semiconductor | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.125W, 2200ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP | MC0805S8F2201T5E vs MCR10EZHF2201 |
| MP003630 | SPC Multicomp | $0.0015 | Fixed Resistor, Metal Glaze/thick Film, 0.125W, 2200ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP | MC0805S8F2201T5E vs MP003630 |
| WCR0805-2K2FI | TT Electronics Welwyn Components | $0.0343 | RESISTOR, 0.125W, 1%, 100ppm, 2200ohm, SURFACE MOUNT, 0805, CHIP | MC0805S8F2201T5E vs WCR0805-2K2FI |
| MC01W080512K2 | SPC Multicomp | $0.0359 | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 2200ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP | MC0805S8F2201T5E vs MC01W080512K2 |
| WCR0805-2K2FI | TT Electronics Resistors | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.125W, 2200ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP | MC0805S8F2201T5E vs WCR0805-2K2FI |
| RMC1/10K222FTP | Kamaya Inc | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.125W, 2200ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP | MC0805S8F2201T5E vs RMC1/10K222FTP |
MC0805S8F2201T5E Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the MC0805S8F2201T5E is between 250°C to 260°C for a maximum of 3 seconds.
-
Yes, the MC0805S8F2201T5E is a high-frequency capacitor with a self-resonant frequency of around 100 MHz, making it suitable for high-frequency applications.
-
The maximum operating temperature range for the MC0805S8F2201T5E is -55°C to +125°C.
-
Yes, the MC0805S8F2201T5E is RoHS compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
-
The ESR of the MC0805S8F2201T5E is around 0.1 ohms at 100 kHz.
