Capacitors / Ceramic Capacitors / MC0603B821K500CT
Datasheets
MC0603B821K500CT by: SPC Multicomp

CAP,CERAMIC,820PF,50VDC,10% -TOL,10% +TOL,X7R TC CODE,-15,15% TC,0603 CASE

Part Details for MC0603B821K500CT by SPC Multicomp

Results Overview of MC0603B821K500CT by SPC Multicomp

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation

MC0603B821K500CT Information

MC0603B821K500CT by SPC Multicomp is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for MC0603B821K500CT

Part # Distributor Description Stock Price Buy
DISTI # 06R5056
Newark Ceramic Capacitor, 820Pf, 50V, X7R, 10%, 0603, Capacitance:820Pf, Voltage Rating:50V, Ceramic Cap... acitor Case:0603 [1608 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:Mc Series, Msl:- Rohs Compliant: Yes |Multicomp Pro MC0603B821K500CT more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 5205
  • 1 $0.0020
  • 10 $0.0020
  • 50 $0.0020
  • 100 $0.0020
  • 250 $0.0020
  • 500 $0.0020
  • 1,000 $0.0020
$0.0020 Buy Now
DISTI # 03AC3179
Newark Cap, 820Pf, 50V, 10%, X7R, 0603, Reel, Capacitance:820Pf, Voltage Rating:50V, Ceramic Capacitor C... ase:0603 [1608 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:Mc Series, Operating Temperature Rohs Compliant: Yes |Multicomp Pro MC0603B821K500CT more RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 1,000 $0.0090
  • 5,000 $0.0080
$0.0080 / $0.0090 Buy Now

Part Details for MC0603B821K500CT

MC0603B821K500CT CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

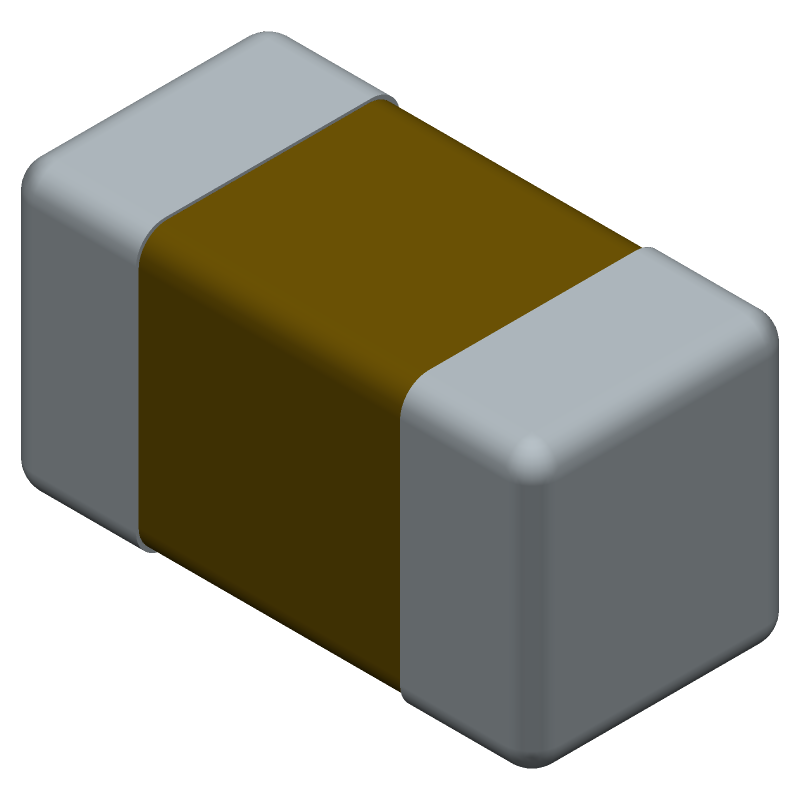

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MC0603B821K500CT Part Data Attributes

Parametric Data
MC0603B821K500CT SPC Multicomp
Buy Now Datasheet
Compare Parts:
MC0603B821K500CT SPC Multicomp CAP,CERAMIC,820PF,50VDC,10% -TOL,10% +TOL,X7R TC CODE,-15,15% TC,0603 CASE
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MULTICOMP PRO
Reach Compliance Code unknown
ECCN Code EAR99
Samacsys Manufacturer Multicomp Pro
Capacitance 0.00082 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
JESD-609 Code e3
Length 1.6 mm
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Style SMT
Packing Method TR
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 50 V
Size Code 0603
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish TIN OVER NICKEL
Width 0.8 mm

Alternate Parts for MC0603B821K500CT

This table gives cross-reference parts and alternative options found for MC0603B821K500CT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC0603B821K500CT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
0603Y821KAHVD04MLS SRT Micro Ceramique Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.00082uF, Surface Mount, 0603, CHIP MC0603B821K500CT vs 0603Y821KAHVD04MLS
CL10B821KBCS Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.00082uF, 0603, MC0603B821K500CT vs CL10B821KBCS
CL10B821KBAL Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.00082uF, 0603, MC0603B821K500CT vs CL10B821KBAL
0603Y0500821KDR Syfer Technology Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.00082uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT MC0603B821K500CT vs 0603Y0500821KDR
CL10B821KBCF Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.00082uF, 0603, MC0603B821K500CT vs CL10B821KBCF
CL10B821KBAD Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.00082uF, 0603, MC0603B821K500CT vs CL10B821KBAD
0603Y821KAHW SRT Micro Ceramique Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.00082uF, Surface Mount, 0603, CHIP MC0603B821K500CT vs 0603Y821KAHW
0603Y0500821KDT Syfer Technology Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.00082uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT MC0603B821K500CT vs 0603Y0500821KDT
CL10B821KBBL Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.00082uF, 0603, MC0603B821K500CT vs CL10B821KBBL
0603F0500821KDR Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.00082uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT MC0603B821K500CT vs 0603F0500821KDR

MC0603B821K500CT Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the MC0603B821K500CT is between 260°C to 280°C for a maximum of 10 seconds.

  • Yes, the MC0603B821K500CT is a high-frequency capacitor with a self-resonant frequency of around 10 GHz, making it suitable for high-frequency applications.

  • The maximum operating voltage derating for the MC0603B821K500CT is 80% of the rated voltage, which is 400V in this case.

  • The MC0603B821K500CT has a moisture sensitivity level of 3, which means it can withstand normal humidity levels. However, it's recommended to follow the manufacturer's guidelines for humid environments.

  • The ESR of the MC0603B821K500CT is around 50 mΩ at 100 kHz, which is relatively low and suitable for most applications.
