Resistors / Metal Film Resistors / MBB0207CC3092FC100
Datasheets
MBB0207CC3092FC100 by:
Vishay Intertechnologies
Vishay Beyschlag
Vishay Intertechnologies
Not Found

Fixed Resistor, Metal Film, 0.6W, 30900ohm, 350V, 1% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED

Part Details for MBB0207CC3092FC100 by Vishay Intertechnologies

Results Overview of MBB0207CC3092FC100 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Telecommunications Automotive

MBB0207CC3092FC100 Information

MBB0207CC3092FC100 by Vishay Intertechnologies is a Metal Film Resistor.
Metal Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for MBB0207CC3092FC100

Part # Distributor Description Stock Price Buy
DISTI # 53R6378
Newark Mbb/Sma 0207-50 1% Vg06 C1 30K9 |Vishay MBB0207CC3092FC100 RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1,000 $0.4770
  • 2,500 $0.4610
$0.4610 / $0.4770 Buy Now
DISTI # MBB0207CC3092FC100
Avnet Americas MBB/SMA 0207-50 1% VG06 C1 30K9 (Alt: MBB0207CC3092FC100) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 5 Weeks, 0 Days 0
  • 1,000 $0.4814
  • 2,000 $0.4724
  • 4,000 $0.4665
  • 6,000 $0.4581
  • 8,000 $0.4446
$0.4446 / $0.4814 Buy Now
DISTI # 594-MBB0207CC3092FC1
Mouser Electronics Metal Film Resistors - Through Hole MBB/SMA 0207-50 1% VG06 C1 30K9 0
  • 1 $2.0700
  • 10 $1.2200
  • 25 $1.0900
  • 50 $0.9930
  • 100 $0.8590
  • 250 $0.7260
  • 500 $0.6110
  • 1,000 $0.4890
$0.4890 / $2.0700 Order Now

Part Details for MBB0207CC3092FC100

MBB0207CC3092FC100 CAD Models

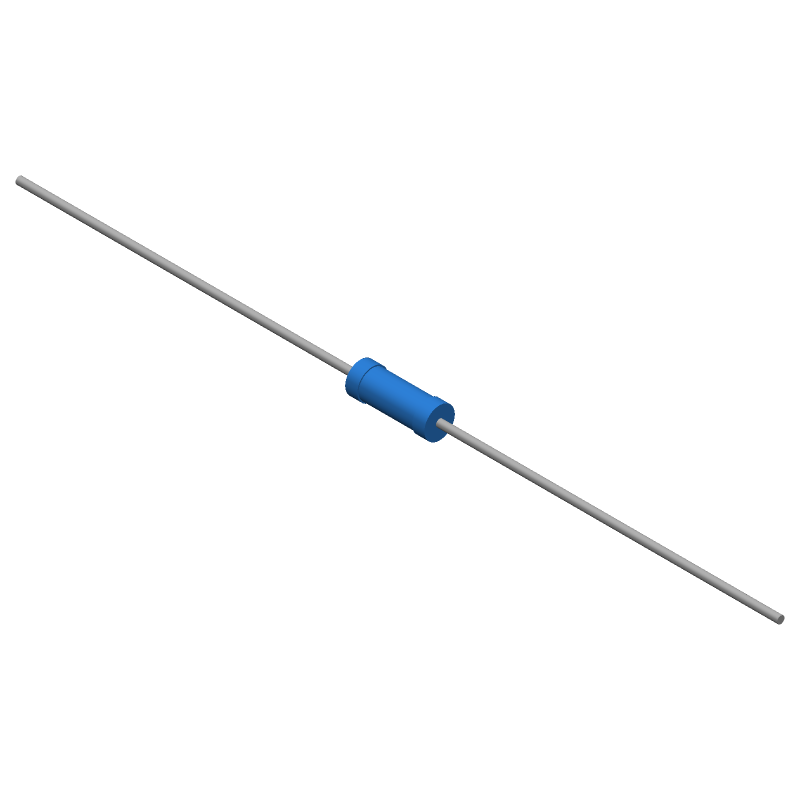

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MBB0207CC3092FC100 Part Data Attributes

Parametric Data
MBB0207CC3092FC100 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
MBB0207CC3092FC100 Vishay Intertechnologies Fixed Resistor, Metal Film, 0.6W, 30900ohm, 350V, 1% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description AXIAL LEADED
Reach Compliance Code compliant
Factory Lead Time 5 Weeks
Samacsys Manufacturer Vishay
Additional Feature ANTI-SULFUR, PRECISION
Construction Cylindrical
JESD-609 Code e3
Lead Diameter 0.6 mm
Lead Length 28 mm
Mounting Feature THROUGH HOLE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Diameter 2.5 mm
Package Length 6.3 mm
Package Shape TUBULAR PACKAGE
Package Style Axial
Packing Method Ammo Pack
Rated Power Dissipation (P) 0.6 W
Rated Temperature 70 °C
Resistance 30900 Ω
Resistor Type FIXED RESISTOR
Surface Mount NO
Technology METAL FILM
Temperature Coefficient 50 ppm/°C
Terminal Finish TIN
Terminal Shape WIRE
Tolerance 1%
Working Voltage 350 V

Alternate Parts for MBB0207CC3092FC100

This table gives cross-reference parts and alternative options found for MBB0207CC3092FC100. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MBB0207CC3092FC100, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MBB0207CC3092FC100 Vishay Beyschlag Check for Price RESISTOR, THIN FILM, 0.6 W, 1 %, 50 ppm, 30900 ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT MBB0207CC3092FC100 vs MBB0207CC3092FC100
