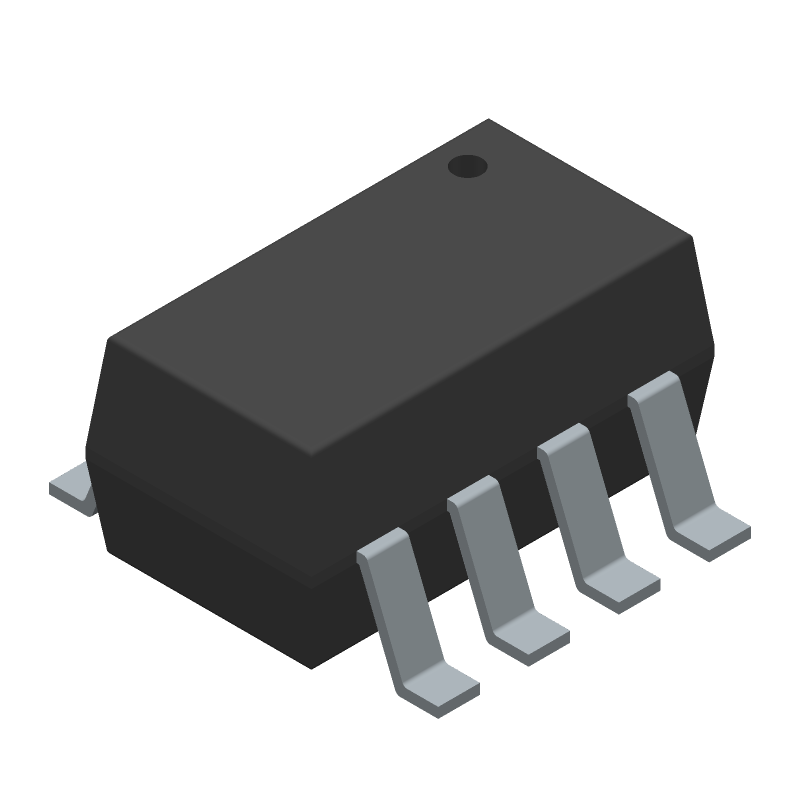

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX7044AKA+ by Analog Devices Inc
Results Overview of MAX7044AKA+ by Analog Devices Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
MAX7044AKA+ Information
MAX7044AKA+ by Analog Devices Inc is an Other Telecom IC.
Other Telecom ICs are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for MAX7044AKA+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Analog Devices Inc | 300MHz to 450MHz High-Efficien Package Multiple: 1 | 45089 |
|
Buy Now |
Part Details for MAX7044AKA+
MAX7044AKA+ CAD Models
MAX7044AKA+ Part Data Attributes
|
|
MAX7044AKA+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX7044AKA+
Analog Devices Inc
300MHz to 450MHz High-Efficiency, Crystal-Based +13dBm ASK Transmitter, 8-SOT_23-N/A, 8 Pins, -40 to 125C
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 8-SOT_23-N/A | |
| Package Description | ROHS COMPLIANT, SOT-23, 8 PIN | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-SOT_23-N/A | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2004-02-16 | |
| Samacsys Manufacturer | Analog Devices | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.45 mm | |
| Supply Voltage-Nom | 2.7 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Telecom IC Type | TELECOM CIRCUIT | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.625 mm |
Alternate Parts for MAX7044AKA+
This table gives cross-reference parts and alternative options found for MAX7044AKA+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX7044AKA+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX7044AKA+T | Analog Devices Inc | $3.2294 | 300MHz to 450MHz High-Efficiency, Crystal-Based +13dBm ASK Transmitter, 8-SOT_23-N/A, 8 Pins, -40 to 125C | MAX7044AKA+ vs MAX7044AKA+T |
| MAX7044AKA-T | Maxim Integrated Products | Check for Price | Telecom Circuit, 1-Func, CMOS, PDSO8, 3 X 3 MM, SOT-23, 8 PIN | MAX7044AKA+ vs MAX7044AKA-T |
| MAX7044AKA+T | Maxim Integrated Products | Check for Price | Telecom Circuit, 1-Func, CMOS, PDSO8, SOT-23, 8 PIN | MAX7044AKA+ vs MAX7044AKA+T |
