Part Details for MAX6741XKLTD3+T by Analog Devices Inc
Results Overview of MAX6741XKLTD3+T by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Financial Technology (Fintech)
Renewable Energy
Automotive
MAX6741XKLTD3+T Information
MAX6741XKLTD3+T by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX6741XKLTD3+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX6741XKLTD3+T
|
Mouser Electronics | Supervisory Circuits Low-Power Dual-/Triple-Voltage SC70 P Supervisory Circuits RoHS: Compliant | 0 |
|
$2.6500 | Order Now |
|
|
Analog Devices Inc | Low-Power Dual-/Triple-Voltage Min Qty: 2500 Package Multiple: 1 | 32500 |
|
$2.1200 / $2.6500 | Buy Now |
Part Details for MAX6741XKLTD3+T
MAX6741XKLTD3+T CAD Models
MAX6741XKLTD3+T Part Data Attributes
|
|
MAX6741XKLTD3+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX6741XKLTD3+T
Analog Devices Inc

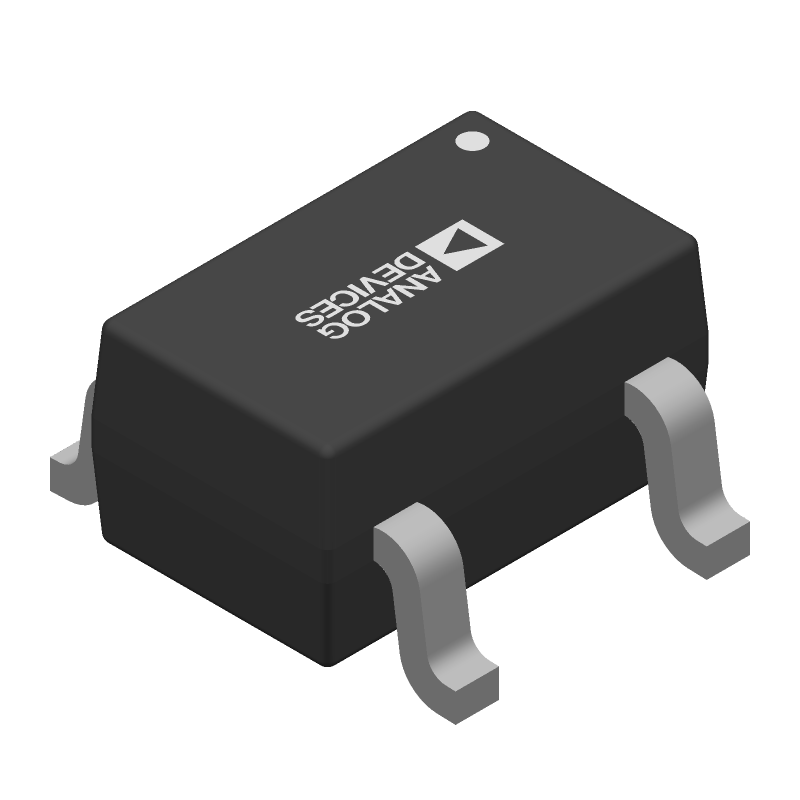

Low-Power Dual-/Triple-Voltage SC70 µP Supervisory Circuits, 5-SC70-N/A, 5 Pins, -40 to 85C
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 5-SC70-N/A | |
| Package Description | LEAD FREE, EIAJ, SC-70, 5 PIN | |
| Pin Count | 5 | |
| Manufacturer Package Code | 5-SC70-N/A | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2002-10-22 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N | |
| Adjustable Threshold | YES | |
| Analog IC - Other Type | VOLTAGE SUPERVISOR/RESET IC | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.2 V | |
| Supply Voltage-Nom (Vsup) | 1.8 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Threshold Voltage-Nom | +4.625V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 mm |
