Power Circuits / Power Management Circuits / MAX6425UK16+T
Datasheets
MAX6425UK16+T by:
Analog Devices Inc
Analog Devices Inc
Maxim Integrated Products
Not Found

Low-Power, SC70/SOT µP Reset Circuits with Capacitor-Adjustable Reset Timeout Delay, 5-SOT_23-N/A, 5 Pins, -40 to 125C

Part Details for MAX6425UK16+T by Analog Devices Inc

Results Overview of MAX6425UK16+T by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Renewable Energy Automotive

MAX6425UK16+T Information

MAX6425UK16+T by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for MAX6425UK16+T

Part # Distributor Description Stock Price Buy
DISTI # 700-MAX6425UK16T
Mouser Electronics Supervisory Circuits Low-Power, SC70/SOT P Reset Circuits with Capacitor-Adjustable Reset Timeout D... elay more RoHS: Compliant 2255
  • 1 $5.7100
  • 10 $3.7500
  • 25 $3.2400
  • 100 $2.6600
  • 250 $2.3800
  • 500 $2.2000
  • 1,000 $2.1400
  • 2,500 $2.1300
$2.1300 / $5.7100 Buy Now
Analog Devices Inc Low-Power, SC70/SOT µP Reset C Min Qty: 1 Package Multiple: 1 27985
  • 1 $5.7100
  • 10 $3.7500
  • 25 $3.2380
  • 100 $2.6590
  • 250 $2.3748
  • 500 $2.2000
  • 1,000 $2.1375
  • 2,500 $2.1375
$2.1375 / $5.7100 Buy Now

Part Details for MAX6425UK16+T

MAX6425UK16+T CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

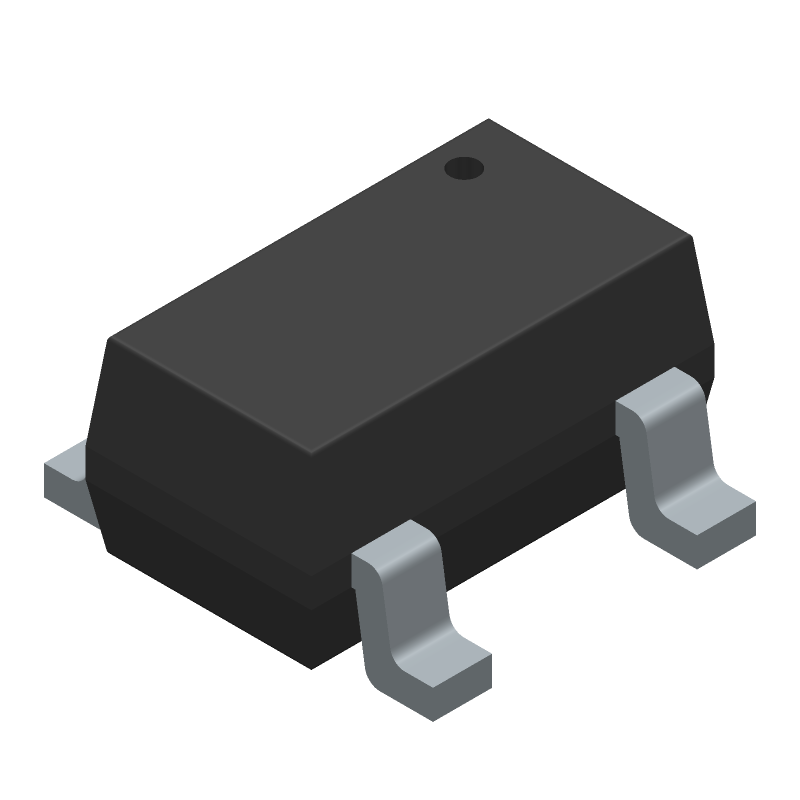

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MAX6425UK16+T Part Data Attributes

Parametric Data
MAX6425UK16+T Analog Devices Inc
Buy Now Datasheet
Compare Parts:
MAX6425UK16+T Analog Devices Inc Low-Power, SC70/SOT µP Reset Circuits with Capacitor-Adjustable Reset Timeout Delay, 5-SOT_23-N/A, 5 Pins, -40 to 125C
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 5-SOT_23-N/A
Package Description SOT-23, 5 PIN
Pin Count 5
Manufacturer Package Code 5-SOT_23-N/A
Reach Compliance Code compliant
Date Of Intro 2002-05-14
Samacsys Manufacturer Analog Devices
Additional Feature BAT BUP SW:N;MNL RST:N;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:Y;UV DET:N;WD:N;WWD:N
Adjustable Threshold NO
Analog IC - Other Type VOLTAGE SUPERVISOR/RESET IC
JESD-30 Code R-PDSO-G5
JESD-609 Code e3
Length 2.9 mm
Moisture Sensitivity Level 1
Number of Channels 1
Number of Functions 1
Number of Terminals 5
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code LSSOP
Package Equivalence Code TSOP5/6,.11,37
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.45 mm
Supply Current-Max (Isup) 0.0042 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 1 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology BICMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.95 mm
Terminal Position DUAL
Threshold Voltage-Nom +1.6V
Time@Peak Reflow Temperature-Max (s) 30
Width 1.625 mm

Alternate Parts for MAX6425UK16+T

This table gives cross-reference parts and alternative options found for MAX6425UK16+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX6425UK16+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MAX6425UK16-T Maxim Integrated Products Check for Price Power Supply Support Circuit, Fixed, 1 Channel, +1.6VV, BICMOS, PDSO5, MO-178AA, SOT-23, 5 PIN MAX6425UK16+T vs MAX6425UK16-T
MAX6425UK16+T Maxim Integrated Products Check for Price Power Supply Support Circuit, Fixed, 1 Channel, +1.6VV, BICMOS, PDSO5, LEAD FREE, MO-178AA, SOT-23, 5 PIN MAX6425UK16+T vs MAX6425UK16+T

MAX6425UK16+T Frequently Asked Questions (FAQ)

  • A good PCB layout for the MAX6425UK16+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.

  • To ensure stability, the MAX6425UK16+T requires a minimum output capacitance of 10uF and a maximum equivalent series resistance (ESR) of 1 ohm. Additionally, the input voltage should be well-regulated and the device should be operated within its recommended operating conditions. It's also important to follow the recommended PCB layout and to minimize noise and ripple on the input voltage.

  • The MAX6425UK16+T has an operating temperature range of -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. In general, the device should be operated at a maximum ambient temperature of 85°C to ensure reliable operation and to prevent overheating.

  • Yes, the MAX6425UK16+T is suitable for high-reliability and automotive applications. It's built with high-reliability materials and manufacturing processes, and it's qualified to the AEC-Q100 standard for automotive applications. However, it's essential to follow the recommended operating conditions, PCB layout, and design guidelines to ensure reliable operation in these applications.

  • To troubleshoot issues with the MAX6425UK16+T, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within its recommended operating conditions and that the PCB layout follows the recommended guidelines. Check for noise and ripple on the input voltage, and ensure that the output capacitance and ESR meet the recommended specifications. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support for further assistance.
