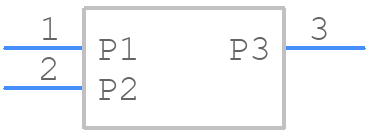

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX5491LB01000+ by Analog Devices Inc
Results Overview of MAX5491LB01000+ by Analog Devices Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MAX5491LB01000+ Information
MAX5491LB01000+ by Analog Devices Inc is an Array/Network Resistor.
Array/Network Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MAX5491LB01000+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Analog Devices Inc | Precision-Matched Resistor-Div Package Multiple: 1 | 1413 |
|
Buy Now |
Part Details for MAX5491LB01000+
MAX5491LB01000+ CAD Models
MAX5491LB01000+ Part Data Attributes
|
|
MAX5491LB01000+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX5491LB01000+
Analog Devices Inc
Precision-Matched Resistor-Divider in SOT23, 3-SOT_23-N/A, 3 Pins, -40 to 85C
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 3-SOT_23-N/A | |
| Package Description | SOT-23 | |
| Pin Count | 3 | |
| Manufacturer Package Code | 3-SOT_23-N/A | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2003-11-12 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | PRECISION | |
| Construction | Rectangular | |
| First Element Resistance | 15000 Ω | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Network Type | DIVIDER | |
| Number of Elements | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 1.12 mm | |
| Package Length | 3.04 mm | |
| Package Style | SOT-23 | |
| Package Width | 1.4 mm | |
| Rated Power Dissipation (P) | 0.5714 W | |
| Rated Temperature | 70 °C | |
| Resistance | 30000 Ω | |
| Resistor Type | ARRAY/NETWORK RESISTOR | |
| Second/Last Element Resistance | 15000 Ω | |
| Surface Mount | YES | |
| Temperature Coefficient | 35 ppm/°C | |
| Temperature Coefficient Tracking | 2 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Shape | GULL WING | |
| Working Voltage | 50 V |
