Power Circuits / Linear Regulator ICs / MAX5087BATE+T
Datasheets
MAX5087BATE+T by:
Analog Devices Inc
Analog Devices Inc
Maxim Integrated Products
Not Found

45V, 400mA, Low-Quiescent-Current Linear Regulator with Adjustable Reset Delay, 16-LFCSP-5X5X0.75, 16 Pins, -40 to 125C

Part Details for MAX5087BATE+T by Analog Devices Inc

Results Overview of MAX5087BATE+T by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

MAX5087BATE+T Information

MAX5087BATE+T by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for MAX5087BATE+T

Part # Distributor Description Stock Price Buy
DISTI # 700-MAX5087BATET
Mouser Electronics Linear Voltage Regulators 45V, 400mA, Low-Quiescent-Current Linear RoHS: Compliant 1016
  • 1 $6.2400
  • 10 $4.4800
  • 25 $4.1700
  • 100 $3.6700
  • 250 $3.4800
  • 500 $3.1200
  • 1,000 $2.6300
  • 2,500 $2.3200
$2.3200 / $6.2400 Buy Now
Analog Devices Inc 45V, 400mA, Low-Quiescent-Curr Min Qty: 2500 Package Multiple: 1 0
  • 1,000 $1.8600
  • 2,500 $2.3250
$1.8600 / $2.3250 Buy Now

Part Details for MAX5087BATE+T

MAX5087BATE+T CAD Models

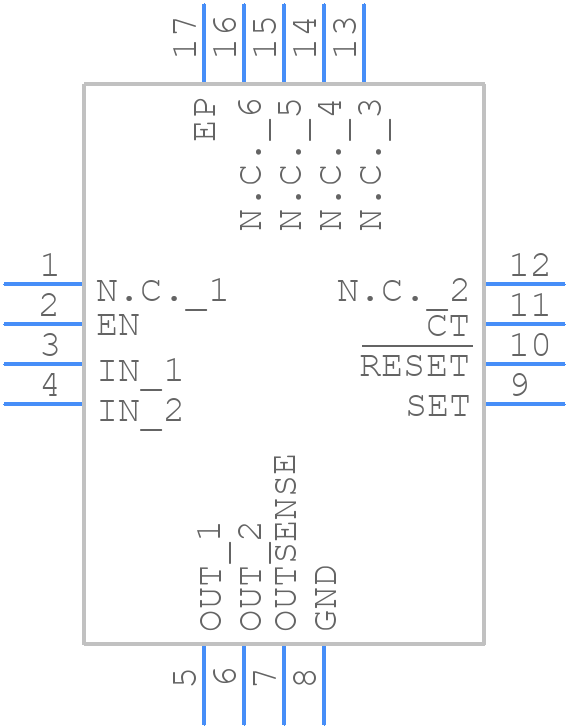

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MAX5087BATE+T Part Data Attributes

Parametric Data
MAX5087BATE+T Analog Devices Inc
Buy Now Datasheet
Compare Parts:
MAX5087BATE+T Analog Devices Inc 45V, 400mA, Low-Quiescent-Current Linear Regulator with Adjustable Reset Delay, 16-LFCSP-5X5X0.75, 16 Pins, -40 to 125C
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 16-LFCSP-5X5X0.75
Package Description 5 X 5 MM, 0.80 MM HEIGHT, ROHS COMPLIANT, MO-220WHHB, TQFN-16
Pin Count 16
Manufacturer Package Code 16-LFCSP-5X5X0.75
Reach Compliance Code compliant
Date Of Intro 2006-02-17
Samacsys Manufacturer Analog Devices
Adjustability FIXED/ADJUSTABLE
Dropout Voltage1-Nom 0.9 V
Input Voltage Absolute-Max 50 V
JESD-30 Code S-XQCC-N16
JESD-609 Code e3
Length 5 mm
Line Regulation-Max 0.057%
Line Regulation-Max (%/V) 0.04
Load Regulation-Max 0.1%
Load Regulation-Max(%) 0.04%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 16
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Output Current1-Max 0.4 A
Output Voltage1-Max 11 V
Output Voltage1-Min 2.5 V
Output Voltage1-Nom 5 V
Package Body Material UNSPECIFIED
Package Code HVQCCN
Package Equivalence Code LCC16,.2SQ,32
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Packing Method TR
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Regulator Type FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max 0.8 mm
Surface Mount YES
Technology BICMOS
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.8 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Voltage Tolerance-Max 3%
Width 5 mm

Alternate Parts for MAX5087BATE+T

This table gives cross-reference parts and alternative options found for MAX5087BATE+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX5087BATE+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MAX5087BATE-T Maxim Integrated Products Check for Price Fixed/Adjustable Positive Standard Regulator, 5V, BICMOS, 5 X 5 MM, 0.80 MM HEIGHT, MO-220WHHB, TQFN-16 MAX5087BATE+T vs MAX5087BATE-T
MAX5087BATE+ Analog Devices Inc Check for Price 45V, 400mA, Low-Quiescent-Current Linear Regulator with Adjustable Reset Delay, 16-LFCSP-5X5X0.75, 16 Pins, -40 to 125C MAX5087BATE+T vs MAX5087BATE+
MAX5087BATE+ Maxim Integrated Products $3.5947 Fixed/Adjustable Positive Standard Regulator, 5V, BICMOS, 5 X 5 MM, 0.80 MM HEIGHT, ROHS COMPLIANT, MO-220WHHB, TQFN-16 MAX5087BATE+T vs MAX5087BATE+
MAX5087AATE+T Maxim Integrated Products Check for Price Fixed/Adjustable Positive Standard Regulator, 3.3V, BICMOS, 5 X 5 MM, 0.80 MM HEIGHT, ROHS COMPLIANT, MO-220WHHB, TQFN-16 MAX5087BATE+T vs MAX5087AATE+T
HMC976LP3E Analog Devices Inc Check for Price 400 mA Low Noise, High PSRR Linear Voltage Regulator MAX5087BATE+T vs HMC976LP3E

MAX5087BATE+T Frequently Asked Questions (FAQ)

  • A good PCB layout for the MAX5087BATE+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.

  • The MAX5087BATE+T requires a single 3.3V or 5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirements are not critical, but it's recommended to power the device after the input signals are stable to prevent any unwanted output voltage transients.

  • The MAX5087BATE+T can drive capacitive loads up to 10nF. However, it's recommended to limit the capacitive load to 1nF or less to ensure stability and optimal performance.

  • To troubleshoot issues with the MAX5087BATE+T, start by checking the power supply voltage and ensuring it's within the recommended range. Next, verify that the input signals are within the specified range and that the device is properly configured. Use an oscilloscope to check the output voltage and look for any signs of oscillation or noise. Finally, check the PCB layout and ensure that it's following the recommended layout guidelines.

  • The MAX5087BATE+T is specified to operate from -40°C to +125°C. However, it's recommended to derate the device's performance at high temperatures to ensure reliability and accuracy. Consult the datasheet for more information on temperature derating.
