Amplifier Circuits / Comparators / MAX40025CAWT+T
Datasheets
MAX40025CAWT+T by:
Analog Devices Inc
Analog Devices Inc
Maxim Integrated Products
Not Found

280ps High-Speed Comparator, Ultra-Low Dispersion with LVDS Outputs, 6-WLCSP-N/A, 6 Pins, -40 to 125C

Part Details for MAX40025CAWT+T by Analog Devices Inc

Results Overview of MAX40025CAWT+T by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

MAX40025CAWT+T Information

MAX40025CAWT+T by Analog Devices Inc is a Comparator.
Comparators are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for MAX40025CAWT+T

Part # Distributor Description Stock Price Buy
DISTI # 700-MAX40025CAWT+T
Mouser Electronics Analog Comparators High Speed 1ns Comparator RoHS: Compliant 2212
  • 1 $6.9300
  • 10 $4.6000
  • 25 $3.9900
  • 100 $3.3100
  • 250 $2.9700
  • 500 $2.7900
  • 2,500 $2.7800
$2.7800 / $6.9300 Buy Now
Analog Devices Inc High Speed 1ns Comparator Min Qty: 1 Package Multiple: 1 18782
  • 1 $6.9300
  • 10 $4.6020
  • 25 $3.9948
  • 100 $3.3078
  • 250 $2.9706
  • 500 $2.7875
  • 1,000 $2.2300
  • 2,500 $2.7875
$2.2300 / $6.9300 Buy Now

Part Details for MAX40025CAWT+T

MAX40025CAWT+T CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

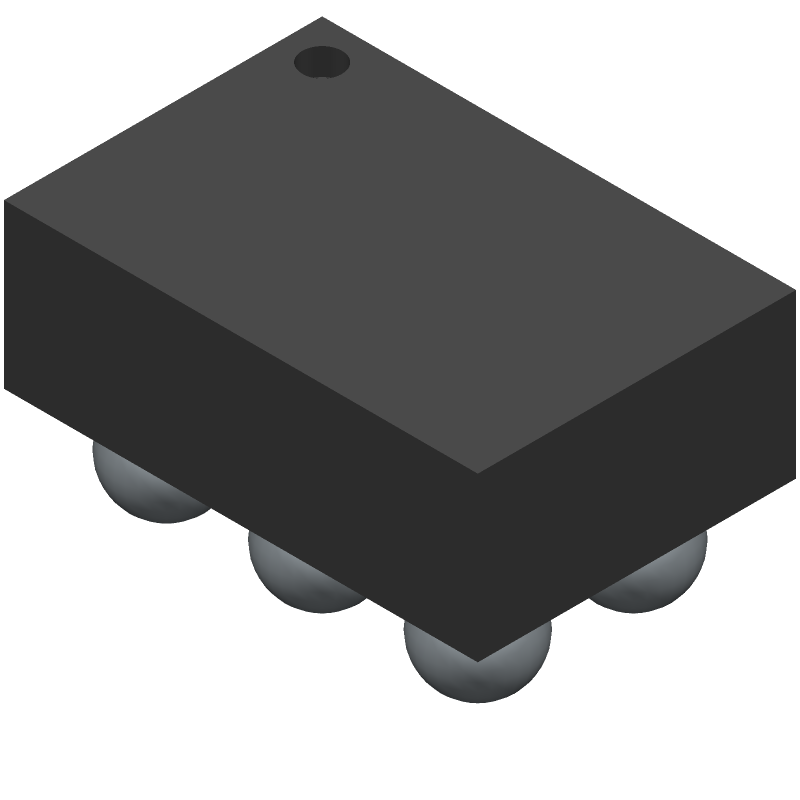

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MAX40025CAWT+T Part Data Attributes

Parametric Data
MAX40025CAWT+T Analog Devices Inc
Buy Now Datasheet
Compare Parts:
MAX40025CAWT+T Analog Devices Inc 280ps High-Speed Comparator, Ultra-Low Dispersion with LVDS Outputs, 6-WLCSP-N/A, 6 Pins, -40 to 125C
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 6-WLCSP-N/A
Package Description WLP-6
Pin Count 6
Manufacturer Package Code 6-WLCSP-N/A
Reach Compliance Code compliant
Date Of Intro 2019-04-01
Samacsys Manufacturer Analog Devices
Amplifier Type COMPARATOR
Average Bias Current-Max (IIB) 10 µA
Input Offset Voltage-Max 5000 µV
JESD-30 Code R-XBGA-B6
Length 1.218 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 6
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material UNSPECIFIED
Package Code VFBGA
Package Equivalence Code BGA6,2X3,16
Package Shape RECTANGULAR
Package Style GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Packing Method TR
Peak Reflow Temperature (Cel) 260
Response Time-Nom 0.27 ns
Seated Height-Max 0.69 mm
Supply Current-Max 23 mA
Supply Voltage Limit-Max 3.6 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Terminal Finish Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)
Terminal Form BALL
Terminal Pitch 0.4 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 30
Width 0.818 mm
