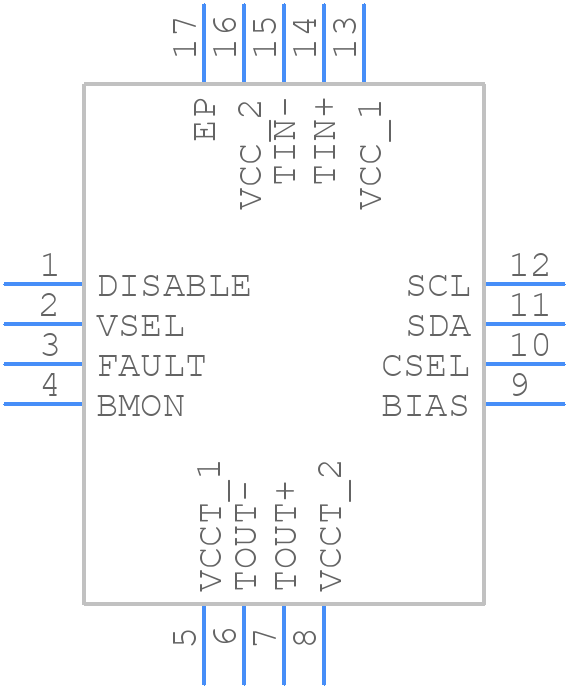

Part Symbol
-
Footprint
-

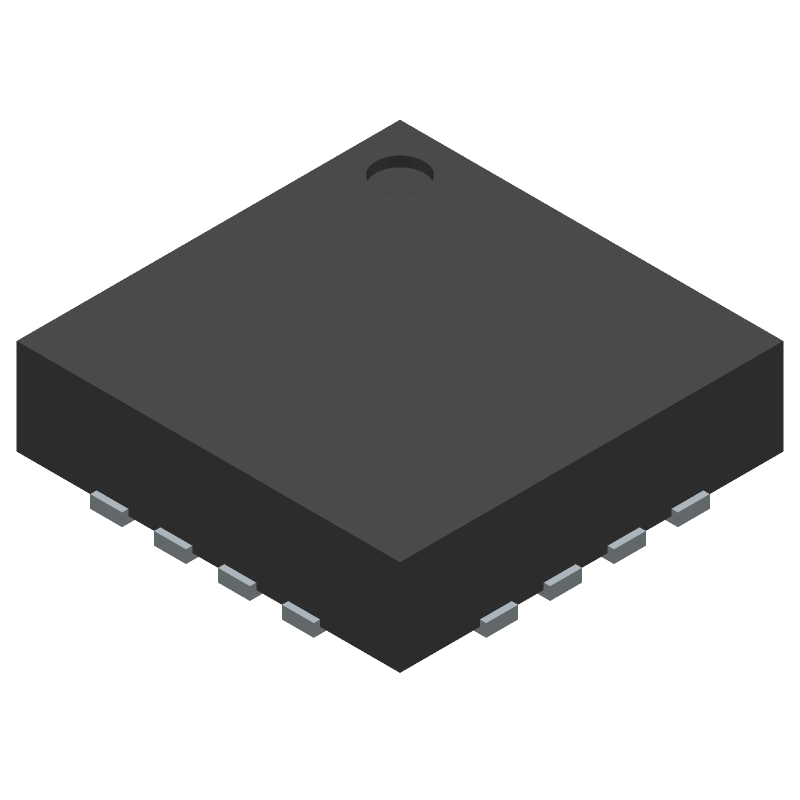

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX3949ETE+T by Analog Devices Inc
Results Overview of MAX3949ETE+T by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MAX3949ETE+T Information
MAX3949ETE+T by Analog Devices Inc is an Other Telecom IC.
Other Telecom ICs are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for MAX3949ETE+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX3949ETE+T
|
Mouser Electronics | Laser Drivers 1Gbps to 11.3Gbps, SFP+ Laser Driver RoHS: Compliant | 0 |
|
$4.4500 | Order Now |
|
|
Analog Devices Inc | 1Gbps to 11.3Gbps, SFP+ Laser Min Qty: 1 Package Multiple: 1 | 874 |
|
$3.5600 / $9.7900 | Buy Now |
Part Details for MAX3949ETE+T
MAX3949ETE+T CAD Models
MAX3949ETE+T Part Data Attributes
|
|
MAX3949ETE+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX3949ETE+T
Analog Devices Inc
11.3Gbps, Low-Power, AC-Coupled Laser Driver, 16-LFCSP-3X3X0.75, 16 Pins, -40 to 85C
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 16-LFCSP-3X3X0.75 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 16-LFCSP-3X3X0.75 | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2012-06-12 | |
| Samacsys Manufacturer | Analog Devices | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Peak Reflow Temperature (Cel) | 260 | |
| Telecom IC Type | TELECOM CIRCUIT | |
| Terminal Finish | Matte Tin (Sn) |
