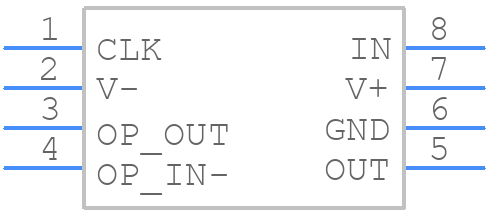

Part Symbol
-
Footprint
-

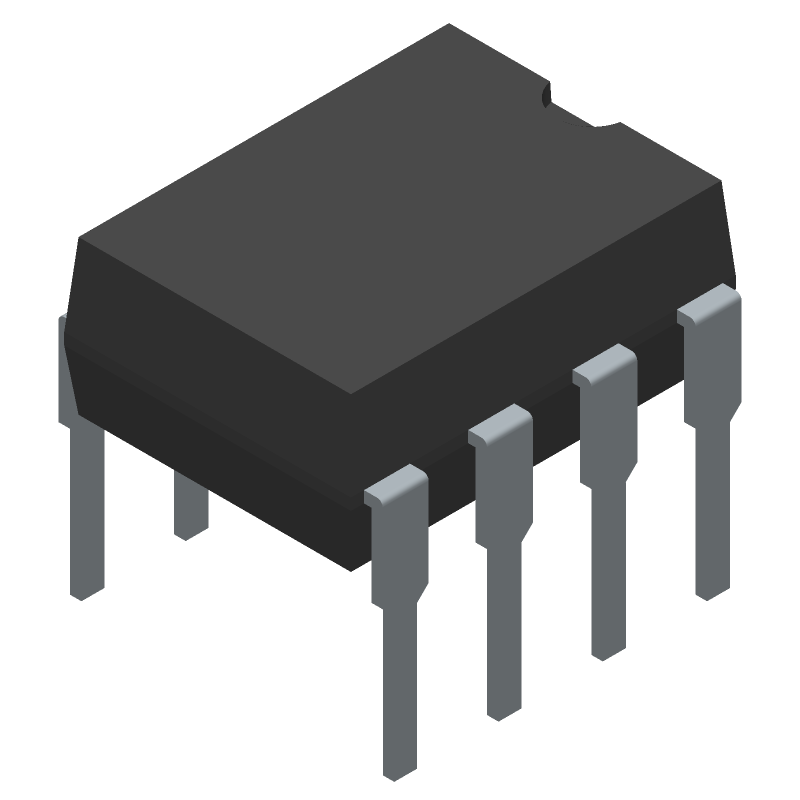

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX297CPA+ by Analog Devices Inc
Results Overview of MAX297CPA+ by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (9 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MAX297CPA+ Information
MAX297CPA+ by Analog Devices Inc is an Active Filter.
Active Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Price & Stock for MAX297CPA+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX297CPA
|
Mouser Electronics | Active Filters 8th-Order, Lowpass, Elliptic, Switched-C RoHS: Compliant | 10 |
|
$11.4600 / $19.0300 | Buy Now |
|
|
Analog Devices Inc | 8th-Order, Lowpass, Elliptic, Package Multiple: 1 | 4978 |
|
$8.9400 / $19.6200 | Buy Now |
Part Details for MAX297CPA+
MAX297CPA+ CAD Models
MAX297CPA+ Part Data Attributes
|
|
MAX297CPA+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX297CPA+
Analog Devices Inc
8th-Order, Lowpass, Elliptic, Switched-Capacitor Filters, 8-PDIP-300_MIL, 8 Pins, 0 to 70C
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 8-PDIP-300_MIL | |
| Package Description | PLASTIC, DIP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-PDIP-300_MIL | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1992-06-01 | |
| Samacsys Manufacturer | Analog Devices | |
| Active Filter Type | SWITCHED CAPACITOR FILTER | |
| Center or Cutoff Freq Rng-Max | 50 kHz | |
| Center or Cutoff Freq Rng-Min | 0.0001 kHz | |
| JESD-30 Code | R-PDIP-T8 | |
| JESD-609 Code | e3 | |
| Length | 9.375 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Max (Vsup) | -5.5 V | |
| Neg Supply Voltage-Min (Vsup) | -2.375 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Order | 8TH | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Poles and Zeros | 8 AND 0 | |
| Qualification Status | Not Qualified | |
| Response | LOWPASS | |
| Seated Height-Max | 4.572 mm | |
| Supply Current-Max (Isup) | 22 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.375 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transfer Characteristics | ELLIPTIC | |
| Width | 7.62 mm |
Alternate Parts for MAX297CPA+
This table gives cross-reference parts and alternative options found for MAX297CPA+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX297CPA+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX293JA | Maxim Integrated Products | Check for Price | Switched Capacitor Filter, 1 Func, Elliptic, Lowpass, CDIP8, CERDIP-8 | MAX297CPA+ vs MAX293JA |
