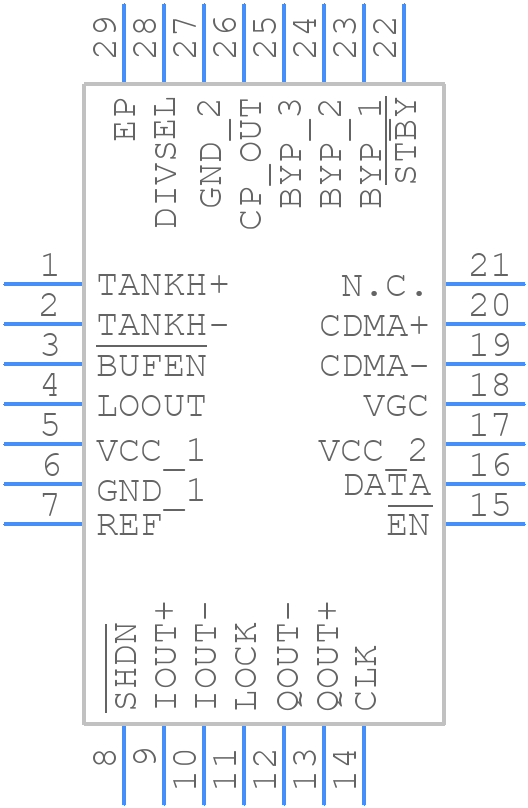

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX2309ETI+T by Analog Devices Inc
Results Overview of MAX2309ETI+T by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MAX2309ETI+T Information
MAX2309ETI+T by Analog Devices Inc is a Cellular Telephone Circuit.
Cellular Telephone Circuits are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for MAX2309ETI+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX2309ETIT
|
Mouser Electronics | RF Receiver CDMA IF VGAs and I/Q Demodulators with V RoHS: Compliant | 0 |
|
$5.9600 | Order Now |
|
|
Analog Devices Inc | CDMA If VGAs And I/Q Demodulat Min Qty: 1 Package Multiple: 1 | 344 |
|
$4.7700 / $12.1800 | Buy Now |
|
DISTI #
MAX2309ETI+T
|
Richardson RFPD | MULTI-FUNCTION RECEIVER IC RoHS: Compliant Min Qty: 2500 | 0 |
|
$6.0800 | Buy Now |
Part Details for MAX2309ETI+T
MAX2309ETI+T CAD Models
MAX2309ETI+T Part Data Attributes
|
|
MAX2309ETI+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX2309ETI+T
Analog Devices Inc
CDMA IF VGAs and I/Q Demodulators with VCO and Synthesizer, 28-LFCSP-5X5X0.75, 28 Pins, -40 to 85C
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 28-LFCSP-5X5X0.75 | |
| Package Description | TQFN-28 | |
| Pin Count | 28 | |
| Manufacturer Package Code | 28-LFCSP-5X5X0.75 | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2001-04-07 | |
| Samacsys Manufacturer | Analog Devices | |
| JESD-30 Code | S-XQCC-N28 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC28,.2SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Supply Current-Max | 0.0415 mA | |
| Supply Voltage-Nom | 2.75 V | |
| Surface Mount | YES | |
| Telecom IC Type | BASEBAND CIRCUIT | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5 mm |
