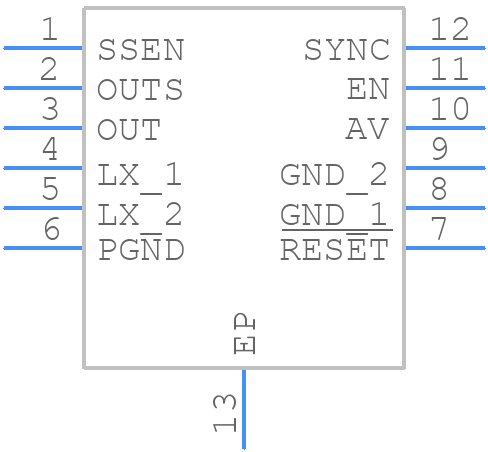

Part Symbol
-
Footprint
-

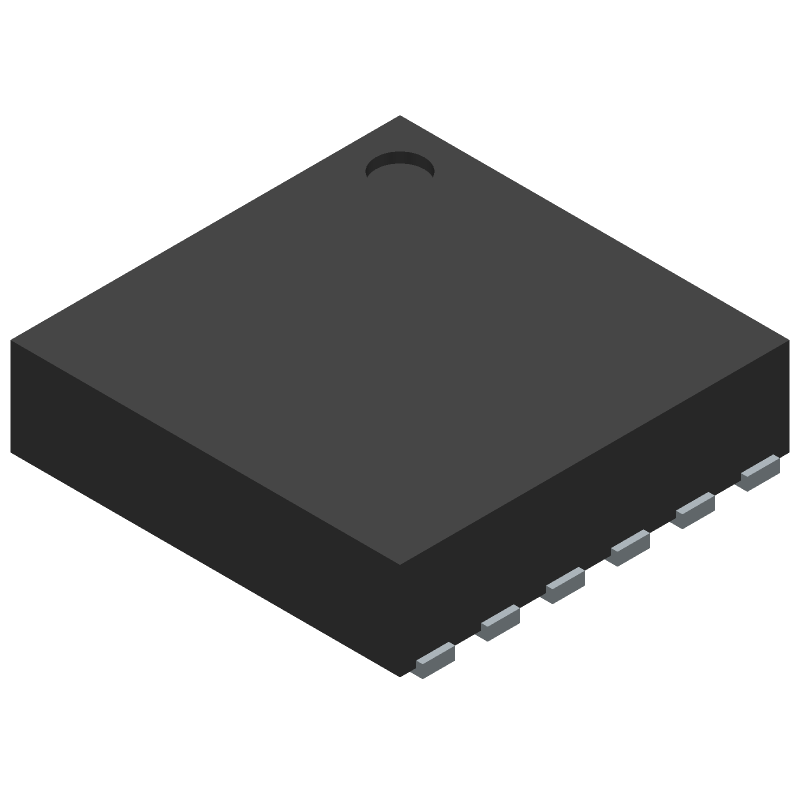

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX20471ATCB/VY+T by Analog Devices Inc
Results Overview of MAX20471ATCB/VY+T by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MAX20471ATCB/VY+T Information
MAX20471ATCB/VY+T by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX20471ATCB/VY+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX20471ATCBVY+T
|
Mouser Electronics | Switching Voltage Regulators LV 5V Boost Converter RoHS: Compliant | 0 |
|
$1.6000 | Order Now |
|
|
Analog Devices Inc | LV 5V Boost Converter Min Qty: 2500 Package Multiple: 1 | 0 |
|
$1.1600 / $1.4500 | Buy Now |
Part Details for MAX20471ATCB/VY+T
MAX20471ATCB/VY+T CAD Models
MAX20471ATCB/VY+T Part Data Attributes
|
|
MAX20471ATCB/VY+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX20471ATCB/VY+T
Analog Devices Inc
Low-Voltage Synchronous Boost Converter, 12-LFCSP_SS-3X3X0.75, 12 Pins, -40 to 125C
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 12-LFCSP_SS-3X3X0.75 | |
| Pin Count | 12 | |
| Manufacturer Package Code | 12-LFCSP_SS-3X3X0.75 | |
| Date Of Intro | 2018-07-31 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
