Power Circuits / Switching Regulator or Controllers / MAX1706EEE+
Datasheets
MAX1706EEE+ by:
Analog Devices Inc
Analog Devices Inc
Maxim Integrated Products
Rochester Electronics LLC
Not Found

1 to 3 Cell, High Current, Low-Noise, Step-Up DC-DC Converters with Linear Regulator, 16-QSOP-150_MIL, 16 Pins, -40 to 85C

Part Details for MAX1706EEE+ by Analog Devices Inc

Results Overview of MAX1706EEE+ by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Space Technology Smart Cities Aerospace and Defense Transportation and Logistics Healthcare Medical Imaging Automotive Robotics and Drones

MAX1706EEE+ Information

MAX1706EEE+ by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for MAX1706EEE+

Part # Distributor Description Stock Price Buy
DISTI # 700-MAX1706EEE
Mouser Electronics Switching Voltage Regulators 1 to 3 Cell, High Current, Low-Noise, St RoHS: Compliant 101
  • 1 $9.2800
  • 10 $6.5800
  • 100 $5.7500
  • 200 $5.3100
  • 500 $5.2700
  • 1,000 $5.2000
$5.2000 / $9.2800 Buy Now
Analog Devices Inc 1 to 3 Cell, High Current, Low Package Multiple: 1 3713
  • 1 $10.7900
  • 10 $7.3630
  • 25 $6.4692
  • 100 $5.4585
  • 1,000 $4.0600
$4.0600 / $10.7900 Buy Now
DISTI # MAX1706EEE+
TME PMIC, DC/DC converter, Uin: 0.7÷5.5VDC, Uout: 2.5÷5.5VDC, 0.4A Min Qty: 1 0
  • 1 $7.0600
  • 3 $5.9700
  • 10 $4.7100
  • 25 $4.3900
$4.3900 / $7.0600 RFQ

Part Details for MAX1706EEE+

MAX1706EEE+ CAD Models

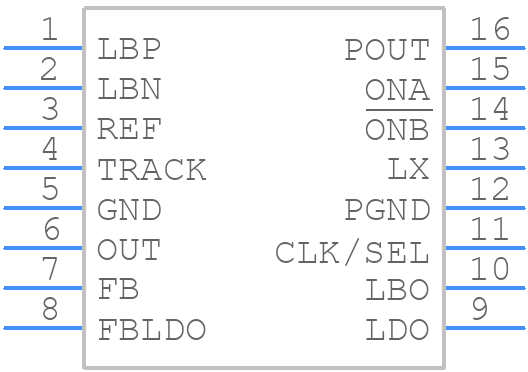

  • Part Symbol

    Part Symbol

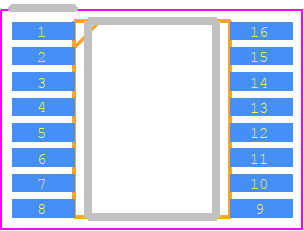

  • Footprint

    footprint

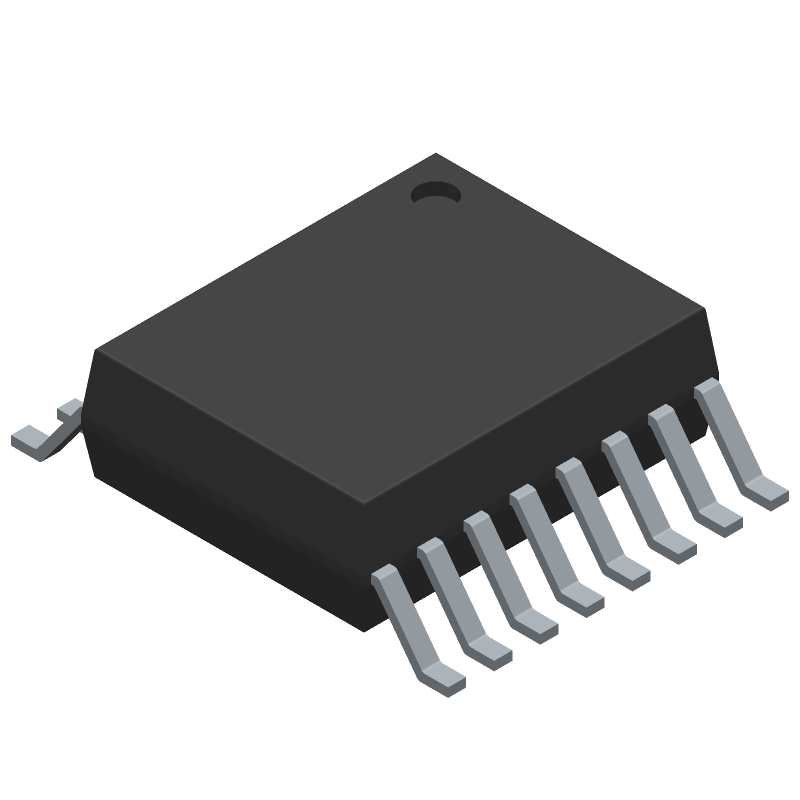

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MAX1706EEE+ Part Data Attributes

Parametric Data
MAX1706EEE+ Analog Devices Inc
Buy Now Datasheet
Compare Parts:
MAX1706EEE+ Analog Devices Inc 1 to 3 Cell, High Current, Low-Noise, Step-Up DC-DC Converters with Linear Regulator, 16-QSOP-150_MIL, 16 Pins, -40 to 85C
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 16-QSOP-150_MIL
Package Description 0.150 INCH, 0.025 INCH PITCH, LEAD FREE, QSOP-16
Pin Count 16
Manufacturer Package Code 16-QSOP-150_MIL
Reach Compliance Code compliant
Date Of Intro 1997-04-07
Samacsys Manufacturer Analog Devices
Additional Feature PFM MODE ALSO AVAILABLE
Analog IC - Other Type SWITCHING REGULATOR
Control Mode VOLTAGE-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Max 5.5 V
Input Voltage-Min 0.7 V
JESD-30 Code R-PDSO-G16
JESD-609 Code e3
Length 4.89 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 16
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Current-Max 0.95 A
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Surface Mount YES
Switcher Configuration BOOST
Switching Frequency-Max 340 kHz
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.635 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3.9 mm

Alternate Parts for MAX1706EEE+

This table gives cross-reference parts and alternative options found for MAX1706EEE+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX1706EEE+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MAX1706EEE-T Maxim Integrated Products Check for Price Switching Regulator, Voltage-mode, 0.95A, 340kHz Switching Freq-Max, CMOS, PDSO16, 0.150 INCH, 0.025 INCH PITCH, MO-137AB, QSOP-16 MAX1706EEE+ vs MAX1706EEE-T
MAX1706EEE Maxim Integrated Products Check for Price Switching Regulator, Voltage-mode, 0.95A, 340kHz Switching Freq-Max, CMOS, PDSO16, 0.150 INCH, 0.025 INCH PITCH, MO-137AB, QSOP-16 MAX1706EEE+ vs MAX1706EEE
MAX1706EEE+T Analog Devices Inc Check for Price 1 to 3 Cell, High Current, Low-Noise, Step-Up DC-DC Converters with Linear Regulator, 16-QSOP-150_MIL, 16 Pins, -40 to 85C MAX1706EEE+ vs MAX1706EEE+T
MAX1706EEE+ Maxim Integrated Products $5.1677 Switching Regulator, Voltage-mode, 0.95A, 340kHz Switching Freq-Max, PDSO16, 0.150 INCH, 0.025 INCH PITCH, LEAD FREE, QSOP-16 MAX1706EEE+ vs MAX1706EEE+
