Power Circuits / Switching Regulator or Controllers / MAX16922ATPF/V+T
Datasheets
MAX16922ATPF/V+T by:
Analog Devices Inc
Analog Devices Inc
Maxim Integrated Products
Not Found

2.2MHz, Dual, Step-Down DC-DC Converters, Dual LDOs, and Active-Low RESET, 20-LFCSP-5X5X0.75, 20 Pins, -40 to 125C

Part Details for MAX16922ATPF/V+T by Analog Devices Inc

Results Overview of MAX16922ATPF/V+T by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MAX16922ATPF/V+T Information

MAX16922ATPF/V+T by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
LM2917M-8 Texas Instruments Frequency to Voltage Converter 8-SOIC -40 to 85
LM2917MX/NOPB Texas Instruments Frequency to Voltage Converter 14-SOIC -40 to 85
LM2917N-8/NOPB Texas Instruments Frequency to Voltage Converter 8-PDIP -40 to 85

Price & Stock for MAX16922ATPF/V+T

Part # Distributor Description Stock Price Buy
DISTI # 700-MAX16922ATPF/V+T
Mouser Electronics Switching Voltage Regulators 2.2MHz, Dual, Step-Down DC-DC Converters RoHS: Compliant 0
  • 2,500 $10.0200
$10.0200 Order Now
Analog Devices Inc 2.2MHz, Dual, Step-Down DC-DC Min Qty: 2500 Package Multiple: 1 5000
  • 1,000 $8.0200
  • 2,500 $10.0250
$8.0200 / $10.0250 Buy Now

Part Details for MAX16922ATPF/V+T

MAX16922ATPF/V+T CAD Models

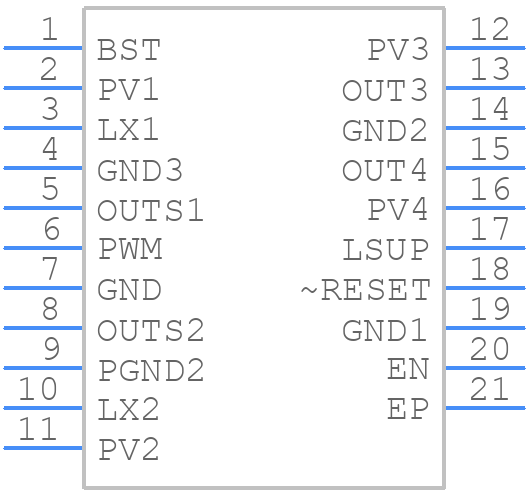

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

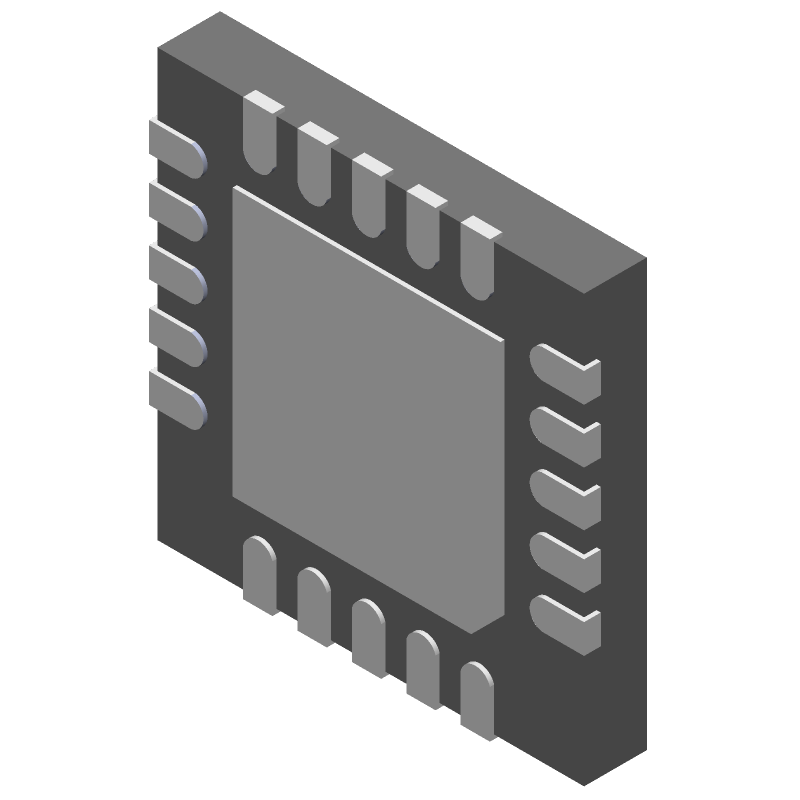

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MAX16922ATPF/V+T Part Data Attributes

Parametric Data
MAX16922ATPF/V+T Analog Devices Inc
Buy Now Datasheet
Compare Parts:
MAX16922ATPF/V+T Analog Devices Inc 2.2MHz, Dual, Step-Down DC-DC Converters, Dual LDOs, and Active-Low RESET, 20-LFCSP-5X5X0.75, 20 Pins, -40 to 125C
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 20-LFCSP-5X5X0.75
Pin Count 20
Manufacturer Package Code 20-LFCSP-5X5X0.75
Reach Compliance Code compliant
Date Of Intro 2010-01-27
Samacsys Manufacturer Analog Devices
JESD-30 Code S-PQCC-N20
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Terminals 20
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code QCCN
Package Equivalence Code LCC20,.20SQ,25
Package Shape SQUARE
Package Style CHIP CARRIER
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Surface Mount YES
Technology BICMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.635 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30

Alternate Parts for MAX16922ATPF/V+T

This table gives cross-reference parts and alternative options found for MAX16922ATPF/V+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX16922ATPF/V+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
