Power Circuits / Switching Regulator or Controllers / MAX15020ATP+
Datasheets
MAX15020ATP+ by:
Analog Devices Inc
Analog Devices Inc
Maxim Integrated Products
Not Found

2A, 40V Step-Down DC-DC Converter with Dynamic Output-Voltage Programming, 20-LFCSP-5X5X0.75, 20 Pins, -40 to 125C

Part Details for MAX15020ATP+ by Analog Devices Inc

Results Overview of MAX15020ATP+ by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MAX15020ATP+ Information

MAX15020ATP+ by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for MAX15020ATP+

Part # Distributor Description Stock Price Buy
DISTI # 700-MAX15020ATP
Mouser Electronics Switching Voltage Regulators 2A, 40V Step-Down DC-DC Converter with D RoHS: Compliant 179
  • 1 $14.2700
  • 10 $9.9200
  • 25 $7.9200
  • 120 $7.3600
$7.3600 / $14.2700 Buy Now
Analog Devices Inc 2A, 40V Step-Down DC-DC Conver Package Multiple: 1 781
  • 1 $14.2700
  • 10 $9.9130
  • 1,000 $5.8900
$5.8900 / $14.2700 Buy Now
DISTI # MAX15020ATP+
TME PMIC, DC/DC converter, Uin: 7.5÷40VDC, Uout: 0.5÷36VDC, 2A, QFN20 Min Qty: 1 0
  • 1 $10.3800
  • 3 $8.7800
  • 10 $7.1700
  • 25 $6.6900
$6.6900 / $10.3800 RFQ

Part Details for MAX15020ATP+

MAX15020ATP+ CAD Models

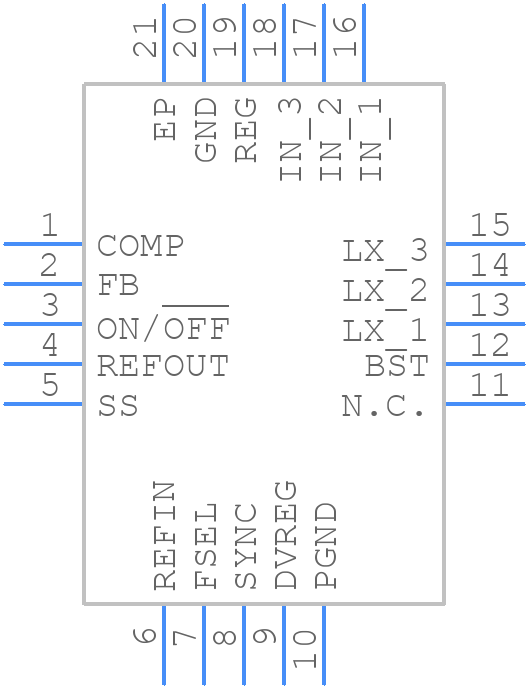

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MAX15020ATP+ Part Data Attributes

Parametric Data
MAX15020ATP+ Analog Devices Inc
Buy Now Datasheet
Compare Parts:
MAX15020ATP+ Analog Devices Inc 2A, 40V Step-Down DC-DC Converter with Dynamic Output-Voltage Programming, 20-LFCSP-5X5X0.75, 20 Pins, -40 to 125C
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 20-LFCSP-5X5X0.75
Package Description 5 X 5 MM, ROHS COMPLIANT, TQFN-20
Pin Count 20
Manufacturer Package Code 20-LFCSP-5X5X0.75
Reach Compliance Code compliant
Date Of Intro 2007-05-10
Samacsys Manufacturer Analog Devices
Additional Feature ALSO OPERATES IN ADJUSTABLE MODE FROM 0.5V TO 36 V
Analog IC - Other Type SWITCHING REGULATOR
Control Mode VOLTAGE-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Max 40 V
Input Voltage-Min 7.5 V
Input Voltage-Nom 36 V
JESD-30 Code S-XQCC-N20
JESD-609 Code e3
Length 5 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 20
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Current-Max 4.5 A
Package Body Material UNSPECIFIED
Package Code HVQCCN
Package Equivalence Code LCC20,.20SQ,25
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 0.8 mm
Surface Mount YES
Switcher Configuration BUCK
Switching Frequency-Max 550 kHz
Technology BICMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.65 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 5 mm

Alternate Parts for MAX15020ATP+

This table gives cross-reference parts and alternative options found for MAX15020ATP+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX15020ATP+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MAX15020ATP+T Maxim Integrated Products Check for Price Switching Regulator, Voltage-mode, 4.5A, 550kHz Switching Freq-Max, BICMOS, 5 X 5 MM, ROHS COMPLIANT, TQFN-20 MAX15020ATP+ vs MAX15020ATP+T
MAX15020ATP+T Analog Devices Inc Check for Price 2A, 40V Step-Down DC-DC Converter with Dynamic Output-Voltage Programming, 20-LFCSP-5X5X0.75, 20 Pins, -40 to 125C MAX15020ATP+ vs MAX15020ATP+T
MAX15023ETG/V+ Maxim Integrated Products Check for Price Dual Switching Controller, Voltage-mode, 3A, 1000kHz Switching Freq-Max, BICMOS, 4 X 4 MM, ROHS COMPLIANT, TQFN-24 MAX15020ATP+ vs MAX15023ETG/V+
MAX15026BETD/V+T Maxim Integrated Products Check for Price Switching Controller, Voltage-mode, 0.07A, 2400kHz Switching Freq-Max, BICMOS, PDSO14, 3 X 3 MM, ROHS COMPLIANT, TDFN-14 MAX15020ATP+ vs MAX15026BETD/V+T
MAX15023ETG+ Analog Devices Inc Check for Price Wide 4.5V to 28V Input, Dual-Output Synchronous Buck Controller, 24-LFCSP-4X4X0.75, 24 Pins, -40 to 85C MAX15020ATP+ vs MAX15023ETG+
MAX15026DATD+ Analog Devices Inc Check for Price Switching Controller, Voltage-mode, 2400kHz Switching Freq-Max, BICMOS, PDSO14 MAX15020ATP+ vs MAX15026DATD+
MAX15026CATD+ Maxim Integrated Products Check for Price Switching Controller, Voltage-mode, 2400kHz Switching Freq-Max, BICMOS, PDSO14, 3 X 3 MM, ROHS COMPLIANT, TDFN-14 MAX15020ATP+ vs MAX15026CATD+
MAX15026BETD+T Maxim Integrated Products Check for Price Switching Controller, Voltage-mode, 2400kHz Switching Freq-Max, BICMOS, PDSO14, 3 X 3 MM, ROHS COMPLIANT, TDFN-14 MAX15020ATP+ vs MAX15026BETD+T
MAX15026CATD+ Analog Devices Inc Check for Price Low-Cost, Small, 4.5V to 28V Wide Operating Range, DC-DC Synchronous Buck Controller, 14-LFCSP-3X3X0.75, 14 Pins, -40 to 125C MAX15020ATP+ vs MAX15026CATD+
MAX15026CETD+ Maxim Integrated Products Check for Price Switching Controller, Voltage-mode, 2400kHz Switching Freq-Max, BICMOS, PDSO14, 3 X 3 MM, ROHS COMPLIANT, TDFN-14 MAX15020ATP+ vs MAX15026CETD+
