Power Circuits / Linear Regulator ICs / MAX15007BATT+T
Datasheets
MAX15007BATT+T by:
Analog Devices Inc
Analog Devices Inc
Maxim Integrated Products
Not Found

40V, Ultra-Low Quiescent-Current Linear Regulators in 6-Pin TDFN/8-Pin SO, 6-LFCSP-3X3X0.75, 6 Pins, -40 to 125C

Part Details for MAX15007BATT+T by Analog Devices Inc

Results Overview of MAX15007BATT+T by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Security and Surveillance Audio and Video Systems Transportation and Logistics Renewable Energy Automotive Robotics and Drones

MAX15007BATT+T Information

MAX15007BATT+T by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for MAX15007BATT+T

Part # Distributor Description Stock Price Buy
DISTI # 700-MAX15007BATTT
Mouser Electronics Linear Voltage Regulators 40V, Ultra-Low Quiescent-Current Linear RoHS: Compliant 2155
  • 1 $4.4200
  • 10 $2.8700
  • 25 $2.4600
  • 100 $2.0000
  • 250 $1.7700
  • 500 $1.6300
  • 1,000 $1.5200
  • 2,500 $1.5000
$1.5000 / $4.4200 Buy Now
Analog Devices Inc 40V, Ultra-Low Quiescent-Curre Min Qty: 1 Package Multiple: 1 523
  • 1 $4.4200
  • 10 $2.8620
  • 25 $2.4548
  • 100 $1.9941
  • 250 $1.7679
  • 500 $1.6287
  • 1,000 $1.5122
  • 2,500 $1.5000
$1.5000 / $4.4200 Buy Now

Part Details for MAX15007BATT+T

MAX15007BATT+T CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

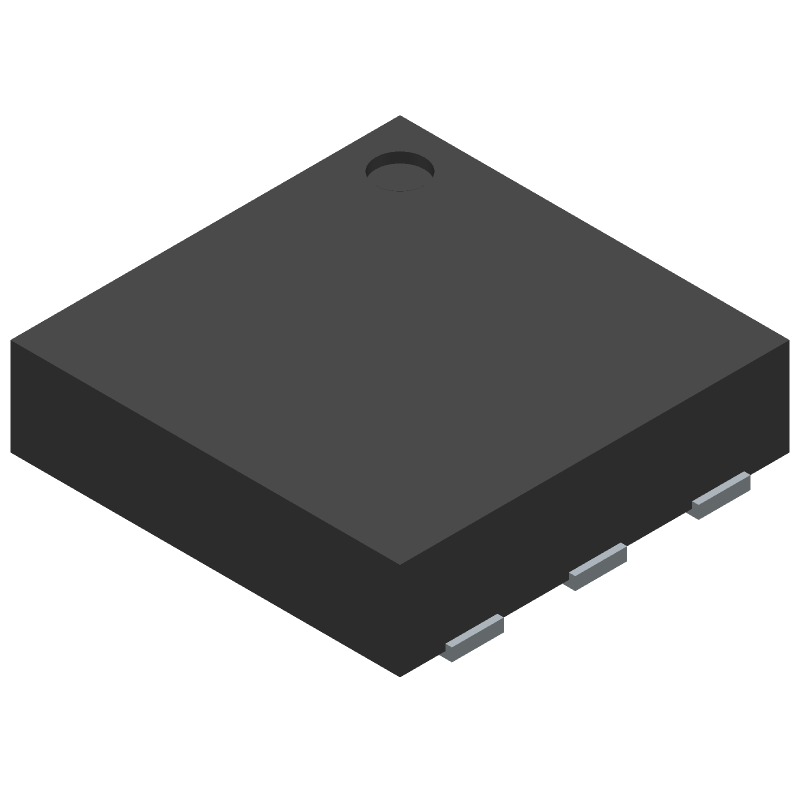

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MAX15007BATT+T Part Data Attributes

Parametric Data
MAX15007BATT+T Analog Devices Inc
Buy Now Datasheet
Compare Parts:
MAX15007BATT+T Analog Devices Inc 40V, Ultra-Low Quiescent-Current Linear Regulators in 6-Pin TDFN/8-Pin SO, 6-LFCSP-3X3X0.75, 6 Pins, -40 to 125C
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 6-LFCSP-3X3X0.75
Package Description 3 X 3 MM, ROHS COMPLIANT, TDFN-6
Pin Count 6
Manufacturer Package Code 6-LFCSP-3X3X0.75
Reach Compliance Code compliant
Date Of Intro 2006-11-08
Samacsys Manufacturer Analog Devices
Adjustability FIXED
Dropout Voltage1-Max 0.053 V
Dropout Voltage1-Nom 0.3 V
Input Voltage Absolute-Max 45 V
Input Voltage-Max 40 V
Input Voltage-Min 4 V
JESD-30 Code S-PDSO-N6
JESD-609 Code e3
Length 3 mm
Line Regulation-Max 0.0125%
Load Regulation-Max 0.075%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 6
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Output Current1-Max 0.005 A
Output Voltage1-Max 5.075 V
Output Voltage1-Min 4.925 V
Output Voltage1-Nom 5 V
Package Body Material PLASTIC/EPOXY
Package Code HVSON
Package Equivalence Code SOLCC6,.13,38
Package Shape SQUARE
Package Style SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Packing Method TR
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 0.8 mm
Surface Mount YES
Technology BICMOS
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.95 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Voltage Tolerance-Max 1.5%
Width 3 mm

Alternate Parts for MAX15007BATT+T

This table gives cross-reference parts and alternative options found for MAX15007BATT+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX15007BATT+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MAX15007BATT+ Analog Devices Inc Check for Price 40V, Ultra-Low Quiescent-Current Linear Regulators in 6-Pin TDFN/8-Pin SO, 6-LFCSP-3X3X0.75, 6 Pins, -40 to 125C MAX15007BATT+T vs MAX15007BATT+
MAX15007BATT+T Maxim Integrated Products Check for Price Fixed Positive LDO Regulator, 5V, 0.053V Dropout, BICMOS, PDSO6, 3 X 3 MM, ROHS COMPLIANT, TDFN-6 MAX15007BATT+T vs MAX15007BATT+T
MAX15007AATT+T Analog Devices Inc Check for Price 40V, Ultra-Low Quiescent-Current Linear Regulators in 6-Pin TDFN/8-Pin SO, 6-LFCSP-3X3X0.75, 6 Pins, -40 to 125C MAX15007BATT+T vs MAX15007AATT+T
MAX15007BASA+ Maxim Integrated Products Check for Price Fixed Positive LDO Regulator, 5V, 0.053V Dropout, BICMOS, PDSO8, ROHS COMPLIANT, SOP-8 MAX15007BATT+T vs MAX15007BASA+
MAX15009ATJ+ Maxim Integrated Products Check for Price Fixed Positive LDO Regulator, 5V, 1.5V Dropout, BICMOS, 5 X 5 MM, 0.80 MM HEIGHT, LEAD FREE, MO-220WHHD-2, TQFN-32 MAX15007BATT+T vs MAX15009ATJ+
MAX15007BASA+ Analog Devices Inc Check for Price 40V, Ultra-Low Quiescent-Current Linear Regulators in 6-Pin TDFN/8-Pin SO, 8-SOIC_N-150_MIL, 8 Pins, -40 to 125C MAX15007BATT+T vs MAX15007BASA+
MAX15007BASA+T Analog Devices Inc Check for Price 40V, Ultra-Low Quiescent-Current Linear Regulators in 6-Pin TDFN/8-Pin SO, 8-SOIC_N-150_MIL, 8 Pins, -40 to 125C MAX15007BATT+T vs MAX15007BASA+T

MAX15007BATT+T Frequently Asked Questions (FAQ)

  • A good PCB layout for the MAX15007BATT+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the battery voltage and to keep the noise-sensitive analog signals away from the digital signals.

  • The selection of external components for the MAX15007BATT+T depends on the specific application requirements. For example, the input capacitor should be chosen based on the input voltage ripple and the output capacitor should be chosen based on the output voltage ripple and the load current. A good starting point is to use the recommended values in the datasheet and then adjust them based on the specific application requirements.

  • The MAX15007BATT+T has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.

  • To troubleshoot issues with the MAX15007BATT+T, start by checking the input voltage and current, as well as the output voltage and current. Verify that the device is properly connected and that the external components are correctly selected. Check the device's thermal performance and ensure that it is properly heatsinked. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines or contact Analog Devices' technical support.

  • The MAX15007BATT+T is a high-reliability device that is suitable for use in safety-critical applications. However, it's essential to follow proper design and testing procedures to ensure that the device meets the specific requirements of the application. Additionally, it's recommended to consult with Analog Devices' technical support and to review the device's reliability and safety data to ensure that it meets the application's requirements.
