Signal Circuits / Other Signal Circuits / MAX12935BAWE+
Datasheets
MAX12935BAWE+ by:
Analog Devices Inc
Analog Devices Inc
Maxim Integrated Products
Not Found

Two-Channel, Fast, Low Power, 5kVRMS Digital Isolators, 16-SOIC_W-300_MIL, 16 Pins, -40 to 125C

Part Details for MAX12935BAWE+ by Analog Devices Inc

Results Overview of MAX12935BAWE+ by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

MAX12935BAWE+ Information

MAX12935BAWE+ by Analog Devices Inc is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.

A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.

Price & Stock for MAX12935BAWE+

Part # Distributor Description Stock Price Buy
DISTI # 700-MAX12935BAWE+
Mouser Electronics Digital Isolators 2-Channel, 5kVRMS Digital Isolators RoHS: Compliant 251
  • 1 $5.3300
  • 10 $4.0800
  • 25 $3.5900
  • 92 $2.9700
  • 506 $2.9200
  • 1,012 $2.9000
  • 2,530 $2.8300
$2.8300 / $5.3300 Buy Now
Analog Devices Inc 2-Channel, 5kVRMS Digital Isol Package Multiple: 1 9395
  • 1 $6.8600
  • 10 $4.5540
  • 1,000 $2.2000
$2.2000 / $6.8600 Buy Now

Part Details for MAX12935BAWE+

MAX12935BAWE+ CAD Models

  • Part Symbol

    Part Symbol

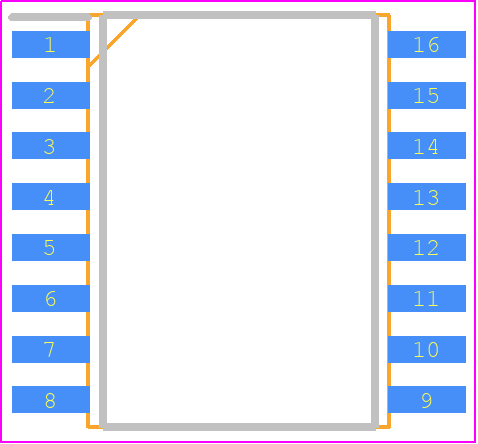

  • Footprint

    footprint

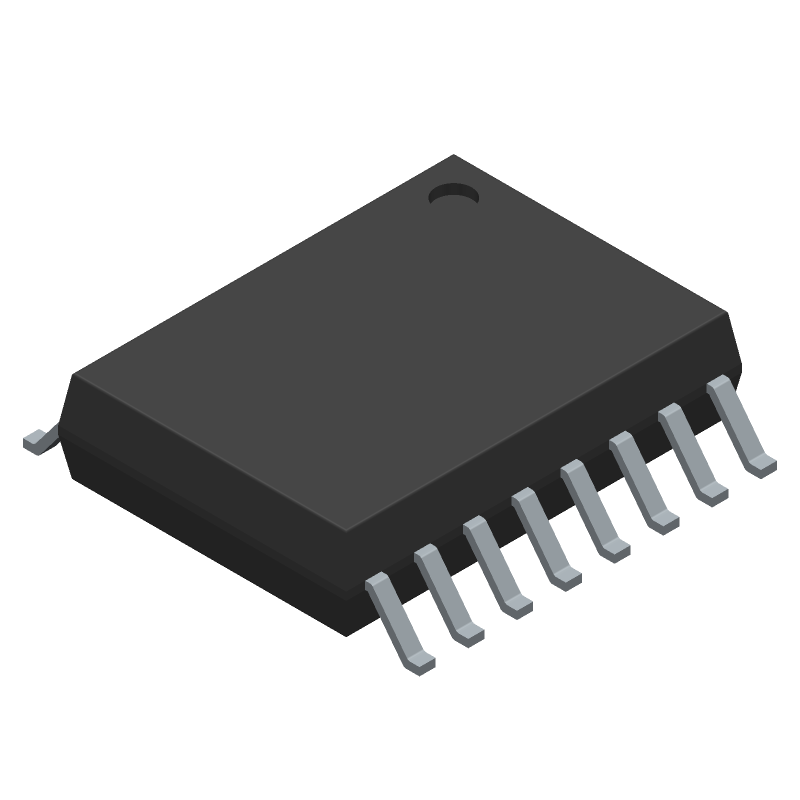

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MAX12935BAWE+ Part Data Attributes

Parametric Data
MAX12935BAWE+ Analog Devices Inc
Buy Now Datasheet
Compare Parts:
MAX12935BAWE+ Analog Devices Inc Two-Channel, Fast, Low Power, 5kVRMS Digital Isolators, 16-SOIC_W-300_MIL, 16 Pins, -40 to 125C
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 16-SOIC_W-300_MIL
Package Description SOIC-16
Pin Count 16
Manufacturer Package Code 16-SOIC_W-300_MIL
Reach Compliance Code compliant
Date Of Intro 2017-12-15
Samacsys Manufacturer Analog Devices
Analog IC - Other Type ANALOG CIRCUIT
JESD-30 Code R-PDSO-G16
Length 10.3 mm
Number of Functions 1
Number of Terminals 16
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Seated Height-Max 2.65 mm
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 1.71 V
Supply Voltage-Nom (Vsup) 1.8 V
Surface Mount YES
Technology BICMOS
Temperature Grade AUTOMOTIVE
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 7.5 mm
