Converters / Analog to Digital Converters / MAX11613EWC+T
Datasheets
MAX11613EWC+T by:
Analog Devices Inc
Analog Devices Inc
Maxim Integrated Products
Not Found

Low-Power, 4-/8-/12-Channel, I<sup>2</sup>C, 12-Bit ADCs in Ultra-Small Packages, 12-WLCSP-N/A, 12 Pins, -40 to 85C

Part Details for MAX11613EWC+T by Analog Devices Inc

Results Overview of MAX11613EWC+T by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Environmental Monitoring Internet of Things (IoT) Smart Cities Agriculture Technology Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Medical Imaging Telecommunications Automotive Consumer Electronics Education and Research Security and Surveillance Computing and Data Storage Aerospace and Defense Healthcare Robotics and Drones

MAX11613EWC+T Information

MAX11613EWC+T by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.

A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.

Price & Stock for MAX11613EWC+T

Part # Distributor Description Stock Price Buy
DISTI # 700-MAX11613EWC+T
Mouser Electronics Analog to Digital Converters - ADC Low-Power, 4-/8-/12-Channel, I C, 12-Bit ADCs in Ultra-Small Pack... ages more RoHS: Compliant 268
  • 1 $5.8000
  • 10 $4.1100
  • 25 $3.8200
  • 100 $3.3600
  • 250 $3.1900
  • 500 $2.8600
  • 1,000 $2.4100
  • 2,500 $2.2900
$2.2900 / $5.8000 Buy Now
Analog Devices Inc Low-Power, 4-/8-/12-Channel, I Min Qty: 1 Package Multiple: 1 662
  • 1 $5.7100
  • 10 $3.7500
  • 25 $3.2380
  • 100 $2.6590
  • 250 $2.3748
  • 500 $2.2000
  • 1,000 $2.1375
  • 2,500 $2.1375
$2.1375 / $5.7100 Buy Now

Part Details for MAX11613EWC+T

MAX11613EWC+T CAD Models

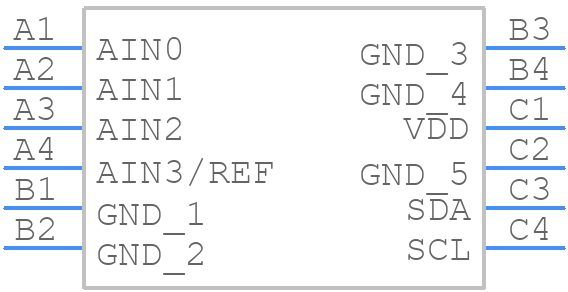

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

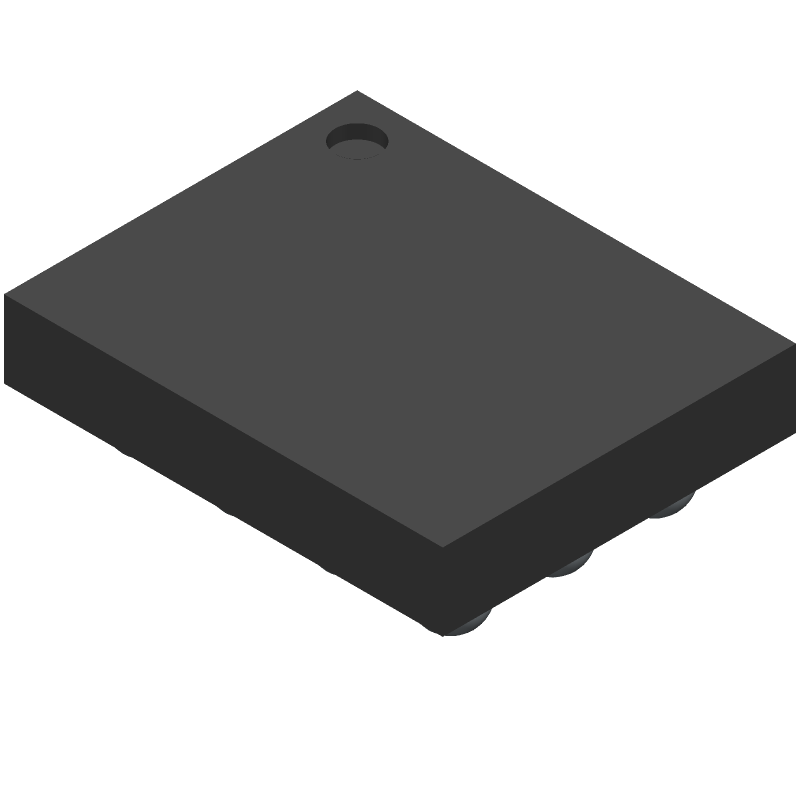

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MAX11613EWC+T Part Data Attributes

Parametric Data
MAX11613EWC+T Analog Devices Inc
Buy Now Datasheet
Compare Parts:
MAX11613EWC+T Analog Devices Inc Low-Power, 4-/8-/12-Channel, I<sup>2</sup>C, 12-Bit ADCs in Ultra-Small Packages, 12-WLCSP-N/A, 12 Pins, -40 to 85C
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 12-WLCSP-N/A
Package Description 1.90 X 2.20 MM, ROHS COMPLIANT, WLP-12
Pin Count 12
Manufacturer Package Code 12-WLCSP-N/A
Reach Compliance Code compliant
Date Of Intro 2009-05-29
Samacsys Manufacturer Analog Devices
Analog Input Voltage-Max 1.8 V
Analog Input Voltage-Min
Conversion Time-Max 7.5 µs
Converter Type ADC, PROPRIETARY METHOD
JESD-30 Code R-PBGA-B12
JESD-609 Code e1
Length 2.215 mm
Linearity Error-Max (EL) 0.0244%
Moisture Sensitivity Level 1
Number of Analog In Channels 4
Number of Bits 12
Number of Functions 1
Number of Terminals 12
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Bit Code 2'S COMPLEMENT BINARY
Output Format SERIAL
Package Body Material PLASTIC/EPOXY
Package Code VFBGA
Package Equivalence Code BGA12,3X4,20
Package Shape RECTANGULAR
Package Style GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Sample and Hold / Track and Hold TRACK
Seated Height-Max 0.69 mm
Supply Voltage-Nom 3 V
Surface Mount YES
Technology BICMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form BALL
Terminal Pitch 0.5 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 30
Width 1.885 mm

Alternate Parts for MAX11613EWC+T

This table gives cross-reference parts and alternative options found for MAX11613EWC+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX11613EWC+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MAX11613EWC+T Maxim Integrated Products Check for Price ADC, Proprietary Method, 12-Bit, 1 Func, 4 Channel, Serial Access, BICMOS, PBGA12, 1.90 X 2.20 MM, ROHS COMPLIANT, WLP-12 MAX11613EWC+T vs MAX11613EWC+T
MAX11613EWC+ Maxim Integrated Products Check for Price ADC, Proprietary Method, 12-Bit, 1 Func, 4 Channel, Serial Access, BICMOS, PBGA12, 1.90 X 2.20 MM, ROHS COMPLIANT, WLP-12 MAX11613EWC+T vs MAX11613EWC+

MAX11613EWC+T Frequently Asked Questions (FAQ)

  • A good PCB layout for the MAX11613EWC+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to minimize the length of the analog signal traces.

  • The MAX11613EWC+T has a thermal pad on the bottom of the package that should be connected to a thermal plane on the PCB to dissipate heat. A thermal via array can be used to connect the thermal pad to the thermal plane. Additionally, the device should be placed in a well-ventilated area and away from heat sources.

  • The recommended input voltage range for the MAX11613EWC+T is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and accuracy.

  • The MAX11613EWC+T does not require calibration. It is a plug-and-play device that is factory-calibrated to provide accurate conversions. However, the device's performance can be affected by the quality of the input signal and the PCB layout.

  • The maximum sampling rate of the MAX11613EWC+T is 1Msps (million samples per second). However, the actual sampling rate may be limited by the system's clock frequency and the device's conversion time.
