Datasheets
MAX11102ATB+ by:
Analog Devices Inc
Analog Devices Inc
Maxim Integrated Products
Not Found

2Msps/3Msps, Low-Power, Serial 12-/10-/8-Bit ADCs, 10-LFCSP-3X3X0.75, 10 Pins, -40 to 125C

Part Details for MAX11102ATB+ by Analog Devices Inc

Results Overview of MAX11102ATB+ by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MAX11102ATB+ Information

MAX11102ATB+ by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.

A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.

Price & Stock for MAX11102ATB+

Part # Distributor Description Stock Price Buy
Analog Devices Inc 2.2V to 3.6V, 12-Bit, 2MSPS SA Package Multiple: 1 0
Buy Now

Part Details for MAX11102ATB+

MAX11102ATB+ CAD Models

There are no models available for this part yet.

Sign in to request this CAD model.

Register or Sign In

MAX11102ATB+ Part Data Attributes

MAX11102ATB+ Analog Devices Inc
Buy Now Datasheet
Compare Parts:
MAX11102ATB+ Analog Devices Inc 2Msps/3Msps, Low-Power, Serial 12-/10-/8-Bit ADCs, 10-LFCSP-3X3X0.75, 10 Pins, -40 to 125C
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC

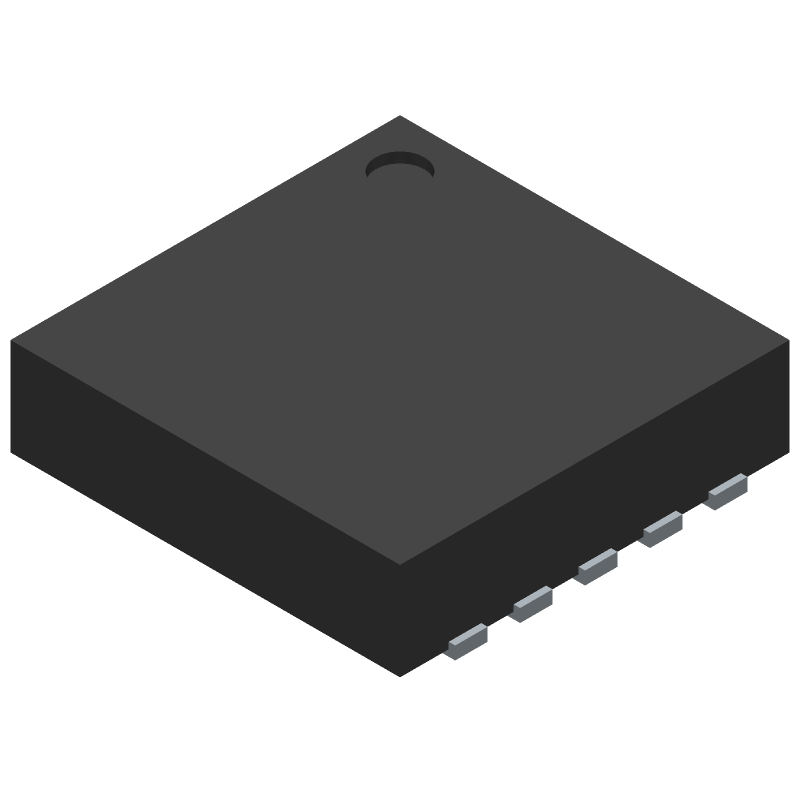

Part Package Code 10-LFCSP-3X3X0.75
Package Description 3 X 3 MM, ROHS COMPLIANT, TDFN-10
Pin Count 10
Manufacturer Package Code 10-LFCSP-3X3X0.75
Reach Compliance Code compliant
Date Of Intro 2010-06-07
Analog Input Voltage-Max 3.65 V
Analog Input Voltage-Min
Converter Type ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code S-PDSO-N10
JESD-609 Code e3
Length 3 mm
Linearity Error-Max (EL) 0.0244%
Moisture Sensitivity Level 1
Number of Analog In Channels 2
Number of Bits 12
Number of Functions 1
Number of Terminals 10
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Bit Code BINARY
Output Format SERIAL
Package Body Material PLASTIC/EPOXY
Package Code HVSON
Package Equivalence Code SOLCC10,.11,20
Package Shape SQUARE
Package Style SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Sample Rate 2 MHz
Sample and Hold / Track and Hold SAMPLE
Seated Height-Max 0.8 mm
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3 mm

Alternate Parts for MAX11102ATB+

This table gives cross-reference parts and alternative options found for MAX11102ATB+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX11102ATB+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MAX11102ATB+T Analog Devices Inc Check for Price 2Msps/3Msps, Low-Power, Serial 12-/10-/8-Bit ADCs, 10-LFCSP-3X3X0.75, 10 Pins, -40 to 125C MAX11102ATB+ vs MAX11102ATB+T
MAX11102ATB+ Maxim Integrated Products Check for Price ADC, Successive Approximation, 12-Bit, 1 Func, 2 Channel, Serial Access, CMOS, PDSO10, 3 X 3 MM, ROHS COMPLIANT, TDFN-10 MAX11102ATB+ vs MAX11102ATB+
Part Number Manufacturer Composite Price Description Compare
MAX11103ATB+T Analog Devices Inc Check for Price 2Msps/3Msps, Low-Power, Serial 12-/10-/8-Bit ADCs, 10-LFCSP-3X3X0.75, 10 Pins, -40 to 125C MAX11102ATB+ vs MAX11103ATB+T
MAX11103ATB+ Analog Devices Inc Check for Price 2Msps/3Msps, Low-Power, Serial 12-/10-/8-Bit ADCs, 10-LFCSP-3X3X0.75, 10 Pins, -40 to 125C MAX11102ATB+ vs MAX11103ATB+
MAX11102AUB+T Maxim Integrated Products Check for Price ADC, Successive Approximation, 12-Bit, 1 Func, 2 Channel, Serial Access, CMOS, PDSO10, 3 X 5 MM, ROHS COMPLIAT, UMAX-10 MAX11102ATB+ vs MAX11102AUB+T
MAX11102AUB/V+ Analog Devices Inc Check for Price 2Msps/3Msps, Low-Power, Serial 12-/10-/8-Bit ADCs, 10-MINI_SO_EP-N/A, 10 Pins, -40 to 125C MAX11102ATB+ vs MAX11102AUB/V+
MAX11102AUB/V+ Maxim Integrated Products $4.2792 ADC, Successive Approximation, 12-Bit, 1 Func, 2 Channel, Serial Access, CMOS, PDSO10, 3 X 5 MM, ROHS COMPLIAT, UMAX-10 MAX11102ATB+ vs MAX11102AUB/V+
MAX11666AUB/V+T Analog Devices Inc Check for Price 500ksps, Low-Power, Serial 12-/10-/8-Bit ADCs, 10-MINI_SO_EP-N/A, 10 Pins, -40 to 125C MAX11102ATB+ vs MAX11666AUB/V+T
MAX11102AUB+T Analog Devices Inc Check for Price 2Msps/3Msps, Low-Power, Serial 12-/10-/8-Bit ADCs, 10-MINI_SO_EP-N/A, 10 Pins, -40 to 125C MAX11102ATB+ vs MAX11102AUB+T
MAX11666AUB+ Analog Devices Inc Check for Price 500ksps, Low-Power, Serial 12-/10-/8-Bit ADCs, 10-MINI_SO_EP-N/A, 10 Pins, -40 to 125C MAX11102ATB+ vs MAX11666AUB+
MAX11102AUB+ Analog Devices Inc Check for Price 2Msps/3Msps, Low-Power, Serial 12-/10-/8-Bit ADCs, 10-MINI_SO_EP-N/A, 10 Pins, -40 to 125C MAX11102ATB+ vs MAX11102AUB+
MAX11103ATB+T Maxim Integrated Products Check for Price ADC, Successive Approximation, 12-Bit, 1 Func, 2 Channel, Serial Access, CMOS, PDSO10, 3 X 3 MM, ROHS COMPLIANT, TDFN-10 MAX11102ATB+ vs MAX11103ATB+T
