Memory / EEPROMs / M95640-DRDW3TP/K
Datasheets
M95640-DRDW3TP/K by: STMicroelectronics

Automotive 64 Kbit SPI bus EEPROM with high speed clock

Part Details for M95640-DRDW3TP/K by STMicroelectronics

Results Overview of M95640-DRDW3TP/K by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Computing and Data Storage Telecommunications

M95640-DRDW3TP/K Information

M95640-DRDW3TP/K by STMicroelectronics is an EEPROM.
EEPROMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for M95640-DRDW3TP/K

Part # Distributor Description Stock Price Buy
DISTI # 25AH9929
Newark Eeprom, Aec-Q100, 64Kbit, -40To125Deg C, Memory Size:64Kbit, Eeprom Memory Configuration:8K X 8Bit... , Memory Interface Type:Serial Spi, Clock Frequency:20Mhz, Memory Case Style:Tssop, No. Of Pins:8Pins, Supply Voltage Min:1.7V, Supply Rohs Compliant: Yes |Stmicroelectronics M95640-DRDW3TP/K more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 1 $1.1600
  • 10 $1.0100
  • 25 $0.9880
  • 50 $0.9660
  • 100 $0.9450
  • 250 $0.9360
  • 500 $0.9260
  • 1,000 $0.9030
$0.9030 / $1.1600 Buy Now
DISTI # 497-14460-1-ND
DigiKey IC EEPROM 64KBIT SPI 8TSSOP Min Qty: 1 Lead time: 14 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 5313
In Stock
  • 1 $0.7600
  • 10 $0.7110
  • 25 $0.6920
  • 50 $0.6770
  • 100 $0.6621
  • 250 $0.6422
  • 500 $0.6271
  • 1,000 $0.6121
  • 4,000 $0.5991
  • 8,000 $0.5840
  • 12,000 $0.5754
$0.5754 / $0.7600 Buy Now
DISTI # M95640-DRDW3TP/K
Avnet Americas EEPROM, 64 Kbit, 8K x 8bit, SPI, 20 MHz, TSSOP, 8 Pins - Tape and Reel (Alt: M95640-DRDW3TP/K) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 14 Weeks, 0 Days Container: Reel 0
  • 4,000 $0.4787
  • 8,000 $0.4757
  • 16,000 $0.4669
  • 24,000 $0.4584
  • 32,000 $0.4502
$0.4502 / $0.4787 Buy Now
DISTI # 511-M95640-DRDW3TP/K
Mouser Electronics EEPROM Auto 64Kb SPI bus EEPROM RoHS: Compliant 692
  • 1 $0.7800
  • 10 $0.6970
  • 100 $0.6610
  • 500 $0.6460
  • 1,000 $0.6300
  • 4,000 $0.5580
$0.5580 / $0.7800 Buy Now
STMicroelectronics Automotive 64 Kbit SPI bus EEPROM with high speed clock RoHS: Compliant Min Qty: 1 692
  • 1 $0.7600
  • 10 $0.6800
  • 100 $0.6500
  • 500 $0.6300
$0.6300 / $0.7600 Buy Now
Future Electronics M95640 Series 64 Kb (8 K x 8) 20 MHz Automotive Serial SPI bus EEPROMs - TSSOP-8 RoHS: Compliant pbFree: Yes Min Qty: 4000 Package Multiple: 4000 Lead time: 14 Weeks Container: Reel 0
Reel
  • 4,000 $0.4600
$0.4600 Buy Now
Quest Components EEPROM, 8KX8, SERIAL, CMOS, PDSO8 3670
  • 1 $1.4270
  • 842 $0.6564
  • 1,524 $0.5993
$0.5993 / $1.4270 Buy Now
DISTI # M95640-DRDW3TP/K
Avnet Silica EEPROM 64 Kbit 8K x 8bit SPI 20 MHz TSSOP 8 Pins (Alt: M95640-DRDW3TP/K) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 15 Weeks, 0 Days Silica - 36000
Buy Now
DISTI # M95640-DRDW3TP/K
Avnet Silica EEPROM 64 Kbit 8K x 8bit SPI 20 MHz TSSOP 8 Pins (Alt: M95640-DRDW3TP/K) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 15 Weeks, 0 Days Silica - 4000
Buy Now
DISTI # M95640-DRDW3TP/K
EBV Elektronik EEPROM 64 Kbit 8K x 8bit SPI 20 MHz TSSOP 8 Pins (Alt: M95640-DRDW3TP/K) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 15 Weeks, 0 Days EBV - 20000
Buy Now
LCSC SPI TSSOP-8 EEPROM ROHS 38
  • 1 $2.0368
  • 10 $1.7381
  • 30 $1.5510
  • 100 $1.3594
  • 500 $1.2719
  • 1,000 $1.2342
$1.2342 / $2.0368 Buy Now
Vyrian Memory ICs 11601
RFQ

Part Details for M95640-DRDW3TP/K

M95640-DRDW3TP/K CAD Models

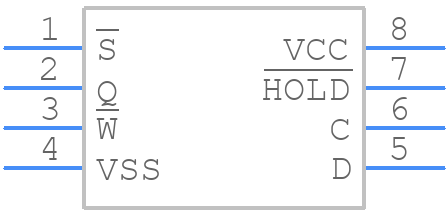

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

M95640-DRDW3TP/K Part Data Attributes

Parametric Data
M95640-DRDW3TP/K STMicroelectronics
Buy Now Datasheet
Compare Parts:
M95640-DRDW3TP/K STMicroelectronics Automotive 64 Kbit SPI bus EEPROM with high speed clock
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code SOIC
Package Description 0.169 INCH, HALOGEN FREE AND ROHS COMPLIANT, TSSOP-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Factory Lead Time 14 Weeks
Samacsys Manufacturer STMicroelectronics
Clock Frequency-Max (fCLK) 5 MHz
Data Retention Time-Min 40
Endurance 4000000 Write/Erase Cycles
JESD-30 Code R-PDSO-G8
Length 4.4 mm
Memory Density 65536 bit
Memory IC Type EEPROM
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Number of Words 8192 words
Number of Words Code 8000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Organization 8KX8
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Screening Level AEC-Q100
Seated Height-Max 1.2 mm
Serial Bus Type SPI
Standby Current-Max 0.000001 A
Supply Current-Max 0.005 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 1.8 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 3 mm
Write Cycle Time-Max (tWC) 4 ms
Write Protection HARDWARE/SOFTWARE

M95640-DRDW3TP/K Related Parts

M95640-DRDW3TP/K Frequently Asked Questions (FAQ)

  • STMicroelectronics recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.

  • To ensure reliable data retention, it's essential to follow the recommended storage conditions (–40°C to +125°C) and avoid exposing the device to temperatures above the specified range. Additionally, use a reliable power supply and ensure the device is not subjected to voltage dips or power cycling.

  • The M95640-DRDW3TP/K supports up to 1 million write cycles, making it suitable for applications that require frequent data updates.

  • The M95640-DRDW3TP/K is not designed to operate in radiation-intensive environments. If your application requires radiation tolerance, consider using a different device or consulting with STMicroelectronics for custom solutions.

  • The recommended clock frequency for the M95640-DRDW3TP/K is up to 20 MHz. Operating the device at higher frequencies may compromise its performance and reliability.
