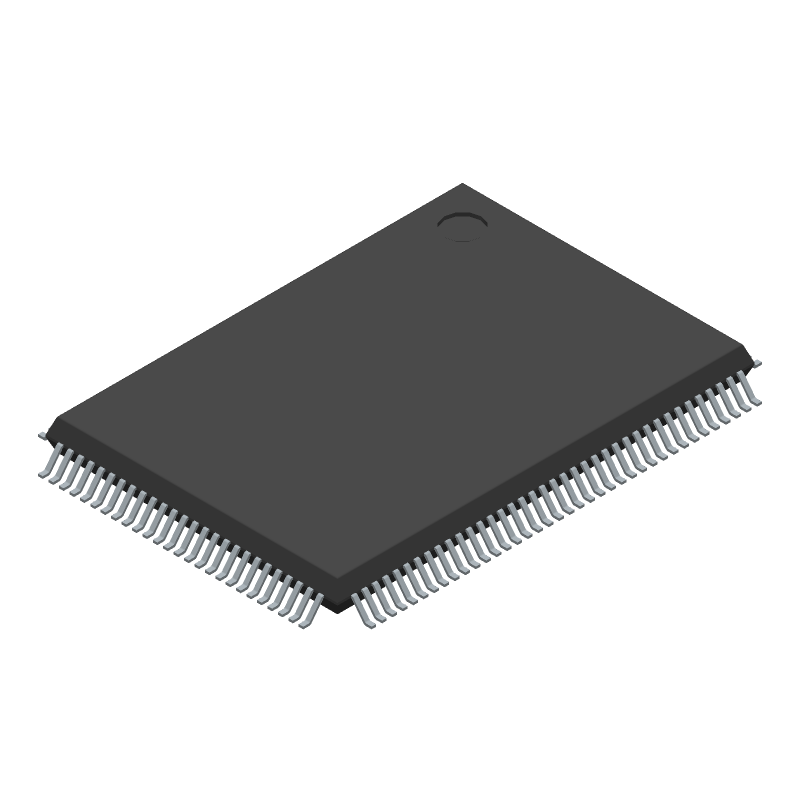

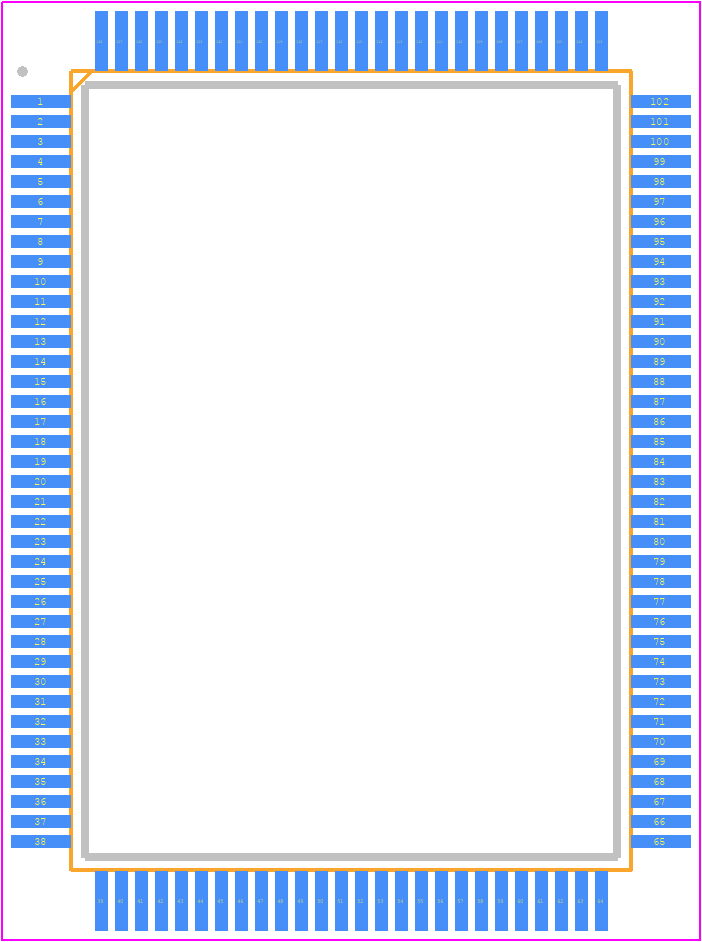

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for M30625FGPGP#U5C by Renesas Electronics Corporation
Results Overview of M30625FGPGP#U5C by Renesas Electronics Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
M30625FGPGP#U5C Information
M30625FGPGP#U5C by Renesas Electronics Corporation is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for M30625FGPGP#U5C
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
559-M30625FGPGP#U5C-ND
|
DigiKey | IC MCU 16BIT 256KB FLSH 128LFQFP Min Qty: 72 Lead time: 18 Weeks Container: Tray | Limited Supply - Call |
|
$26.6549 | Buy Now |
|
DISTI #
M30625FGPGP#U5C
|
Avnet Americas | MCU 16-bit/32-bit M16C CISC 256KB Flash 3.3V/5V 128-Pin LQFP - Trays (Alt: M30625FGPGP#U5C) RoHS: Compliant Min Qty: 72 Package Multiple: 72 Lead time: 12 Weeks, 0 Days Container: Tray | 0 |
|
$24.4000 | Buy Now |
|
DISTI #
968-M30625FGPGP#U5C
|
Mouser Electronics | 16-bit Microcontrollers - MCU MCU 3/5V 256K Pb-free 128-LQFP RoHS: Compliant | 0 |
|
Order Now | |
|
DISTI #
M30625FGPGP#U5C
|
Avnet Silica | MCU 16bit32bit M16C CISC 256KB Flash 33V5V 128Pin LQFP (Alt: M30625FGPGP#U5C) RoHS: Compliant Min Qty: 72 Package Multiple: 72 Lead time: 20 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for M30625FGPGP#U5C
M30625FGPGP#U5C CAD Models
M30625FGPGP#U5C Part Data Attributes
|
|
M30625FGPGP#U5C
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
M30625FGPGP#U5C
Renesas Electronics Corporation
16-bit Microcomputers (Non Promotion), LQFP, /
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | LQFP | |
| Package Description | LFQFP, QFP128,.63X.87,20 | |
| Pin Count | 128 | |
| Manufacturer Package Code | PLQP0128KB | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Has ADC | YES | |
| Additional Feature | ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 10 MHZ | |
| Address Bus Width | 20 | |
| Bit Size | 16 | |
| Boundary Scan | NO | |
| CPU Family | M16C | |
| Clock Frequency-Max | 16 MHz | |
| DAC Channels | YES | |
| DMA Channels | YES | |
| External Data Bus Width | 16 | |
| JESD-30 Code | R-PQFP-G128 | |
| Length | 20 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of I/O Lines | 114 | |
| Number of Terminals | 128 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -20 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP128,.63X.87,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 20480 | |
| ROM (words) | 262144 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.7 mm | |
| Speed | 24 MHz | |
| Supply Current-Max | 27 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.2 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 14 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
Alternate Parts for M30625FGPGP#U5C
This table gives cross-reference parts and alternative options found for M30625FGPGP#U5C. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M30625FGPGP#U5C, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| M30627FHPGP#U3C | Renesas Electronics Corporation | $16.8382 | 16-bit Microcomputers (Non Promotion), LQFP, / | M30625FGPGP#U5C vs M30627FHPGP#U3C |
| M30627FJPGP#U5C | Renesas Electronics Corporation | Check for Price | 16-bit Microcomputers (Non Promotion), LQFP, / | M30625FGPGP#U5C vs M30627FJPGP#U5C |
| M30627FHPGP#D3C | Renesas Electronics Corporation | Check for Price | 16-bit Microcomputers (Non Promotion), LQFP, / | M30625FGPGP#U5C vs M30627FHPGP#D3C |
| M30627FJPGP#D5C | Renesas Electronics Corporation | Check for Price | 16-bit Microcomputers (Non Promotion), LQFP, / | M30625FGPGP#U5C vs M30627FJPGP#D5C |
| M30627FJPGP#U3C | Renesas Electronics Corporation | Check for Price | 16-bit Microcomputers (Non Promotion), LQFP, / | M30625FGPGP#U5C vs M30627FJPGP#U3C |
| M30627MJP-XXXGP#U0 | Renesas Electronics Corporation | Check for Price | 16-bit Microcomputers (Non Promotion), LQFP, / | M30625FGPGP#U5C vs M30627MJP-XXXGP#U0 |
| M30625MHP-XXXGP#U0 | Renesas Electronics Corporation | Check for Price | 16-bit Microcomputers (Non Promotion), LQFP, / | M30625FGPGP#U5C vs M30625MHP-XXXGP#U0 |
| M30627FHPGP#U9C | Renesas Electronics Corporation | Check for Price | 16-bit Microcomputers (Non Promotion), LQFP, / | M30625FGPGP#U5C vs M30627FHPGP#U9C |
| M30623MWP-XXXGP#U0 | Renesas Electronics Corporation | Check for Price | 16-bit Microcomputers (Non Promotion), LQFP, / | M30625FGPGP#U5C vs M30623MWP-XXXGP#U0 |
| M30627FHPGP#D7C | Renesas Electronics Corporation | Check for Price | 16-bit Microcomputers (Non Promotion), LQFP, / | M30625FGPGP#U5C vs M30627FHPGP#D7C |
