Memory / EEPROMs / M24C32-DFDW6TP
Datasheets
M24C32-DFDW6TP by: STMicroelectronics

32 Kbit serial I<sup>2</sup>C bus EEPROM

Part Details for M24C32-DFDW6TP by STMicroelectronics

Results Overview of M24C32-DFDW6TP by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Computing and Data Storage

M24C32-DFDW6TP Information

M24C32-DFDW6TP by STMicroelectronics is an EEPROM.
EEPROMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for M24C32-DFDW6TP

Part # Distributor Description Stock Price Buy
DISTI # 47AK6670
Newark Eeprom, 32Kbit, -40 To 85Deg C Rohs Compliant: Yes |Stmicroelectronics M24C32-DFDW6TP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1943
  • 1 $0.3910
  • 10 $0.3620
  • 25 $0.3540
  • 50 $0.3460
  • 100 $0.3380
  • 250 $0.3370
  • 500 $0.3360
  • 1,000 $0.3260
$0.3260 / $0.3910 Buy Now
DISTI # 48W6576
Newark Eeprom S. I2C |Stmicroelectronics M24C32-DFDW6TP RoHS: Not Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
DISTI # 497-16067-1-ND
DigiKey IC EEPROM 32KBIT I2C 1MHZ 8TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 31023
In Stock
  • 1 $0.3300
  • 10 $0.3160
  • 25 $0.3076
  • 50 $0.3012
  • 100 $0.2948
  • 250 $0.2862
  • 500 $0.2798
  • 1,000 $0.2732
  • 4,000 $0.2678
  • 8,000 $0.2612
  • 12,000 $0.2573
  • 20,000 $0.2526
  • 28,000 $0.2494
  • 40,000 $0.2462
$0.2462 / $0.3300 Buy Now
DISTI # M24C32-DFDW6TP
Avnet Americas EEPROM Serial-I2C 32K-bit 4K x 8 1.8V/2.5V/3.3V/5V 8-Pin TSSOP T/R - Tape and Reel (Alt: M24C32-DFDW... 6TP) more RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 6 Weeks, 0 Days Container: Reel 0
  • 4,000 $0.2039
  • 8,000 $0.2029
  • 16,000 $0.2019
  • 24,000 $0.2009
  • 32,000 $0.1998
$0.1998 / $0.2039 Buy Now
DISTI # 511-M24C32-DFDW6TP
Mouser Electronics EEPROM 32 Kbit I2C EEProm 4kB 2.5V to 5.5V RoHS: Compliant 6834
  • 1 $0.3100
  • 10 $0.2630
  • 100 $0.2570
  • 500 $0.2540
  • 1,000 $0.2510
  • 4,000 $0.2260
  • 8,000 $0.2250
$0.2250 / $0.3100 Buy Now
DISTI # V36:1790_06553587
Arrow Electronics EEPROM Serial-I2C 32K-bit 4K x 8 1.8V/2.5V/3.3V/5V 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 6 Weeks Date Code: 2435 Americas - 8000
  • 4,000 $0.2904
$0.2904 Buy Now
DISTI # V72:2272_06553587
Arrow Electronics EEPROM Serial-I2C 32K-bit 4K x 8 1.8V/2.5V/3.3V/5V 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2246 Container: Cut Strips Americas - 595
  • 1 $0.3084
  • 10 $0.3054
  • 25 $0.3023
  • 100 $0.2993
  • 250 $0.2963
  • 500 $0.2933
$0.2933 / $0.3084 Buy Now
STMicroelectronics 32 Kbit serial I2C bus EEPROM RoHS: Compliant Min Qty: 1 6834
  • 1 $0.3000
  • 10 $0.2600
  • 100 $0.2500
  • 500 $0.2500
$0.2500 / $0.3000 Buy Now
DISTI # 86895774
Verical EEPROM Serial-I2C 32K-bit 4K x 8 1.8V/2.5V/3.3V/5V 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Date Code: 2435 Americas - 8000
  • 4,000 $0.2904
$0.2904 Buy Now
DISTI # 66399942
Verical EEPROM Serial-I2C 32K-bit 4K x 8 1.8V/2.5V/3.3V/5V 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 34 Package Multiple: 1 Date Code: 2246 Americas - 595
  • 34 $0.3023
  • 100 $0.2993
  • 250 $0.2963
  • 500 $0.2933
$0.2933 / $0.3023 Buy Now
DISTI # M24C32-DFDW6TP
TME IC: EEPROM memory, 32kbEEPROM, I2C, 4kx8bit, 1.7÷5.5V, 1MHz, TSSOP8 Min Qty: 1 3946
  • 1 $0.2890
  • 100 $0.2390
  • 1,000 $0.2240
  • 2,500 $0.2170
  • 4,000 $0.2130
$0.2130 / $0.2890 Buy Now
DISTI # M24C32-DFDW6TP
Avnet Silica EEPROM SerialI2C 32Kbit 4K x 8 18V25V33V5V 8Pin TSSOP TR (Alt: M24C32-DFDW6TP) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 7 Weeks, 0 Days Silica - 24000
Buy Now
DISTI # M24C32-DFDW6TP
EBV Elektronik EEPROM SerialI2C 32Kbit 4K x 8 18V25V33V5V 8Pin TSSOP TR (Alt: M24C32-DFDW6TP) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 7 Weeks, 0 Days EBV - 44000
Buy Now

Part Details for M24C32-DFDW6TP

M24C32-DFDW6TP CAD Models

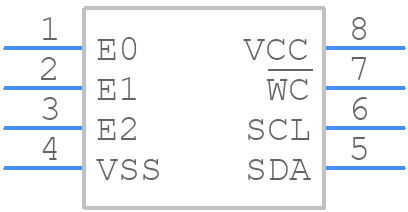

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

M24C32-DFDW6TP Part Data Attributes

Parametric Data
M24C32-DFDW6TP STMicroelectronics
Buy Now Datasheet
Compare Parts:
M24C32-DFDW6TP STMicroelectronics 32 Kbit serial I<sup>2</sup>C bus EEPROM
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Package Description TSSOP-8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Factory Lead Time 6 Weeks
Samacsys Manufacturer STMicroelectronics
Clock Frequency-Max (fCLK) 1 MHz
Data Retention Time-Min 40
Endurance 1000000 Write/Erase Cycles
I2C Control Byte 1010DDDR
JESD-30 Code R-PDSO-G8
JESD-609 Code e4
Length 4.4 mm
Memory Density 32768 bit
Memory IC Type EEPROM
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Number of Words 4096 words
Number of Words Code 4000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 4KX8
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Screening Level AEC-Q100
Seated Height-Max 1.2 mm
Serial Bus Type I2C
Standby Current-Max 0.000001 A
Supply Current-Max 0.005 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 1.7 V
Supply Voltage-Nom (Vsup) 1.8 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3 mm
Write Cycle Time-Max (tWC) 5 ms
Write Protection HARDWARE

M24C32-DFDW6TP Related Parts

M24C32-DFDW6TP Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the M24C32-DFDW6TP is 1 MHz.

  • The M24C32-DFDW6TP has 32 Kbits (4 Kbytes) of user memory.

  • The M24C32-DFDW6TP has a write endurance of 1 million cycles.

  • The M24C32-DFDW6TP has a data retention period of 50 years.

  • Yes, the M24C32-DFDW6TP is compatible with the I2C bus protocol.
