Memory / EEPROMs / M24C08-DRDW3TP/K
Datasheets
M24C08-DRDW3TP/K by: STMicroelectronics

Automotive 8-Kbit serial I<sup>2</sup>C bus EEPROM

Part Details for M24C08-DRDW3TP/K by STMicroelectronics

Results Overview of M24C08-DRDW3TP/K by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

M24C08-DRDW3TP/K Information

M24C08-DRDW3TP/K by STMicroelectronics is an EEPROM.
EEPROMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for M24C08-DRDW3TP/K

Part # Distributor Description Stock Price Buy
DISTI # 47AK6668
Newark Eeprom, 8Kbit, -40 To 125Deg C Rohs Compliant: Yes |Stmicroelectronics M24C08-DRDW3TP/K RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 2516
  • 1 $0.5380
  • 10 $0.5290
  • 25 $0.5050
  • 50 $0.4810
  • 100 $0.4570
  • 250 $0.4520
  • 500 $0.4470
  • 1,000 $0.4390
$0.4390 / $0.5380 Buy Now
DISTI # 497-15733-1-ND
DigiKey IC EEPROM 8KBIT I2C 1MHZ 8TSSOP Min Qty: 1 Lead time: 14 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 7242
In Stock
  • 1 $0.4300
  • 10 $0.4050
  • 25 $0.3944
  • 50 $0.3864
  • 100 $0.3781
  • 250 $0.3670
  • 500 $0.3586
  • 1,000 $0.3502
  • 4,000 $0.3430
  • 8,000 $0.3345
  • 12,000 $0.3296
  • 20,000 $0.3234
  • 28,000 $0.3194
$0.3194 / $0.4300 Buy Now
DISTI # M24C08-DRDW3TP/K
Avnet Americas EEPROM Serial-I2C 8K-bit 1K x 8 2.5V/3.3V/5V 8-Pin TSSOP T/R - Tape and Reel (Alt: M24C08-DRDW3TP/K) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 14 Weeks, 0 Days Container: Reel 0
  • 4,000 $0.2709
  • 8,000 $0.2695
  • 16,000 $0.2681
  • 24,000 $0.2668
  • 32,000 $0.2654
$0.2654 / $0.2709 Buy Now
DISTI # 511-M24C08-DRDW3TP/K
Mouser Electronics EEPROM Automotive 8-Kbit serial I2C bus EEPROM RoHS: Compliant 12098
  • 1 $0.4200
  • 10 $0.3980
  • 100 $0.3450
  • 500 $0.3350
  • 1,000 $0.3300
  • 4,000 $0.3290
  • 24,000 $0.2810
$0.2810 / $0.4200 Buy Now
STMicroelectronics Automotive 8-Kbit serial I2C bus EEPROM RoHS: Compliant Min Qty: 1 12098
  • 1 $0.4100
  • 10 $0.4100
  • 100 $0.3400
  • 500 $0.3300
$0.3300 / $0.4100 Buy Now
Future Electronics Automotive 8-Kbit serial I²C bus EEPROM with 1 MHz clock RoHS: Compliant pbFree: Yes Min Qty: 4000 Package Multiple: 4000 Lead time: 14 Weeks 0
  • 4,000 $0.2320
  • 8,000 $0.2290
  • 12,000 $0.2280
  • 16,000 $0.2260
$0.2260 / $0.2320 Buy Now
DISTI # M24C08-DRDW3TP/K
Avnet Silica EEPROM SerialI2C 8Kbit 1K x 8 25V33V5V 8Pin TSSOP TR (Alt: M24C08-DRDW3TP/K) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 15 Weeks, 0 Days Silica - 12000
Buy Now
DISTI # M24C08-DRDW3TP/K
EBV Elektronik EEPROM SerialI2C 8Kbit 1K x 8 25V33V5V 8Pin TSSOP TR (Alt: M24C08-DRDW3TP/K) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 15 Weeks, 0 Days EBV - 0
Buy Now
LCSC I2C TSSOP-8 EEPROM ROHS 20
  • 1 $0.8600
  • 10 $0.7031
  • 30 $0.6231
  • 100 $0.5462
  • 500 $0.4979
  • 1,000 $0.4738
$0.4738 / $0.8600 Buy Now

Part Details for M24C08-DRDW3TP/K

M24C08-DRDW3TP/K CAD Models

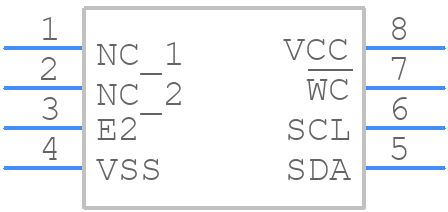

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

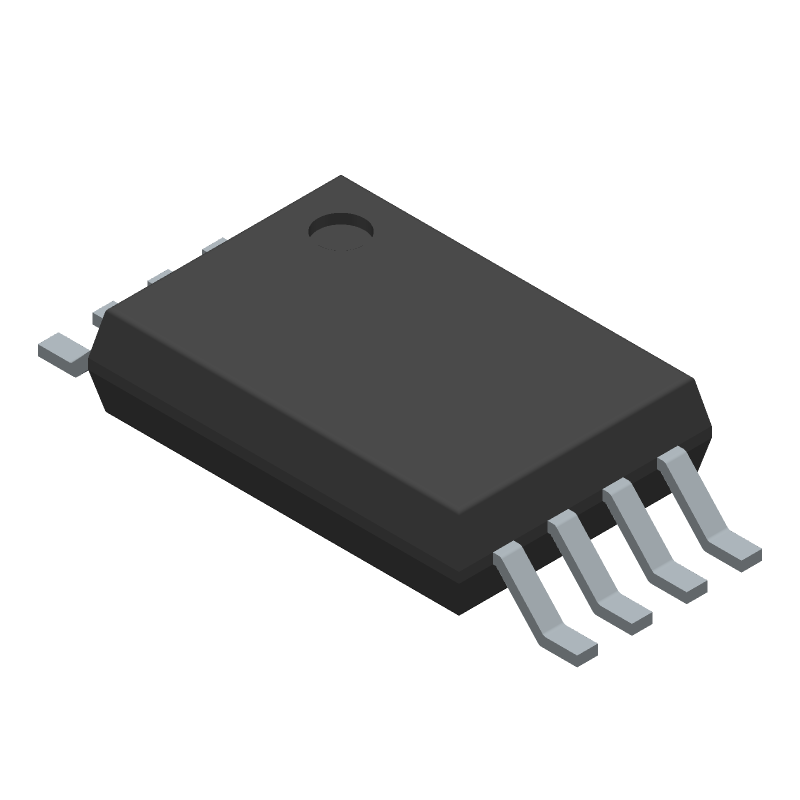

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

M24C08-DRDW3TP/K Part Data Attributes

Parametric Data
M24C08-DRDW3TP/K STMicroelectronics
Buy Now Datasheet
Compare Parts:
M24C08-DRDW3TP/K STMicroelectronics Automotive 8-Kbit serial I<sup>2</sup>C bus EEPROM
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Factory Lead Time 14 Weeks
Samacsys Manufacturer STMicroelectronics
Clock Frequency-Max (fCLK) 1 MHz
Data Retention Time-Min 50
Endurance 600000 Write/Erase Cycles
I2C Control Byte 1010DXXR
JESD-30 Code R-PDSO-G8
JESD-609 Code e4
Length 4.4 mm
Memory Density 8192 bit
Memory IC Type EEPROM
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Number of Words 1024 words
Number of Words Code 1000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Organization 1KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 260
Programming Voltage 2.5 V
Screening Level AEC-Q100
Seated Height-Max 1.2 mm
Serial Bus Type I2C
Standby Current-Max 0.00002 A
Supply Current-Max 0.002 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 1.7 V
Supply Voltage-Nom (Vsup) 2.5 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 3 mm
Write Protection HARDWARE

M24C08-DRDW3TP/K Related Parts

M24C08-DRDW3TP/K Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the M24C08-DRDW3TP/K is 1 MHz.

  • The M24C08-DRDW3TP/K has 8 Kbits (1 Kbyte) of EEPROM memory.

  • The write endurance of the M24C08-DRDW3TP/K is 4 million write cycles.

  • The data retention period of the M24C08-DRDW3TP/K is 40 years at 85°C.

  • Yes, the M24C08-DRDW3TP/K is compatible with the I2C bus protocol.
