Power Circuits / Switching Regulator or Controllers / LTM4680IY#PBF
Datasheets
LTM4680IY#PBF by: Analog Devices Inc

Dual 30A or Single 60A µModule Regulator with Digital Power System Management

Part Details for LTM4680IY#PBF by Analog Devices Inc

Results Overview of LTM4680IY#PBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

LTM4680IY#PBF Information

LTM4680IY#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LTM4680IY#PBF

Part # Distributor Description Stock Price Buy
DISTI # 50AK4397
Newark Dc-Dc Converter, 0.5V-3.3V, 60A, Power Supply Applications:-, Dc/Dc Converter Type:Bga-144, Micro ... Module, Output Power Max:-, Output Voltage Min:500Mv, Output Voltage Max:3.3V, Output Current Max:60A, Input Voltage Dc Min:4.5V Rohs Compliant: Yes |Analog Devices LTM4680IY#PBF more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 0
  • 1 $114.6100
  • 5 $112.7900
  • 10 $110.9700
$110.9700 / $114.6100 Buy Now
DISTI # 505-LTM4680IY#PBF-ND
DigiKey DC DC CNVRTR 0.5-3.3V 0.5-3.3V Min Qty: 1 Lead time: 39 Weeks Container: Tray 61
In Stock
  • 1 $124.2900
  • 5 $119.6580
  • 10 $117.7130
  • 25 $115.1864
  • 84 $111.9217
$111.9217 / $124.2900 Buy Now
DISTI # 584-LTM4680IY#PBF
Mouser Electronics Switching Voltage Regulators Dual 30A or Single 60A Module Regulator with Digital Power System Mana... gement more RoHS: Compliant 52
  • 1 $120.3000
  • 10 $111.9300
$111.9300 / $120.3000 Buy Now
Analog Devices Inc Dual 30A, Single 60A µM Reg Package Multiple: 84 1357
  • 1 $124.2900
  • 10 $117.7130
  • 25 $115.1864
  • 1,000 $75.0900
$75.0900 / $124.2900 Buy Now
DISTI # 42660868
Verical Dual 30A or Single 60A µModule Regulator with Digital Power System Management Min Qty: 84 Package Multiple: 84 Americas - 1344
  • 84 $94.4528
$94.4528 Buy Now
DISTI # 86320191
Verical Dual 30A or Single 60A µModule Regulator with Digital Power System Management Min Qty: 48 Package Multiple: 48 Date Code: 2437 Americas - 48
  • 48 $202.8802
$202.8802 Buy Now
Ameya Holding Limited   10
Buy Now RFQ
DISTI # LTM4680IY#PBF
Richardson RFPD POWER MANAGEMENT IC RoHS: Compliant Min Qty: 84 0
  • 84 $112.6400
  • 100 $106.3800
  • 500 $103.5000
  • 1,000 $100.7800
  • 5,000 $96.9500
$96.9500 / $112.6400 Buy Now
Vyrian Other Function Semiconductors 151
RFQ
Win Source Electronics DC DC CNVRTR 0.5-3.3V 0.5-3.3V / Non-Isolated PoL Module DC DC Converter 2 Output 0.5 ~ 3.3V 0.5 ~ 3... .3V 30A, 30A 4.5V - 16V Input more 756
  • 1 $153.8028
  • 2 $142.8170
  • 3 $137.3240
  • 4 $131.8311
$131.8311 / $153.8028 Buy Now

Part Details for LTM4680IY#PBF

LTM4680IY#PBF CAD Models

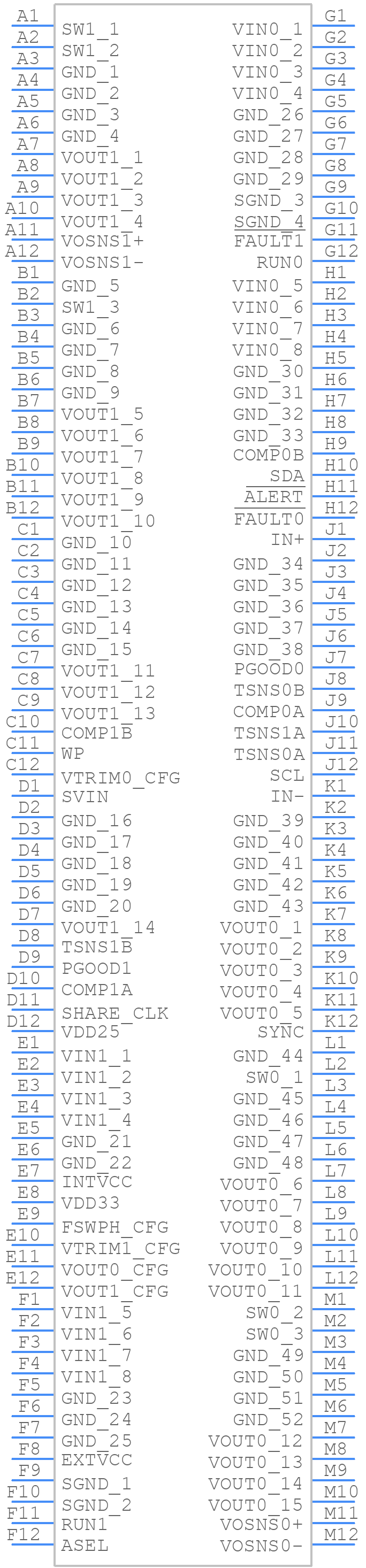

  • Part Symbol

    Part Symbol

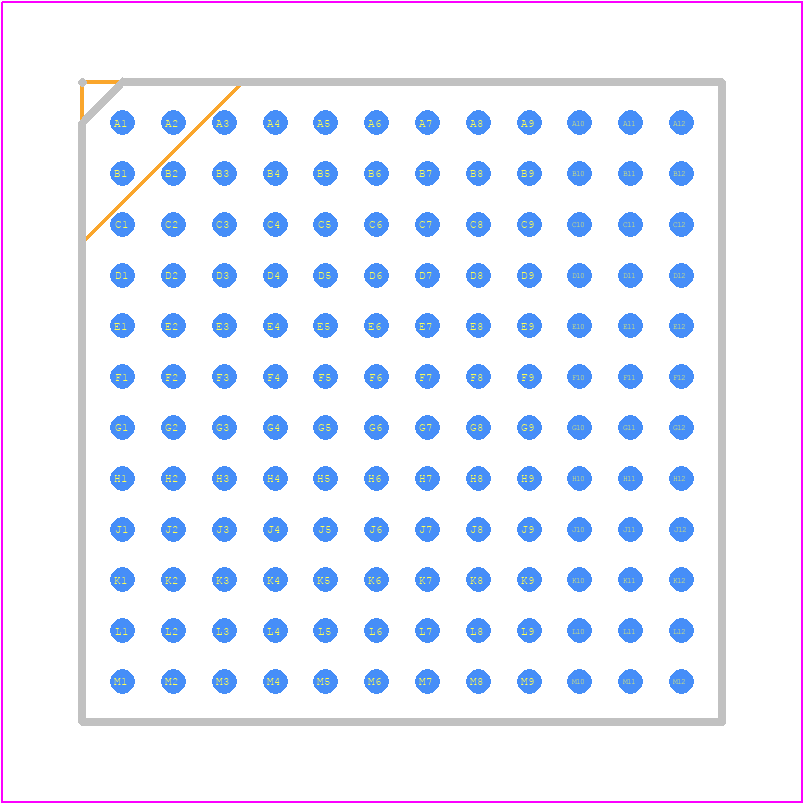

  • Footprint

    footprint

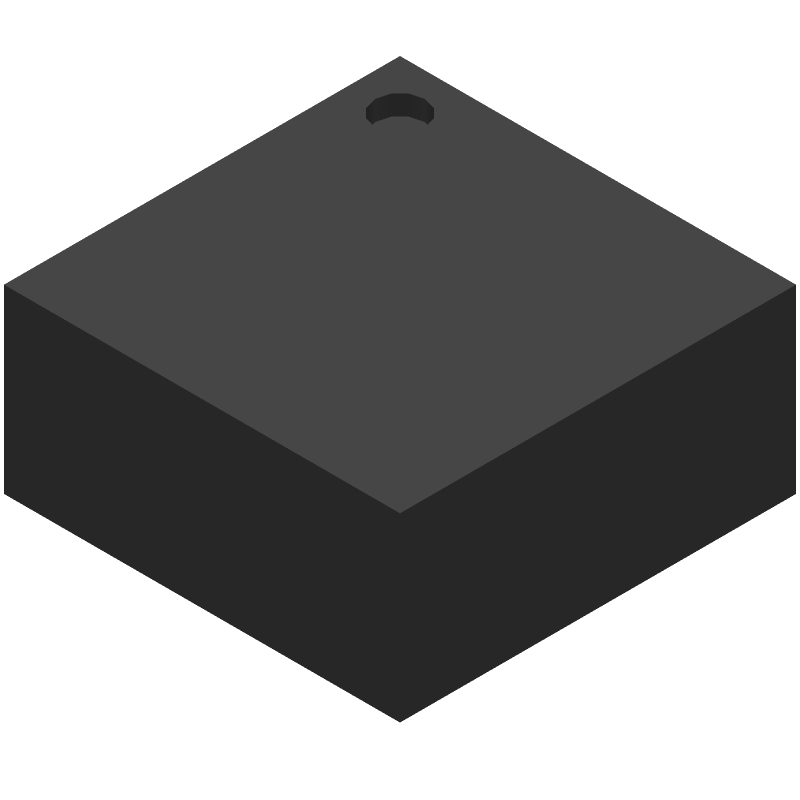

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LTM4680IY#PBF Part Data Attributes

Parametric Data
LTM4680IY#PBF Analog Devices Inc
Buy Now Datasheet
Compare Parts:
LTM4680IY#PBF Analog Devices Inc Dual 30A or Single 60A µModule Regulator with Digital Power System Management
Select a part to compare:
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Package Description BGA-144
Pin Count 144
Manufacturer Package Code 05-08-1583
Reach Compliance Code compliant
Date Of Intro 2018-12-20
Samacsys Manufacturer Analog Devices
Additional Feature OUTPUT VOLTAGE RANGE: 0.5V TO 3.3V
Analog IC - Other Type DUAL SWITCHING CONTROLLER
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Max 16 V
Input Voltage-Min 4.5 V
Input Voltage-Nom 12 V
JESD-30 Code R-PBGA-B144
Length 16 mm
Number of Functions 1
Number of Terminals 144
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code BGA
Package Shape RECTANGULAR
Package Style GRID ARRAY
Peak Reflow Temperature (Cel) NOT SPECIFIED
Seated Height-Max 8.07 mm
Surface Mount YES
Switcher Configuration BUCK
Switching Frequency-Max 350 kHz
Technology HYBRID
Temperature Grade AUTOMOTIVE
Terminal Form BALL
Terminal Pitch 1.27 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 16 mm

LTM4680IY#PBF Frequently Asked Questions (FAQ)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The top layer should have a large copper area for heat dissipation, and the device should be placed near a thermal pad or heat sink.

  • Use a soft-start circuit to limit the inrush current during start-up, and ensure that the input voltage rises slowly (e.g., 10ms to 100ms) to prevent excessive current draw. For shutdown, use a soft-shutdown circuit to gradually reduce the output voltage.

  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10uF to 22uF is recommended. The capacitor should be placed close to the VIN pin and have a low inductance path to the device.

  • Use a low-noise input voltage source, add a noise filter (e.g., RC filter) at the input, and ensure good PCB layout practices (e.g., separate analog and digital grounds, minimize loop areas). Additionally, use a low-ESR output capacitor and consider adding a post-regulator or filter stage.

  • The maximum ambient temperature for reliable operation is 85°C, but this can be extended to 105°C with proper heat sinking and airflow. However, the device's reliability and lifespan may be affected at higher temperatures.
