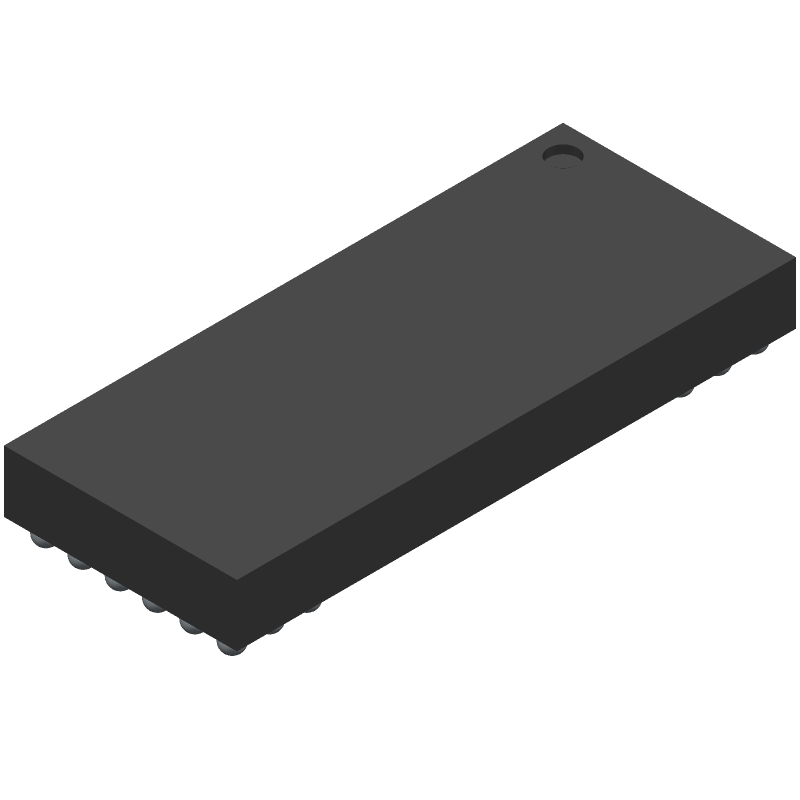

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTM2893CY-1#PBF by Analog Devices Inc
Results Overview of LTM2893CY-1#PBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LTM2893CY-1#PBF Information
LTM2893CY-1#PBF by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTM2893CY-1#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LTM2893CY-1#PBF-ND
|
DigiKey | DGTL ISOLTR 6KV 10CH SPI 36-BGA Min Qty: 1 Lead time: 10 Weeks Container: Tray |
160 In Stock |
|
$13.0847 / $20.2700 | Buy Now |
|
DISTI #
584-LTM2893CY-1#PBF
|
Mouser Electronics | Digital Isolators 100MHz Iso ADC Serial Int RoHS: Compliant | 0 |
|
$11.9700 / $11.9800 | Order Now |
|
|
Analog Devices Inc | 100MHz Iso ADC Serial Int Package Multiple: 160 | 32 |
|
$9.5800 / $20.6900 | Buy Now |
|
|
Rochester Electronics | LTM2893 - 100MHz SPI ADC uModule Isolator (read only) RoHS: Compliant Status: Active Min Qty: 1 | 640 |
|
$10.0600 / $12.5700 | Buy Now |
|
DISTI #
LTM2893CY-1#PBF
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 160 | 0 |
|
$12.3700 / $13.5800 | Buy Now |
Part Details for LTM2893CY-1#PBF
LTM2893CY-1#PBF CAD Models
LTM2893CY-1#PBF Part Data Attributes
|
|
LTM2893CY-1#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTM2893CY-1#PBF
Analog Devices Inc
100MHz Isolated ADC Serial Interface
Select a part to compare: |
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | BGA-36 | |
| Pin Count | 36 | |
| Manufacturer Package Code | 05-08-1987 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PBGA-B36 | |
| Length | 15 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 36 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | BGA | |
| Package Equivalence Code | BGA36,6X15,40 | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY | |
| Peak Reflow Temperature (Cel) | 260 | |
| Sample Rate | 100 MHz | |
| Seated Height-Max | 2.26 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | BALL | |
| Terminal Pitch | 1 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 6.25 mm |
