LTC6228IS8#PBF by: Analog Devices Inc

0.88nV/√Hz 730MHz, 500V/µs, Low Distortion Rail-to-Rail Output Op Amps with Shutdown

Part Details for LTC6228IS8#PBF by Analog Devices Inc

Results Overview of LTC6228IS8#PBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

LTC6228IS8#PBF Information

LTC6228IS8#PBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for LTC6228IS8#PBF

Part # Distributor Description Stock Price Buy
DISTI # 50AK3841
Newark Op-Amp, 890Mhz, -40 To 85Deg C, Nsoic-8, No. Of Channels:1Channels, Gain Bandwidth Product:890Mhz,... Supply Voltage Range:2.8 To 11.75V, Ic Case/Package:Nsoic, No. Of Pins:8Pins, Amplifier Type:General Purpose, Product Range:- Rohs Compliant: Yes |Analog Devices LTC6228IS8#PBF more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 93
  • 1 $6.4300
  • 10 $3.9800
  • 25 $3.7700
  • 50 $3.5600
  • 100 $3.3500
  • 300 $2.9000
  • 500 $2.7500
$2.7500 / $6.4300 Buy Now
DISTI # 505-LTC6228IS8#PBF-ND
DigiKey IC OPAMP GP 1 CIRCUIT 8SO Min Qty: 1 Lead time: 10 Weeks Container: Tube 5811
In Stock
  • 1 $6.4700
  • 10 $4.2790
  • 25 $3.7076
  • 100 $3.0611
  • 300 $2.6889
  • 500 $2.5484
  • 1,000 $2.5375
$2.5375 / $6.4700 Buy Now
Vyrian Amplifiers 2190
RFQ

Part Details for LTC6228IS8#PBF

LTC6228IS8#PBF CAD Models

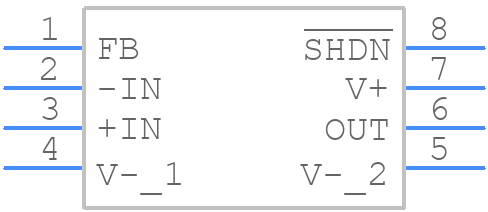

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LTC6228IS8#PBF Part Data Attributes

Parametric Data
LTC6228IS8#PBF Analog Devices Inc
Buy Now Datasheet
Compare Parts:
LTC6228IS8#PBF Analog Devices Inc 0.88nV/√Hz 730MHz, 500V/µs, Low Distortion Rail-to-Rail Output Op Amps with Shutdown
Select a part to compare:
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer ANALOG DEVICES INC
Package Description SOIC-8
Pin Count 8
Manufacturer Package Code 05-08-1610 (S8)
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Samacsys Manufacturer Analog Devices
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 4.1 µA
Bandwidth (3dB)-Nom 730 MHz
Bias Current-Max (IIB) @25C 2.5 µA
Common-mode Reject Ratio-Min 94 dB
Common-mode Reject Ratio-Nom 110 dB
Input Offset Current-Max (IIO) 1 µA
Input Offset Voltage-Max 250 µV
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9025 mm
Low-Bias NO
Low-Offset YES
Micropower NO
Neg Supply Voltage Limit-Max -6 V
Neg Supply Voltage-Nom (Vsup) -5 V
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUT LINE
Power NO
Programmable Power NO
Seated Height-Max 1.752 mm
Slew Rate-Min 250 V/us
Slew Rate-Nom 500 V/us
Supply Current-Max 39.6 mA
Supply Voltage Limit-Max 6 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Unity Gain BW-Nom 890000
Voltage Gain-Min 113
Wideband YES
Width 3.9 mm

Alternate Parts for LTC6228IS8#PBF

This table gives cross-reference parts and alternative options found for LTC6228IS8#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC6228IS8#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LTC6228HS8#PBF Analog Devices Inc $3.6180 0.88nV/√Hz 730MHz, 500V/µs, Low Distortion Rail-to-Rail Output Op Amps with Shutdown LTC6228IS8#PBF vs LTC6228HS8#PBF
LTC6228HDC#TRPBF Analog Devices Inc Check for Price 0.88nV/√Hz 730MHz, 500V/µs, Low Distortion Rail-to-Rail Output Op Amps with Shutdown LTC6228IS8#PBF vs LTC6228HDC#TRPBF
LTC6228HS6#TRMPBF Analog Devices Inc Check for Price 0.88nV/√Hz 730MHz, 500V/µs, Low Distortion Rail-to-Rail Output Op Amps with Shutdown LTC6228IS8#PBF vs LTC6228HS6#TRMPBF
LTC6228HDC#TRMPBF Analog Devices Inc $3.2625 0.88nV/√Hz 730MHz, 500V/µs, Low Distortion Rail-to-Rail Output Op Amps with Shutdown LTC6228IS8#PBF vs LTC6228HDC#TRMPBF
LTC6228IDC#TRPBF Analog Devices Inc Check for Price 0.88nV/√Hz 730MHz, 500V/µs, Low Distortion Rail-to-Rail Output Op Amps with Shutdown LTC6228IS8#PBF vs LTC6228IDC#TRPBF
LTC6228IS6#TRPBF Analog Devices Inc Check for Price 0.88nV/√Hz 730MHz, 500V/µs, Low Distortion Rail-to-Rail Output Op Amps with Shutdown LTC6228IS8#PBF vs LTC6228IS6#TRPBF

LTC6228IS8#PBF Frequently Asked Questions (FAQ)

  • The maximum power dissipation of the LTC6228IS8 is dependent on the thermal resistance of the package and the ambient temperature. According to the datasheet, the maximum power dissipation is approximately 1.4W at 25°C ambient temperature.

  • To optimize the layout for the LTC6228IS8, it is recommended to follow the guidelines provided in the datasheet, including keeping the input and output traces short and away from each other, using a solid ground plane, and minimizing the loop area of the input and output traces.

  • The recommended input capacitance for the LTC6228IS8 is 10nF to 100nF, depending on the input frequency and desired noise rejection. A larger input capacitance can help to reduce noise and ripple, but may also increase the startup time.

  • The LTC6228IS8 is rated for operation from -40°C to 125°C, but the maximum junction temperature is 150°C. It is recommended to derate the power dissipation at high temperatures to ensure reliable operation.

  • To troubleshoot oscillations or instability issues with the LTC6228IS8, check the layout and ensure that the input and output traces are properly routed, and that the input and output capacitors are properly sized. Also, check the power supply voltage and ensure that it is within the recommended range.
