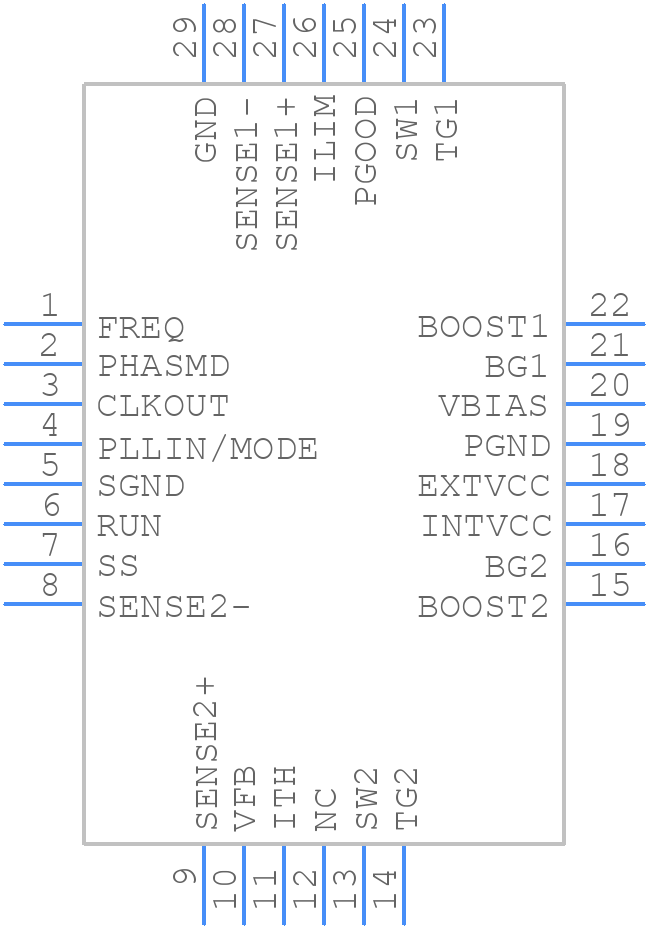

Part Symbol
-
Footprint
-

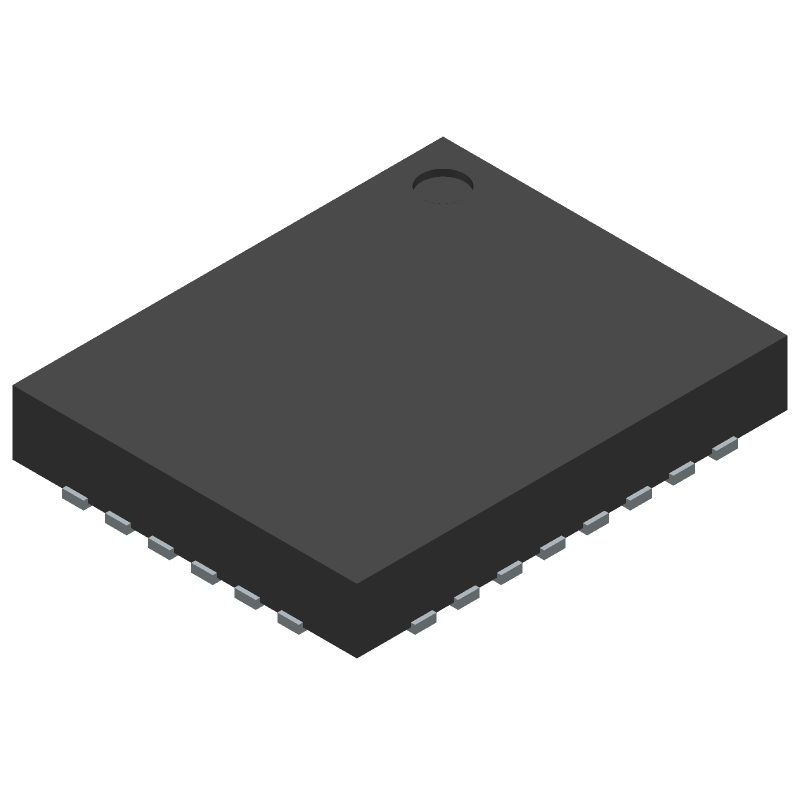

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC3787HUFD#PBF by Analog Devices Inc
Results Overview of LTC3787HUFD#PBF by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LTC3787HUFD#PBF Information
LTC3787HUFD#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC3787HUFD#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
02AM2437
|
Newark | Dc/Dc Ctrl, Sync Boost, 760Khz, Qfn-Ep Rohs Compliant: Yes |Analog Devices LTC3787HUFD#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$7.1200 / $14.1400 | Buy Now |
|
DISTI #
505-LTC3787HUFD#PBF-ND
|
DigiKey | IC REG CTRLR BOOST 28QFN Min Qty: 1 Lead time: 10 Weeks Container: Tube |
133 In Stock |
|
$6.4125 / $12.8600 | Buy Now |
|
DISTI #
584-LTC3787HUFD#PBF
|
Mouser Electronics | Switching Voltage Regulators PolyPhSync Boost Cntr RoHS: Compliant | 131 |
|
$6.4100 / $11.4700 | Buy Now |
|
DISTI #
V36:1790_06478231
|
Arrow Electronics | DC/DC Cntrlr Single-OUT Step Up 900kHz 28-Pin QFN EP Tube RoHS: Compliant Min Qty: 73 Package Multiple: 73 Lead time: 10 Weeks Date Code: 2250 | Americas - 2628 |
|
$5.3450 / $5.4970 | Buy Now |
|
|
Analog Devices Inc | PolyPhSync Boost Cntr Package Multiple: 73 | 392 |
|
$5.1300 / $12.8600 | Buy Now |
|
DISTI #
66360431
|
Verical | DC/DC Cntrlr Single-OUT Step Up 900kHz 28-Pin QFN EP Tube RoHS: Compliant Min Qty: 73 Package Multiple: 73 Date Code: 2250 | Americas - 2628 |
|
$5.3450 / $5.4970 | Buy Now |
|
DISTI #
35216717
|
Verical | DC/DC Cntrlr Single-OUT Step Up 900kHz 28-Pin QFN EP Tube RoHS: Compliant Min Qty: 73 Package Multiple: 73 | Americas - 365 |
|
$6.4528 | Buy Now |
|
DISTI #
82749138
|
Verical | DC/DC Cntrlr Single-OUT Step Up 900kHz 28-Pin QFN EP Tube RoHS: Compliant Min Qty: 43 Package Multiple: 43 Date Code: 2317 | Americas - 43 |
|
$6.1300 | Buy Now |
|
DISTI #
LTC3787HUFD#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 73 | 0 |
|
$6.6200 / $7.6900 | Buy Now |
Part Details for LTC3787HUFD#PBF
LTC3787HUFD#PBF CAD Models
LTC3787HUFD#PBF Part Data Attributes
|
|
LTC3787HUFD#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC3787HUFD#PBF
Analog Devices Inc
PolyPhase Synchronous Boost Controller
Select a part to compare: |
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 4 X 5 MM, LEAD FREE, PLASTIC, MO-220, QFN-28 | |
| Pin Count | 28 | |
| Manufacturer Package Code | 05-08-1712 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | ALSO HAS OUTPUT VOLTAGE UP TO 60V | |
| Analog IC - Other Type | SWITCHING CONTROLLER | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 38 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PQCC-N28 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BOOST | |
| Switching Frequency-Max | 585 kHz | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 4 mm |
Alternate Parts for LTC3787HUFD#PBF
This table gives cross-reference parts and alternative options found for LTC3787HUFD#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC3787HUFD#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC3787IUFD#TRPBF | Linear Technology | Check for Price | LTC3787 - PolyPhase Synchronous Boost Controller; Package: QFN; Pins: 28; Temperature Range: -40°C to 85°C | LTC3787HUFD#PBF vs LTC3787IUFD#TRPBF |
| LTC3787IUFD#PBF | Analog Devices Inc | $7.0441 | PolyPhase Synchronous Boost Controller | LTC3787HUFD#PBF vs LTC3787IUFD#PBF |
| LTC3787IUFD#PBF | Linear Technology | Check for Price | LTC3787 - PolyPhase Synchronous Boost Controller; Package: QFN; Pins: 28; Temperature Range: -40°C to 85°C | LTC3787HUFD#PBF vs LTC3787IUFD#PBF |
| LTC3787EUFD#TRPBF | Analog Devices Inc | $5.5248 | PolyPhase Synchronous Boost Controller | LTC3787HUFD#PBF vs LTC3787EUFD#TRPBF |
LTC3787HUFD#PBF Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the LTC3787 is 60V, but it's recommended to keep it below 50V for reliable operation.
-
The inductor value depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor selection guide in the datasheet, and then adjust based on your specific application's requirements.
-
The SYNC pin allows synchronization of multiple LTC3787 devices or other switching regulators. It can be used to synchronize the switching frequency of multiple devices to reduce electromagnetic interference (EMI).
-
To ensure safe operation, make sure to follow the guidelines in the datasheet for input voltage, output current, and junction temperature. Also, ensure that the device is properly heatsinked and that the thermal design is adequate for your application.
-
Follow the recommended layout and placement guidelines in the datasheet to minimize electromagnetic interference (EMI) and ensure reliable operation. Keep the high-frequency nodes (e.g., SW, VIN) away from sensitive analog nodes, and use a solid ground plane to reduce noise.
