Converters / Analog to Digital Converters / LTC2353CLX-16#PBF
Datasheets
LTC2353CLX-16#PBF by:
Analog Devices Inc
Analog Devices Inc
Linear Technology
Not Found

Buffered Dual, 16-Bit, 550ksps/Channel Differential ±10.24V ADC with 30VP-P Common Mode Range

Part Details for LTC2353CLX-16#PBF by Analog Devices Inc

Results Overview of LTC2353CLX-16#PBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

LTC2353CLX-16#PBF Information

LTC2353CLX-16#PBF by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.

A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.

Price & Stock for LTC2353CLX-16#PBF

Part # Distributor Description Stock Price Buy
DISTI # 01AM4742
Newark Adc, 16Bit, 550Ksps, 0 To 70Deg C Rohs Compliant: Yes |Analog Devices LTC2353CLX-16#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 185
  • 1 $21.9700
  • 5 $21.1600
  • 10 $20.3900
$20.3900 / $21.9700 Buy Now
DISTI # LTC2353CLX-16#PBF-ND
DigiKey IC ADC 16BIT SAR 48LQFP Min Qty: 1 Lead time: 10 Weeks Container: Tray 154
In Stock
  • 1 $21.7300
  • 10 $19.0620
$19.0620 / $21.7300 Buy Now
DISTI # 584-LTC2353CLX16#PBF
Mouser Electronics Analog to Digital Converters - ADC Buffered Dual, 16-Bit, 550ksps/Channel Differential 10.24V ADC w... ith 30VP-P Common Mode Range more RoHS: Compliant 255
  • 1 $20.7700
  • 10 $19.0700
  • 250 $19.0600
$19.0600 / $20.7700 Buy Now
Analog Devices Inc Bufed 2x, 16-B, 550ksps/Ch Dif Package Multiple: 250 31
  • 1 $20.7700
  • 10 $19.0620
  • 1,000 $15.2500
$15.2500 / $20.7700 Buy Now
DISTI # LTC2353CLX-16PB
Richardson RFPD CONVERTER - ADC RoHS: Compliant Min Qty: 250 0
  • 250 $21.6000
  • 500 $21.0200
  • 1,000 $20.4700
  • 5,000 $19.6900
$19.6900 / $21.6000 Buy Now

Part Details for LTC2353CLX-16#PBF

LTC2353CLX-16#PBF CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

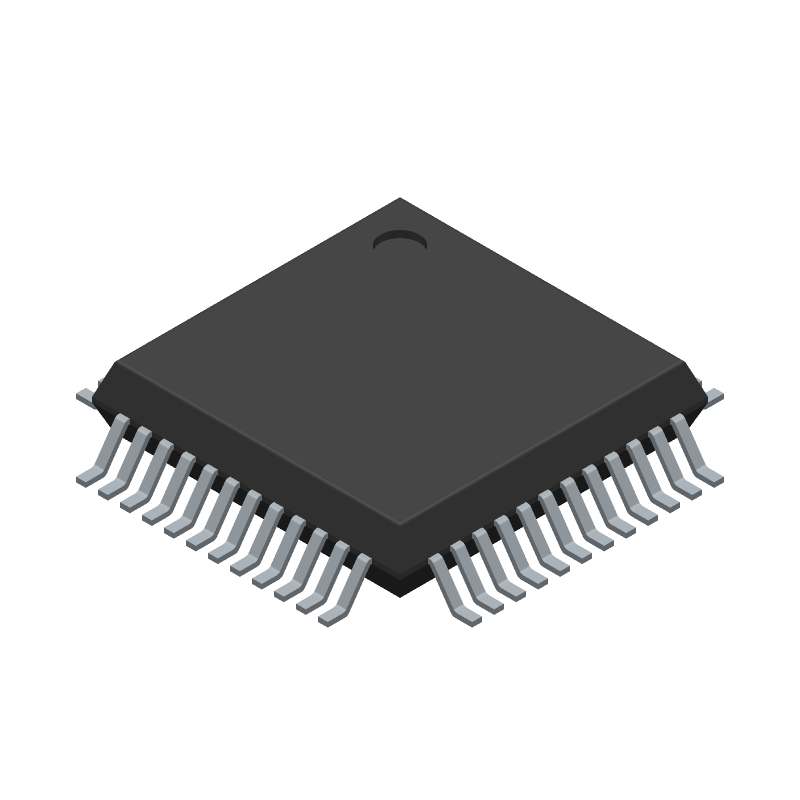

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LTC2353CLX-16#PBF Part Data Attributes

Parametric Data
LTC2353CLX-16#PBF Analog Devices Inc
Buy Now Datasheet
Compare Parts:
LTC2353CLX-16#PBF Analog Devices Inc Buffered Dual, 16-Bit, 550ksps/Channel Differential ±10.24V ADC with 30VP-P Common Mode Range
Select a part to compare:
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Package Description LQFP-48
Pin Count 48
Manufacturer Package Code 05-08-1760
Reach Compliance Code compliant
HTS Code 8542.39.00.01
Samacsys Manufacturer Analog Devices
Analog Input Voltage-Max 10.2525 V
Analog Input Voltage-Min -10.2275 V
Conversion Time-Max 1.1 µs
Converter Type ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code S-PQFP-G48
JESD-609 Code e3
Length 7 mm
Linearity Error-Max (EL) 0.0023%
Moisture Sensitivity Level 3
Number of Analog In Channels 2
Number of Bits 16
Number of Functions 1
Number of Terminals 48
Operating Temperature-Max 70 °C
Operating Temperature-Min
Output Bit Code BINARY, 2'S COMPLEMENT BINARY
Output Format SERIAL
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Sample Rate 0.55 MHz
Sample and Hold / Track and Hold SAMPLE
Seated Height-Max 1.6 mm
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Width 7 mm

Alternate Parts for LTC2353CLX-16#PBF

This table gives cross-reference parts and alternative options found for LTC2353CLX-16#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC2353CLX-16#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LTC2353CLX-16#PBF Linear Technology Check for Price LTC2353-16 - Buffered Dual, 16-Bit, 550ksps/Ch Differential ±10.24V ADC with 30VP-P Common Mode Range; Package: LQFP; Pins: 48; Temperature Range: 0°C to 70°C LTC2353CLX-16#PBF vs LTC2353CLX-16#PBF

LTC2353CLX-16#PBF Frequently Asked Questions (FAQ)

  • A good layout and routing practice for the LTC2353CLX-16#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a low-impedance source for the analog input and to decouple the power supply pins with capacitors.

  • The LTC2353CLX-16#PBF has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then using the device's calibration registers to adjust the gain and offset to achieve the desired accuracy. The datasheet provides more details on the calibration procedure.

  • The maximum sampling rate of the LTC2353CLX-16#PBF is 1.5Msps (megasamples per second). However, the actual sampling rate may be limited by the system's clock frequency, the analog input bandwidth, and the digital interface used to communicate with the device.

  • Yes, the LTC2353CLX-16#PBF can be used in a multi-channel application. The device has a serial interface that allows multiple devices to be daisy-chained together, enabling the conversion of multiple analog input channels. However, the maximum number of channels that can be converted simultaneously depends on the system's clock frequency and the desired sampling rate.

  • The LTC2353CLX-16#PBF has internal overvoltage and undervoltage protection circuits that prevent damage to the device in case of input voltage exceeding the specified range. The device can withstand input voltages up to ±20V without damage, but the accuracy of the conversion may be affected if the input voltage exceeds the specified range.
