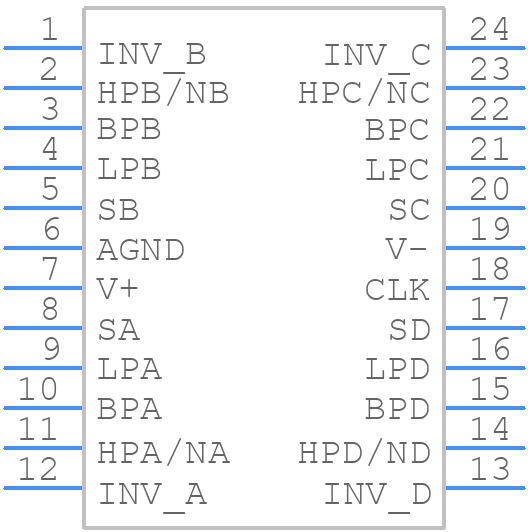

Part Symbol
-

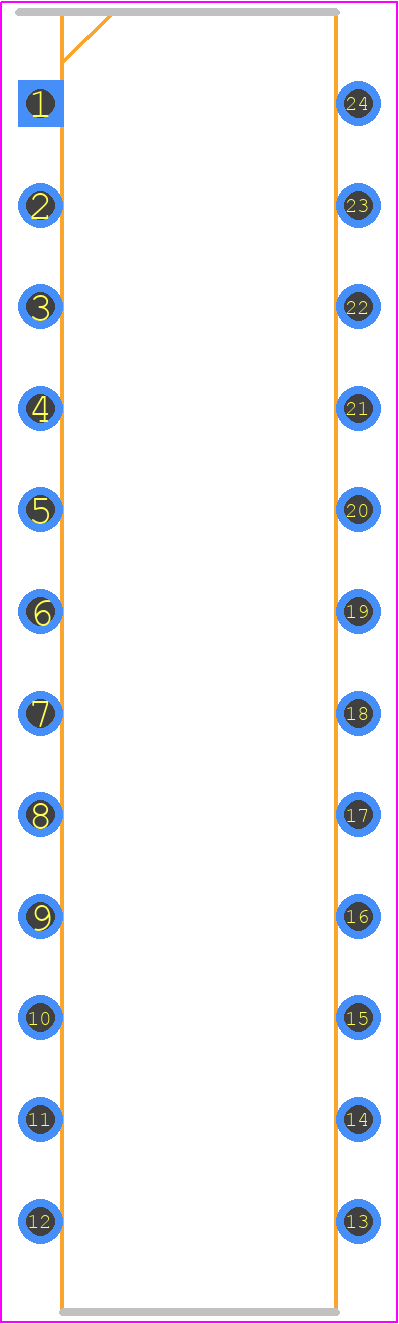

Footprint
-

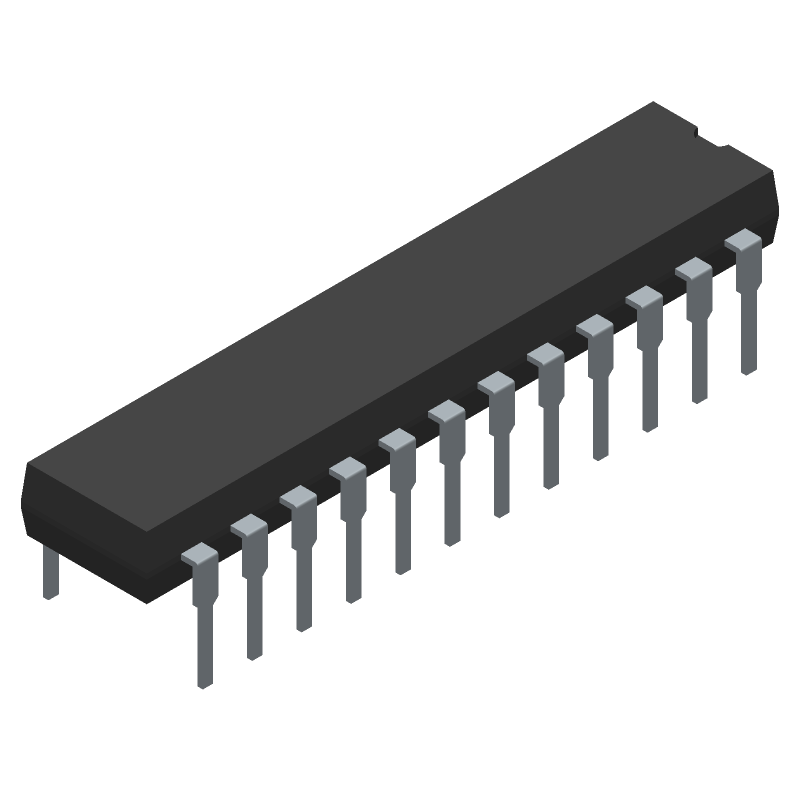

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC1068IN#PBF by Analog Devices Inc
Results Overview of LTC1068IN#PBF by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LTC1068IN#PBF Information
LTC1068IN#PBF by Analog Devices Inc is an Active Filter.
Active Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Price & Stock for LTC1068IN#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LTC1068IN#PBF-ND
|
DigiKey | IC FILTER 50KHZ UNIV SWTCH 24DIP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
51 In Stock |
|
$10.3750 / $18.5300 | Buy Now |
|
DISTI #
584-LTC1068IN#PBF
|
Mouser Electronics | Active Filters Clock-Tunable, 4x Second Order, Filt Bui RoHS: Compliant | 9 |
|
$10.7200 / $17.7800 | Buy Now |
|
|
Analog Devices Inc | Clock-Tunable, 4x Second Order Package Multiple: 15 | 611 |
|
$8.3000 / $18.5300 | Buy Now |
|
DISTI #
LTC1068INPBF
|
TME | Filter: digital, switched capacitor, universal, DIP24, 0.05MHz Min Qty: 1 | 0 |
|
$12.2000 / $15.4000 | RFQ |
Part Details for LTC1068IN#PBF
LTC1068IN#PBF CAD Models
LTC1068IN#PBF Part Data Attributes
|
|
LTC1068IN#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC1068IN#PBF
Analog Devices Inc
Clock-Tunable, Quad Second Order, Filter Building Blocks
Select a part to compare: |
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 0.300 INCH, LEAD FREE, PLASTIC, DIP-24 | |
| Pin Count | 24 | |
| Manufacturer Package Code | 05-08-1510 (N24) | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Active Filter Type | SWITCHED CAPACITOR FILTER | |
| Center or Cutoff Freq Rng-Max | 50 kHz | |
| Center or Cutoff Freq Rng-Min | 0.001 kHz | |
| JESD-30 Code | R-PDIP-T24 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Max (Vsup) | -5.5 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 4 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Poles and Zeros | 2 AND 0 | |
| Qualification Status | Not Qualified | |
| Response | UNIVERSAL | |
| Seated Height-Max | 3.937 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 3.14 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transfer Characteristics | RESISTOR PROGRAMMABLE | |
| Width | 7.62 mm |
