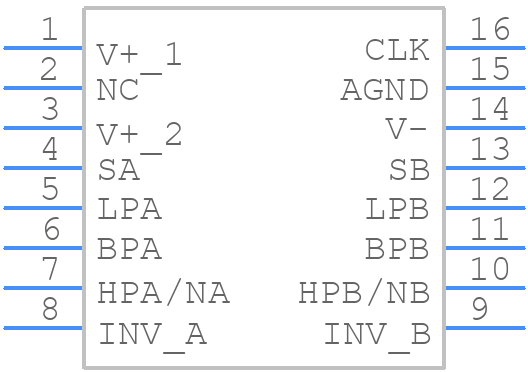

Part Symbol
-

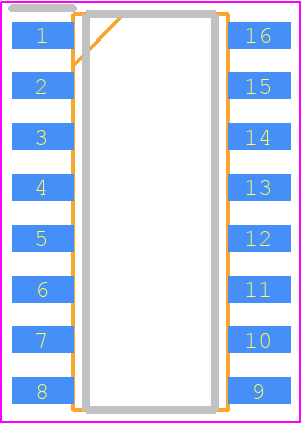

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC1067IS#PBF by Analog Devices Inc
Results Overview of LTC1067IS#PBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LTC1067IS#PBF Information
LTC1067IS#PBF by Analog Devices Inc is an Active Filter.
Active Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Price & Stock for LTC1067IS#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
25AM9021
|
Newark | Switched Cap Filter, 20Khz, Soic-16 |Analog Devices LTC1067IS#PBF RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$7.3700 / $11.2300 | Buy Now |
|
DISTI #
LTC1067IS#PBF-ND
|
DigiKey | IC FILTER 20KHZ SWITCHED 16SOIC Min Qty: 1 Lead time: 10 Weeks Container: Tube |
22 In Stock |
|
$7.0875 / $13.8700 | Buy Now |
|
DISTI #
584-LTC1067IS#PBF
|
Mouser Electronics | Active Filters R2R, Very L N Universal 2x Filt Building RoHS: Compliant | 48 |
|
$7.0800 / $13.8700 | Buy Now |
|
|
Analog Devices Inc | R2R, Very L N Universal 2x Fil Package Multiple: 50 | 1905 |
|
$5.6700 / $13.8700 | Buy Now |
|
|
Rochester Electronics | LTC1067 - R-to-R L/Noise Dual Filter Bldg Block RoHS: Compliant Status: Active Min Qty: 1 | 13 |
|
$6.7000 / $7.8800 | Buy Now |
|
DISTI #
LTC1067ISPBF
|
TME | Filter: digital, switched capacitor, universal, SO16, 0.02MHz Min Qty: 1 | 0 |
|
$6.6600 / $9.0000 | RFQ |
Part Details for LTC1067IS#PBF
LTC1067IS#PBF CAD Models
LTC1067IS#PBF Part Data Attributes
|
|
LTC1067IS#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC1067IS#PBF
Analog Devices Inc
Rail-to-Rail, Very Low Noise Universal Dual Filter Building Block
Select a part to compare: |
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 0.150 INCH, PLASTIC, SO-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 05-08-1610 (S16) | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Active Filter Type | SWITCHED CAPACITOR FILTER | |
| Center or Cutoff Freq Rng-Max | 40 kHz | |
| Center or Cutoff Freq Rng-Min | 0.001 kHz | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 9.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Poles and Zeros | 2 AND 0 | |
| Qualification Status | Not Qualified | |
| Response | UNIVERSAL | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 11 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 4.75 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transfer Characteristics | RESISTOR PROGRAMMABLE | |
| Width | 3.9 mm |
