Signal Circuits / Other Signal Circuits / LT6604IUFF-2.5#PBF
Datasheets
LT6604IUFF-2.5#PBF by:
Analog Devices Inc
Analog Devices Inc
Linear Technology
Not Found

Dual Very Low Noise, Differential Amplifier and 2.5MHz Lowpass Filter

Part Details for LT6604IUFF-2.5#PBF by Analog Devices Inc

Results Overview of LT6604IUFF-2.5#PBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

LT6604IUFF-2.5#PBF Information

LT6604IUFF-2.5#PBF by Analog Devices Inc is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.

A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.

Price & Stock for LT6604IUFF-2.5#PBF

Part # Distributor Description Stock Price Buy
DISTI # LT6604IUFF-2.5#PBF-ND
DigiKey IC OPAMP DIFF 2 CIRCUIT 34QFN Min Qty: 1 Lead time: 10 Weeks Container: Tube 12
In Stock
  • 1 $19.4500
  • 10 $13.7810
  • 52 $11.3492
  • 104 $11.0500
$11.0500 / $19.4500 Buy Now
DISTI # 584-6604IUFF-2.5PBF
Mouser Electronics Differential Amplifiers 2x Very L N, Diff Amplifier & 2.5MHz Lp RoHS: Compliant 284
  • 1 $18.8300
  • 10 $14.2100
  • 25 $13.7800
  • 52 $13.7100
  • 104 $13.2500
  • 260 $13.2400
  • 520 $11.3800
$11.3800 / $18.8300 Buy Now
Analog Devices Inc 2x Very L N, Diff Amplifier & Package Multiple: 52 3
  • 1 $19.4500
  • 10 $13.7810
  • 1,000 $8.8400
$8.8400 / $19.4500 Buy Now
DISTI # LT6604IUFF-2.5PBF
TME Filter: digital, lowpass, QFN34, 2.5MHz, Ch: 2 Min Qty: 1 0
  • 1 $17.0000
  • 3 $15.0000
  • 10 $13.5000
$13.5000 / $17.0000 RFQ
DISTI # LT6604IUFF-2.5P
Richardson RFPD LINEAR ICS, OTHER RoHS: Compliant Min Qty: 52 0
  • 52 $13.2600
  • 100 $12.5300
  • 500 $12.1900
  • 1,000 $11.8600
  • 5,000 $11.4100
$11.4100 / $13.2600 Buy Now

Part Details for LT6604IUFF-2.5#PBF

LT6604IUFF-2.5#PBF CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

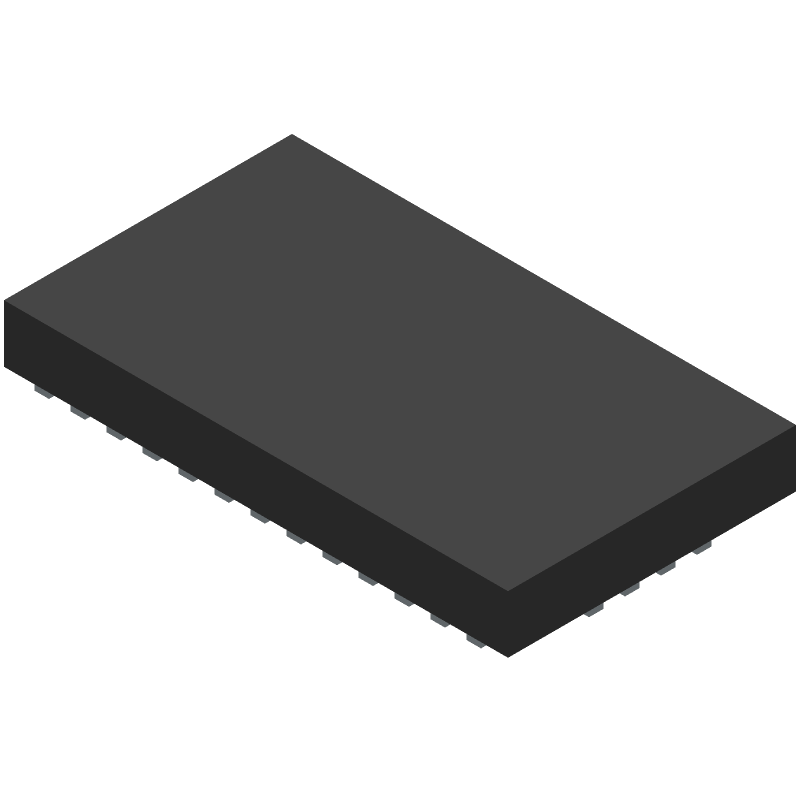

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LT6604IUFF-2.5#PBF Part Data Attributes

Parametric Data
LT6604IUFF-2.5#PBF Analog Devices Inc
Buy Now Datasheet
Compare Parts:
LT6604IUFF-2.5#PBF Analog Devices Inc Dual Very Low Noise, Differential Amplifier and 2.5MHz Lowpass Filter
Select a part to compare:
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Package Description 4 X 7 MM, 0.75 MM HEIGHT, LEAD FREE, PLASTIC, QFN-34
Pin Count 34
Manufacturer Package Code 05-08-1758
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Samacsys Manufacturer Analog Devices
Additional Feature IT CAN ALSO OPERATES WITH 3V OR 5V SINGLE SUPPLY
Analog IC - Other Type ANALOG CIRCUIT
JESD-30 Code R-PQCC-N34
JESD-609 Code e3
Length 7 mm
Moisture Sensitivity Level 1
Neg Supply Voltage-Nom (Vsup) -5 V
Number of Functions 2
Number of Terminals 34
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Shape RECTANGULAR
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 0.8 mm
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 4 mm

Alternate Parts for LT6604IUFF-2.5#PBF

This table gives cross-reference parts and alternative options found for LT6604IUFF-2.5#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT6604IUFF-2.5#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LT6604IUFF-5#TRPBF Analog Devices Inc Check for Price Dual Very Low Noise, Differential Amplifier and 5MHz Lowpass Filter LT6604IUFF-2.5#PBF vs LT6604IUFF-5#TRPBF
LT6604IUFF-5#TRPBF Linear Technology Check for Price LT6604-5 - Dual Very Low Noise, Differential Amplifier and 5MHz Lowpass Filter; Package: QFN; Pins: 34; Temperature Range: -40°C to 85°C LT6604IUFF-2.5#PBF vs LT6604IUFF-5#TRPBF
LT6604CUFF-2.5#PBF Linear Technology Check for Price LT6604-2.5 - Dual Very Low Noise, Differential Amplifier and 2.5MHz Lowpass Filter; Package: QFN; Pins: 34; Temperature Range: 0°C to 70°C LT6604IUFF-2.5#PBF vs LT6604CUFF-2.5#PBF
LT6604IUFF-5#PBF Linear Technology Check for Price LT6604-5 - Dual Very Low Noise, Differential Amplifier and 5MHz Lowpass Filter; Package: QFN; Pins: 34; Temperature Range: -40°C to 85°C LT6604IUFF-2.5#PBF vs LT6604IUFF-5#PBF
LT6604IUFF-10#PBF Linear Technology Check for Price LT6604-10 - Dual Very Low Noise, Differential Amplifier and 10MHz Lowpass Filter; Package: QFN; Pins: 34; Temperature Range: -40°C to 85°C LT6604IUFF-2.5#PBF vs LT6604IUFF-10#PBF
LT6604CUFF-5#PBF Linear Technology Check for Price LT6604-5 - Dual Very Low Noise, Differential Amplifier and 5MHz Lowpass Filter; Package: QFN; Pins: 34; Temperature Range: 0°C to 70°C LT6604IUFF-2.5#PBF vs LT6604CUFF-5#PBF
LT6604CUFF-10#PBF Analog Devices Inc Check for Price Dual Very Low Noise, Differential Amplifier and 10MHz Lowpass Filter LT6604IUFF-2.5#PBF vs LT6604CUFF-10#PBF
LT6604IUFF-2.5#TRPBF Linear Technology Check for Price LT6604-2.5 - Dual Very Low Noise, Differential Amplifier and 2.5MHz Lowpass Filter; Package: QFN; Pins: 34; Temperature Range: -40°C to 85°C LT6604IUFF-2.5#PBF vs LT6604IUFF-2.5#TRPBF
LT6604CUFF-2.5#TRPBF Linear Technology Check for Price LT6604-2.5 - Dual Very Low Noise, Differential Amplifier and 2.5MHz Lowpass Filter; Package: QFN; Pins: 34; Temperature Range: 0°C to 70°C LT6604IUFF-2.5#PBF vs LT6604CUFF-2.5#TRPBF
LT6604CUFF-2.5#PBF Analog Devices Inc Check for Price Dual Very Low Noise, Differential Amplifier and 2.5MHz Lowpass Filter LT6604IUFF-2.5#PBF vs LT6604CUFF-2.5#PBF

LT6604IUFF-2.5#PBF Frequently Asked Questions (FAQ)

  • A good PCB layout for the LT6604 involves keeping the input and output capacitors close to the device, using short and wide traces for the power lines, and separating the analog and digital grounds. A 4-layer PCB with a solid ground plane is recommended.

  • To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, use a low-ESR output capacitor, and consider adding a small series resistor (e.g., 1Ω) between the output capacitor and the load to dampen any oscillations.

  • The maximum input voltage for the LT6604 is 15V, but it's recommended to keep the input voltage below 12V to ensure reliable operation and minimize power dissipation.

  • The LT6604 is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. Consider using a heat sink or reducing the power dissipation to ensure reliable operation in high-temperature environments.

  • The power dissipation of the LT6604 can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.
