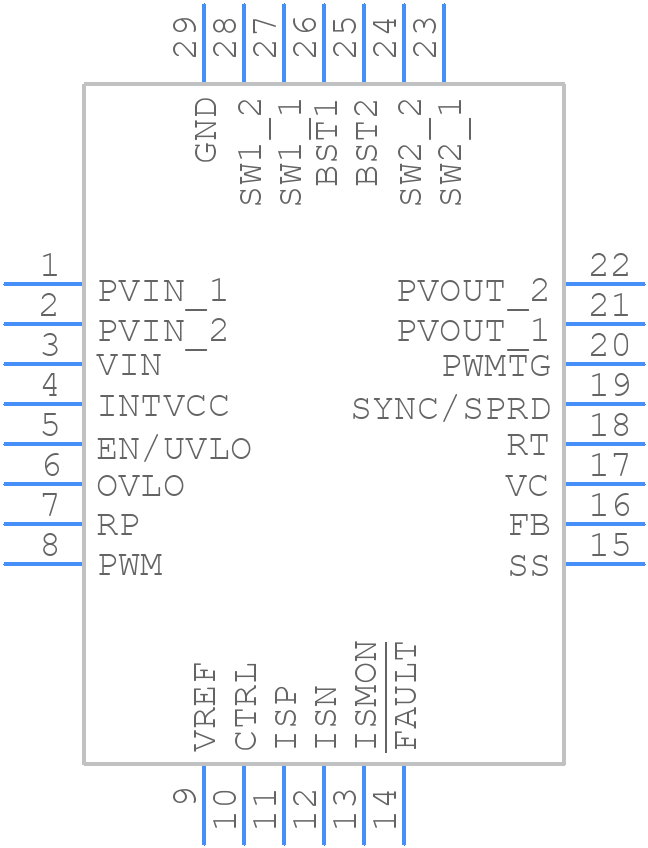

Part Symbol
-
Footprint
-

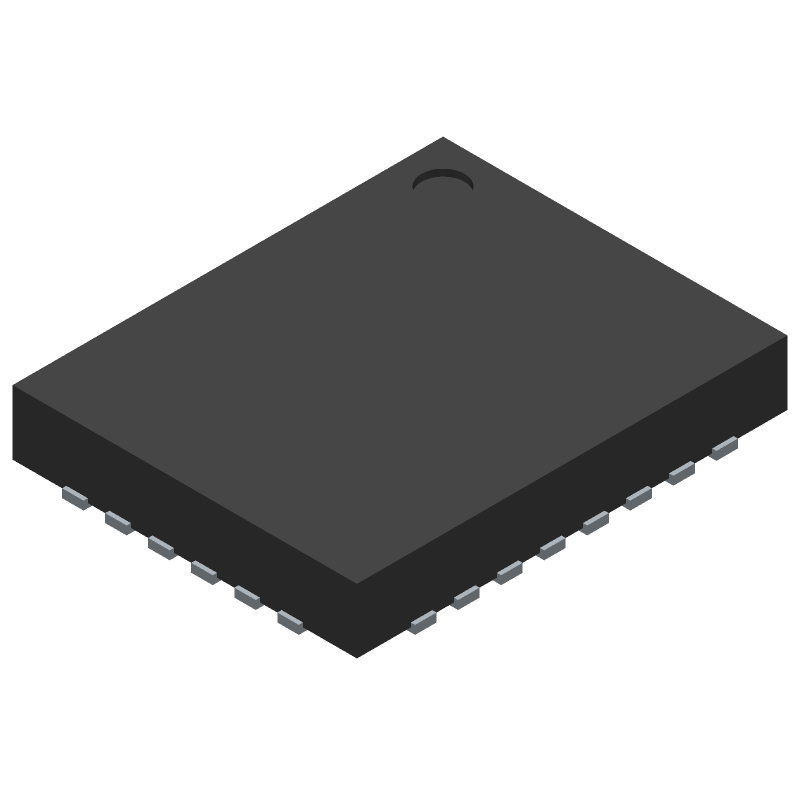

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT3942HUFD#PBF by Analog Devices Inc
Results Overview of LT3942HUFD#PBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
LT3942HUFD#PBF Information
LT3942HUFD#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT3942HUFD#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
02AM3123
|
Newark | Led Driver, Buck-Boost, 2Mhz, Qfn-Ep-28 Rohs Compliant: Yes |Analog Devices LT3942HUFD#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$5.5300 / $11.5000 | Buy Now |
|
DISTI #
161-LT3942HUFD#PBF-ND
|
DigiKey | IC LED DRIVER RGLTR PWM 2A 28QFN Min Qty: 1 Lead time: 26 Weeks Container: Tube |
54 In Stock |
|
$5.5250 / $11.5000 | Buy Now |
|
DISTI #
584-LT3942HUFD#PBF
|
Mouser Electronics | LED Lighting Driver ICs 36V, 2A Synchronous Buck-Boost Converter and LED Driver RoHS: Compliant | 48 |
|
$5.7500 / $10.0200 | Buy Now |
|
|
Analog Devices Inc | 36V, 2A Synchronous Buck-Boost Package Multiple: 73 | 11 |
|
$4.4200 / $11.5000 | Buy Now |
|
DISTI #
LT3942HUFD#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 73 | 0 |
|
$5.7000 / $6.6300 | Buy Now |
Part Details for LT3942HUFD#PBF
LT3942HUFD#PBF CAD Models
LT3942HUFD#PBF Part Data Attributes
|
|
LT3942HUFD#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT3942HUFD#PBF
Analog Devices Inc
36V, 2A Synchronous Buck-Boost Converter and LED Driver
Select a part to compare: |
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 28 | |
| Manufacturer Package Code | 05-08-1712 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2019-10-10 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING CONTROLLER | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 3 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PQCC-N28 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 2 A | |
| Output Voltage-Max | 36 V | |
| Output Voltage-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC28,.16X.2,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK-BOOST | |
| Switching Frequency-Max | 2100 kHz | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 4 mm |
Alternate Parts for LT3942HUFD#PBF
This table gives cross-reference parts and alternative options found for LT3942HUFD#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT3942HUFD#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT3942HUFD#TRPBF | Analog Devices Inc | Check for Price | 36V, 2A Synchronous Buck-Boost Converter and LED Driver | LT3942HUFD#PBF vs LT3942HUFD#TRPBF |
| LT3942JUFD#TRPBF | Analog Devices Inc | Check for Price | 36V, 2A Synchronous Buck-Boost Converter and LED Driver | LT3942HUFD#PBF vs LT3942JUFD#TRPBF |
| LT3942EUFD#TRPBF | Analog Devices Inc | Check for Price | 36V, 2A Synchronous Buck-Boost Converter and LED Driver | LT3942HUFD#PBF vs LT3942EUFD#TRPBF |
LT3942HUFD#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for optimal thermal performance involves placing the device on a thick copper plane, using thermal vias to dissipate heat, and keeping the thermal path short and direct. A 4-layer PCB with a solid ground plane and a thermal plane is recommended.
-
To ensure reliable start-up and shutdown, make sure to follow the recommended power-up and power-down sequences, and provide a stable input voltage. Also, ensure that the input voltage rises and falls monotonically, and avoid sudden changes in input voltage.
-
To minimize EMI and RFI, use a pi-filter (L-C-L) or a common-mode choke at the input, and a ferrite bead or a common-mode choke at the output. Also, ensure that the PCB layout is designed to minimize radiation and susceptibility to external interference.
-
To optimize the device for low noise and high PSRR, use a low-noise input voltage, minimize the input capacitance, and use a high-quality output capacitor with low ESR. Also, ensure that the device is operated within its recommended operating conditions.
-
For high-temperature operation, derate the device's power dissipation according to the thermal derating curve provided in the datasheet. Ensure that the device is operated within its recommended operating temperature range, and provide adequate heat sinking and thermal management.
