LT3015ET-2.5#PBF

Part Details for LT3015ET-2.5#PBF by Analog Devices Inc

Results Overview of LT3015ET-2.5#PBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Industrial Automation Energy and Power Systems Renewable Energy

LT3015ET-2.5#PBF Information

LT3015ET-2.5#PBF by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LT3015ET-2.5#PBF

Part # Distributor Description Stock Price Buy
DISTI # 505-LT3015ET-2.5#PBF-ND
DigiKey IC REG LINEAR -2.5V 1.5A TO220-5 Min Qty: 1 Lead time: 10 Weeks Container: Tube 46
In Stock
  • 1 $9.7300
  • 10 $6.5920
  • 50 $5.2722
  • 100 $4.8512
  • 250 $4.4125
$4.4125 / $9.7300 Buy Now
DISTI # 584-LT3015ET-2.5#PBF
Mouser Electronics LDO Voltage Regulators 1.5A, L N, Neg Lin Reg w/ Prec C Lim RoHS: Compliant 96
  • 1 $8.1700
  • 10 $6.3400
  • 50 $6.3200
  • 100 $5.2600
  • 250 $4.9500
  • 500 $4.8900
  • 1,000 $4.8400
$4.8400 / $8.1700 Buy Now
Analog Devices Inc 1.5A, L N, Neg Lin Reg w/ Prec Package Multiple: 50 2710
  • 1 $9.7300
  • 10 $6.5920
  • 100 $4.8512
  • 250 $4.4125
  • 1,000 $3.5300
$3.5300 / $9.7300 Buy Now
DISTI # 56066254
Verical LDO Regulator Neg -2.5V 1.5A 5-Pin(5+Tab) TO-220 Tube Min Qty: 100 Package Multiple: 100 Americas - 2700
  • 100 $4.4403
$4.4403 Buy Now
DISTI # LT3015ET-2.5PBF
Richardson RFPD VOLTAGE REGULATOR RoHS: Compliant Min Qty: 100 0
  • 100 $5.0000
  • 500 $4.8700
  • 1,000 $4.7300
  • 5,000 $4.5600
$4.5600 / $5.0000 Buy Now

Part Details for LT3015ET-2.5#PBF

LT3015ET-2.5#PBF CAD Models

  • Part Symbol

    Part Symbol

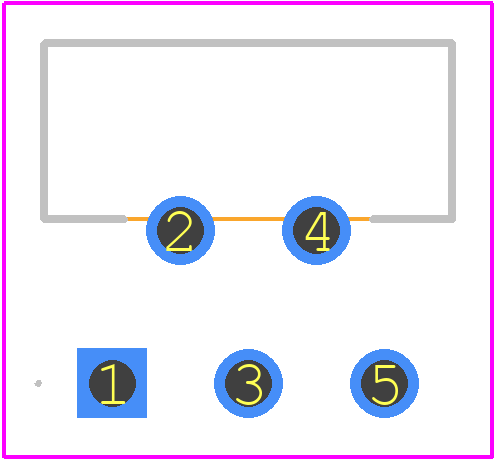

  • Footprint

    footprint

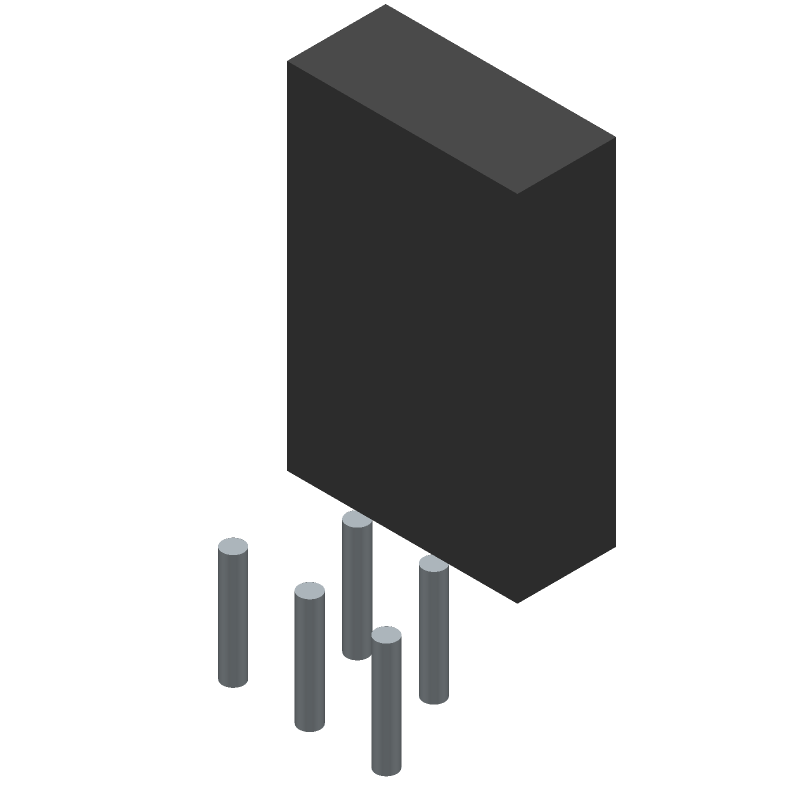

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LT3015ET-2.5#PBF Part Data Attributes

Parametric Data
LT3015ET-2.5#PBF Analog Devices Inc
Buy Now Datasheet
Compare Parts:
LT3015ET-2.5#PBF Analog Devices Inc LT3015ET-2.5#PBF
Select a part to compare:
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Package Description LEAD FREE, PLASTIC, TO-220, 5 PIN
Pin Count 5
Manufacturer Package Code 05-08-1421 (STD)
Reach Compliance Code not_compliant
Samacsys Manufacturer Analog Devices
Dropout Voltage1-Max 0.68 V
Dropout Voltage1-Nom 0.41 V
Input Voltage-Max 30 V
Input Voltage-Min 3 V
JESD-30 Code R-PSFM-T5
JESD-609 Code e3
Length 10.22 mm
Load Regulation-Max 0.018%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 5
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min
Output Current1-Max 1.5 A
Output Voltage1-Max 2.55 V
Output Voltage1-Min 2.45 V
Output Voltage1-Nom 2.5 V
Package Body Material PLASTIC/EPOXY
Package Code SFM
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) 245
Regulator Type FIXED NEGATIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 21.5 mm
Surface Mount NO
Technology BIPOLAR
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Form THROUGH-HOLE
Terminal Pitch 1.7 mm
Terminal Position SINGLE
Voltage Tolerance-Max 2%
Width 4.38 mm
