Amplifier Circuits / Operational Amplifiers / LT1793CN8#PBF
Datasheets
LT1793CN8#PBF by:
Analog Devices Inc
Analog Devices Inc
Linear Technology
Not Found

Low Noise, Picoampere Bias Current, JFET Input Op Amp

Part Details for LT1793CN8#PBF by Analog Devices Inc

Results Overview of LT1793CN8#PBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

LT1793CN8#PBF Information

LT1793CN8#PBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for LT1793CN8#PBF

Part # Distributor Description Stock Price Buy
DISTI # 50AK5013
Newark Op-Amp, 4.2Mhz, 0 To 70Deg C, Dip-8, No. Of Channels:1Channels, Gain Bandwidth Product:4.2Mhz, Su... pply Voltage Range:± 4.5V To ± 20V, Ic Case/Package:Dip, No. Of Pins:8Pins, Amplifier Type:Jfet, Rail To Rail:-, Product Range:- Rohs Compliant: Yes |Analog Devices LT1793CN8#PBF more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 63
  • 1 $7.9900
  • 10 $5.0400
  • 25 $4.6800
  • 50 $4.3200
  • 100 $3.9600
  • 250 $3.5700
  • 500 $3.4600
$3.4600 / $7.9900 Buy Now
DISTI # LT1793CN8#PBF-ND
DigiKey IC OPAMP JFET 1 CIRCUIT 8DIP Min Qty: 1 Lead time: 10 Weeks Container: Tube 622
In Stock
  • 1 $8.1300
  • 10 $5.4490
  • 50 $4.3202
  • 100 $3.9601
  • 250 $3.5722
  • 500 $3.4625
$3.4625 / $8.1300 Buy Now
DISTI # 584-LT1793CN8#PBF
Mouser Electronics Operational Amplifiers - Op Amps L N, pAere Bias C, JFET In Op Amp RoHS: Compliant 231
  • 1 $8.1300
  • 10 $5.4500
  • 50 $4.3200
  • 100 $3.9600
  • 250 $3.5700
  • 500 $3.4600
$3.4600 / $8.1300 Buy Now
Analog Devices Inc L N, pAere Bias C, JFET In Op Package Multiple: 50 1425
  • 1 $8.1300
  • 10 $5.4490
  • 100 $3.9601
  • 250 $3.5722
  • 500 $3.4625
  • 1,000 $2.7700
$2.7700 / $8.1300 Buy Now
DISTI # LT1793CN8#PBF
Richardson RFPD AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 150 0
  • 150 $3.9300
  • 500 $3.8100
  • 1,000 $3.7100
  • 5,000 $3.5800
$3.5800 / $3.9300 Buy Now

Part Details for LT1793CN8#PBF

LT1793CN8#PBF CAD Models

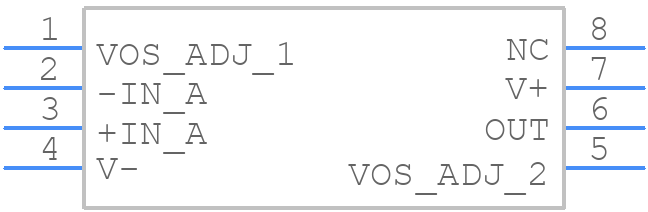

  • Part Symbol

    Part Symbol

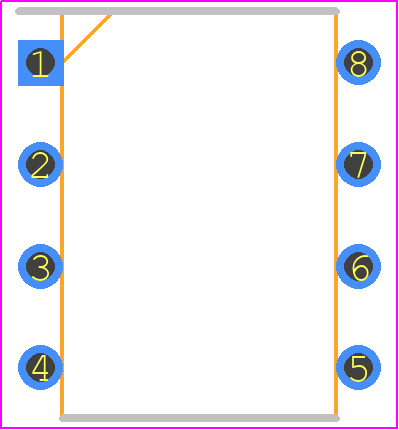

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LT1793CN8#PBF Part Data Attributes

Parametric Data
LT1793CN8#PBF Analog Devices Inc
Buy Now Datasheet
Compare Parts:
LT1793CN8#PBF Analog Devices Inc Low Noise, Picoampere Bias Current, JFET Input Op Amp
Select a part to compare:
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Package Description 0.300 INCH, PLASTIC, DIP-8
Pin Count 8
Manufacturer Package Code 05-08-1510 (N8)
Reach Compliance Code compliant
Samacsys Manufacturer Analog Devices
Amplifier Type OPERATIONAL AMPLIFIER
Average Bias Current-Max (IIB) 0.0005 µA
Common-mode Reject Ratio-Nom 95 dB
Input Offset Voltage-Max 3500 µV
JESD-30 Code R-PDIP-T8
JESD-609 Code e3
Moisture Sensitivity Level 1
Neg Supply Voltage Limit-Max -20 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 70 °C
Operating Temperature-Min
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 3.937 mm
Slew Rate-Nom 3.3 V/us
Supply Voltage Limit-Max 20 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Unity Gain BW-Nom 3300
Width 7.62 mm

Alternate Parts for LT1793CN8#PBF

This table gives cross-reference parts and alternative options found for LT1793CN8#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1793CN8#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LT1793CN8 Analog Devices Inc Check for Price Operational Amplifier, 1 Func, 3500uV Offset-Max, PDIP8 LT1793CN8#PBF vs LT1793CN8
Part Number Manufacturer Composite Price Description Compare
LT1793CN8 Linear Technology Check for Price LT1793 - Low Noise, Picoampere Bias Current, JFET Input Op Amp; Package: PDIP; Pins: 8; Temperature Range: 0°C to 70°C LT1793CN8#PBF vs LT1793CN8
LT1793AIN8 Linear Technology Check for Price LT1793 - Low Noise, Picoampere Bias Current, JFET Input Op Amp; Package: PDIP; Pins: 8; Temperature Range: -40°C to 85°C LT1793CN8#PBF vs LT1793AIN8
LT1793CS8#TR Analog Devices Inc Check for Price Operational Amplifier, 1 Func, 3500uV Offset-Max, PDSO8 LT1793CN8#PBF vs LT1793CS8#TR
LT1793AIN8#PBF Linear Technology Check for Price LT1793 - Low Noise, Picoampere Bias Current, JFET Input Op Amp; Package: PDIP; Pins: 8; Temperature Range: -40°C to 85°C LT1793CN8#PBF vs LT1793AIN8#PBF
LT1793IS8 Analog Devices Inc Check for Price Operational Amplifier, 1 Func, 4800uV Offset-Max, PDSO8 LT1793CN8#PBF vs LT1793IS8
LT1793AIS8#TR Analog Devices Inc Check for Price Operational Amplifier, 1 Func, 1300uV Offset-Max, PDSO8 LT1793CN8#PBF vs LT1793AIS8#TR
LT1793ACS8#PBF Analog Devices Inc $4.8519 Low Noise, Picoampere Bias Current, JFET Input Op Amp LT1793CN8#PBF vs LT1793ACS8#PBF
LT1793IN8 Linear Technology Check for Price LT1793 - Low Noise, Picoampere Bias Current, JFET Input Op Amp; Package: PDIP; Pins: 8; Temperature Range: -40°C to 85°C LT1793CN8#PBF vs LT1793IN8
LT1793CS8#TRPBF Analog Devices Inc Check for Price Low Noise, Picoampere Bias Current, JFET Input Op Amp LT1793CN8#PBF vs LT1793CS8#TRPBF
LT1793CS8#TRPBF Linear Technology Check for Price LT1793 - Low Noise, Picoampere Bias Current, JFET Input Op Amp; Package: SO; Pins: 8; Temperature Range: 0°C to 70°C LT1793CN8#PBF vs LT1793CS8#TRPBF

LT1793CN8#PBF Frequently Asked Questions (FAQ)

  • A good PCB layout for the LT1793CN8 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.

  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly sized for the output current. Additionally, avoid using long output traces and minimize the distance between the output capacitor and the load.

  • The LT1793CN8 can operate in ambient temperatures up to 125°C, but the junction temperature should not exceed 150°C. It's essential to ensure proper heat sinking and thermal management to prevent overheating.

  • Yes, the LT1793CN8 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is available in a variety of grades, including the 'H' grade for high-reliability applications.

  • To troubleshoot issues with the LT1793CN8, start by checking the PCB layout and component values against the recommended values. Use an oscilloscope to measure the output voltage and current, and check for signs of oscillation or instability. Also, ensure that the input voltage is within the recommended range and that the device is properly bypassed.
