Amplifier Circuits / Operational Amplifiers / LT1462CN8#PBF
Datasheets
LT1462CN8#PBF by:
Analog Devices Inc
Analog Devices Inc
Linear Technology
Not Found

Dual/Quad Micropower, 260µW C-Load Picoampere Bias Current JFET Input Op Amps

Part Details for LT1462CN8#PBF by Analog Devices Inc

Results Overview of LT1462CN8#PBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

LT1462CN8#PBF Information

LT1462CN8#PBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for LT1462CN8#PBF

Part # Distributor Description Stock Price Buy
DISTI # LT1462CN8#PBF-ND
DigiKey IC OPAMP JFET 2 CIRCUIT 8DIP Min Qty: 150 Lead time: 10 Weeks Container: Tube Temporarily Out of Stock
  • 150 $4.0297
$4.0297 Buy Now
DISTI # 584-LT1462CN8#PBF
Mouser Electronics Operational Amplifiers - Op Amps Dual/Quad Micropower, 260 W C-Load Picoampere Bias Current JFET Inp... ut Op Amps more RoHS: Compliant 0
  • 1 $8.2500
  • 10 $6.1200
  • 50 $5.1900
  • 100 $3.6700
$3.6700 / $8.2500 Order Now
Analog Devices Inc 2x/4x uP, 260µW C-Load pAere B Package Multiple: 50 1950
  • 1 $3.3200
  • 1,000 $2.6800
$2.6800 / $3.3200 Buy Now
DISTI # 35242111
Verical Op Amp Dual Micropower Amplifier ±20V 8-Pin PDIP N Tube RoHS: Compliant Min Qty: 150 Package Multiple: 150 Americas - 1950
  • 150 $3.1000
$3.1000 Buy Now
Rochester Electronics LT1462 - Dual,40uA/Amp,Pico Amp JFET OA RoHS: Compliant Status: Active Min Qty: 1 45
  • 25 $3.5200
  • 100 $3.3400
  • 500 $3.1700
  • 1,000 $2.9900
  • 10,000 $2.8200
$2.8200 / $3.5200 Buy Now
DISTI # LT1462CN8#PBF
Richardson RFPD AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 150 0
  • 150 $3.7900
  • 500 $3.6900
  • 1,000 $3.6000
  • 5,000 $3.4600
$3.4600 / $3.7900 Buy Now

Part Details for LT1462CN8#PBF

LT1462CN8#PBF CAD Models

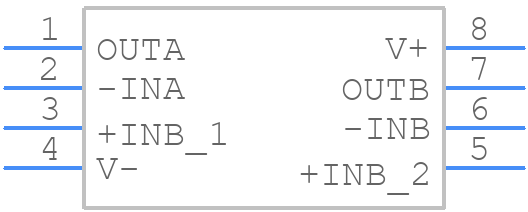

  • Part Symbol

    Part Symbol

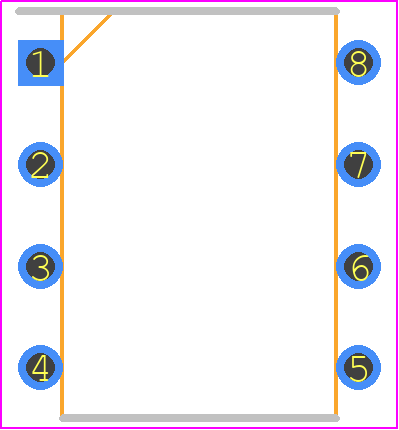

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LT1462CN8#PBF Part Data Attributes

Parametric Data
LT1462CN8#PBF Analog Devices Inc
Buy Now Datasheet
Compare Parts:
LT1462CN8#PBF Analog Devices Inc Dual/Quad Micropower, 260µW C-Load Picoampere Bias Current JFET Input Op Amps
Select a part to compare:
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Package Description 0.300 INCH, PLASTIC, DIP-8
Pin Count 8
Manufacturer Package Code 05-08-1510 (N8)
Reach Compliance Code compliant
Samacsys Manufacturer Analog Devices
Amplifier Type OPERATIONAL AMPLIFIER
Average Bias Current-Max (IIB) 0.00075 µA
Common-mode Reject Ratio-Nom 88 dB
Input Offset Voltage-Max 2800 µV
JESD-30 Code R-PDIP-T8
JESD-609 Code e3
Moisture Sensitivity Level 1
Neg Supply Voltage Limit-Max -20 V
Neg Supply Voltage-Nom (Vsup) -5 V
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 70 °C
Operating Temperature-Min
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 3.809 mm
Slew Rate-Nom 0.128 V/us
Supply Voltage Limit-Max 20 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Unity Gain BW-Nom 140
Width 7.62 mm

Alternate Parts for LT1462CN8#PBF

This table gives cross-reference parts and alternative options found for LT1462CN8#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1462CN8#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LT1462CN8 Analog Devices Inc Check for Price Operational Amplifier, 2 Func, 2800uV Offset-Max, BIPolar, PDIP8 LT1462CN8#PBF vs LT1462CN8
LT1462CN8#PBF Linear Technology Check for Price LT1462 - Dual/Quad Micropower, 260µW C-Load Picoampere Bias Current JFET Input Op Amps; Package: PDIP; Pins: 8; Temperature Range: 0°C to 70°C LT1462CN8#PBF vs LT1462CN8#PBF
LT1462ACN8#PBF Linear Technology Check for Price LT1462 - Dual/Quad Micropower, 260µW C-Load Picoampere Bias Current JFET Input Op Amps; Package: PDIP; Pins: 8; Temperature Range: 0°C to 70°C LT1462CN8#PBF vs LT1462ACN8#PBF
LT1462CS8#TR Linear Technology Check for Price LT1462 - Dual/Quad Micropower, 260µW C-Load Picoampere Bias Current JFET Input Op Amps; Package: SO; Pins: 8; Temperature Range: 0°C to 70°C LT1462CN8#PBF vs LT1462CS8#TR
LT1462ACS8#TRPBF Linear Technology Check for Price LT1462 - Dual/Quad Micropower, 260µW C-Load Picoampere Bias Current JFET Input Op Amps; Package: SO; Pins: 8; Temperature Range: 0°C to 70°C LT1462CN8#PBF vs LT1462ACS8#TRPBF
LT1462ACS8#PBF Linear Technology Check for Price LT1462 - Dual/Quad Micropower, 260µW C-Load Picoampere Bias Current JFET Input Op Amps; Package: SO; Pins: 8; Temperature Range: 0°C to 70°C LT1462CN8#PBF vs LT1462ACS8#PBF
LT1462ACS8 Linear Technology Check for Price LT1462 - Dual/Quad Micropower, 260µW C-Load Picoampere Bias Current JFET Input Op Amps; Package: SO; Pins: 8; Temperature Range: 0°C to 70°C LT1462CN8#PBF vs LT1462ACS8
LT1462CS8#PBF Analog Devices Inc $4.0853 Dual/Quad Micropower, 260µW C-Load Picoampere Bias Current JFET Input Op Amps LT1462CN8#PBF vs LT1462CS8#PBF
LT1462ACS8 Analog Devices Inc Check for Price Operational Amplifier, 2 Func, 2800uV Offset-Max, BIPolar, PDSO8 LT1462CN8#PBF vs LT1462ACS8
LT1462CS8#TRPBF Analog Devices Inc Check for Price Dual/Quad Micropower, 260µW C-Load Picoampere Bias Current JFET Input Op Amps LT1462CN8#PBF vs LT1462CS8#TRPBF
