Amplifier Circuits / Operational Amplifiers / LMV832MM/NOPB
Datasheets
LMV832MM/NOPB by:
Texas Instruments
Honest Han
National Semiconductor Corporation
Texas Instruments
Not Found

Dual, 5.5-V, 3.3-MHz, low noise (12-nV/√Hz) operational amplifier 8-VSSOP -40 to 125

Part Details for LMV832MM/NOPB by Texas Instruments

Results Overview of LMV832MM/NOPB by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics

LMV832MM/NOPB Information

LMV832MM/NOPB by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for LMV832MM/NOPB

Part # Distributor Description Stock Price Buy
DISTI # LMV832MM/NOPBCT-ND
DigiKey IC CMOS 2 CIRCUIT 8VSSOP Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 2458
In Stock
  • 1 $2.0600
  • 10 $1.5240
  • 25 $1.3888
  • 100 $1.2403
  • 250 $1.1694
  • 500 $1.1268
  • 1,000 $1.0917
  • 2,000 $1.0628
  • 3,000 $1.0483
  • 5,000 $1.0322
  • 7,000 $1.0229
$1.0229 / $2.0600 Buy Now
DISTI # 926-LMV832MM/NOPB
Mouser Electronics Operational Amplifiers - Op Amps Dual 3.3MHz Lo Pwr C MOS EMI Op Amp A 926-LMV832MME/NOPB 977
  • 1 $2.0600
  • 10 $1.5300
  • 25 $1.3900
  • 100 $1.2500
  • 250 $1.1700
  • 500 $1.1300
  • 1,000 $1.0900
  • 2,000 $1.0300
  • 5,000 $0.9900
$0.9900 / $2.0600 Buy Now
DISTI # LMV832MM/NOPB
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape 911
  • 1 $1.3900
  • 10 $1.2300
  • 50 $1.0000
  • 100 $0.9300
  • 500 $0.8260
  • 1,000 $0.7700
  • 2,000 $0.7560
$0.7560 / $1.3900 Buy Now
LCSC Dual 500pA 2V/us 3.3MHz 1mV VSSOP-8 Operational Amplifier ROHS 614
  • 1 $1.7867
  • 10 $1.4974
  • 30 $1.3158
  • 100 $1.1311
  • 500 $1.0465
  • 1,000 $1.0111
$1.0111 / $1.7867 Buy Now
Win Source Electronics IC OPAMP GP 3.3MHZ 8VSSOP 9120
  • 70 $0.7640
  • 140 $0.7148
  • 220 $0.6901
  • 315 $0.6408
  • 410 $0.6162
  • 510 $0.5915
$0.5915 / $0.7640 Buy Now

Part Details for LMV832MM/NOPB

LMV832MM/NOPB CAD Models

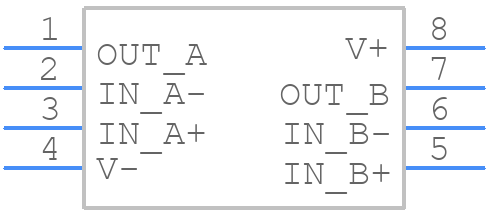

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

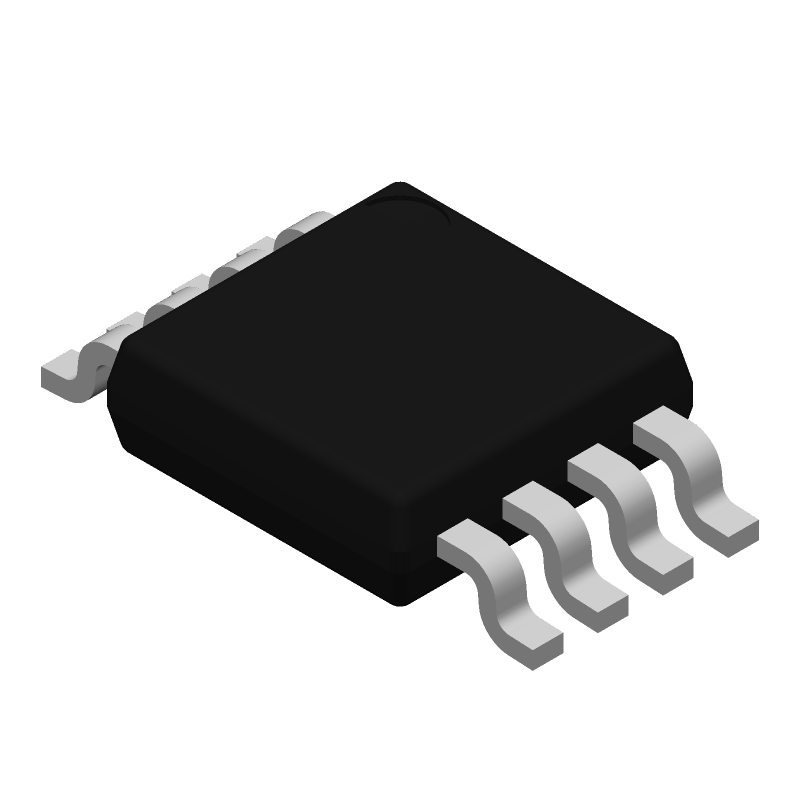

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LMV832MM/NOPB Part Data Attributes

Parametric Data
LMV832MM/NOPB Texas Instruments
Buy Now Datasheet
Compare Parts:
LMV832MM/NOPB Texas Instruments Dual, 5.5-V, 3.3-MHz, low noise (12-nV/√Hz) operational amplifier 8-VSSOP -40 to 125
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SSOP
Package Description VSSOP-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Samacsys Manufacturer Texas Instruments
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.0005 µA
Bias Current-Max (IIB) @25C 0.00001 µA
Common-mode Reject Ratio-Min 77 dB
Common-mode Reject Ratio-Nom 93 dB
Frequency Compensation YES
Input Offset Voltage-Max 1000 µV
JESD-30 Code S-PDSO-G8
JESD-609 Code e3
Length 3 mm
Low-Bias YES
Low-Offset NO
Micropower YES
Moisture Sensitivity Level 1
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP8,.19
Package Shape SQUARE
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method TR
Peak Reflow Temperature (Cel) 260
Power NO
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 1.1 mm
Slew Rate-Nom 2 V/us
Supply Current-Max 0.6 mA
Supply Voltage Limit-Max 6 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Unity Gain BW-Nom 3300
Voltage Gain-Min 125000
Wideband NO
Width 3 mm

Alternate Parts for LMV832MM/NOPB

This table gives cross-reference parts and alternative options found for LMV832MM/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LMV832MM/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LMV832MME/NOPB National Semiconductor Corporation Check for Price Operational Amplifier, 2 Func, 1230uV Offset-Max, CMOS, PDSO8 LMV832MM/NOPB vs LMV832MME/NOPB
LMV832MMX/NOPB Texas Instruments Check for Price Dual, 5.5-V, 3.3-MHz, low noise (12-nV/√Hz) operational amplifier 8-VSSOP -40 to 125 LMV832MM/NOPB vs LMV832MMX/NOPB
LMV832MMX/NOPB National Semiconductor Corporation Check for Price Operational Amplifier, 2 Func, 1230uV Offset-Max, CMOS, PDSO8 LMV832MM/NOPB vs LMV832MMX/NOPB

LMV832MM/NOPB Related Parts

LMV832MM/NOPB Frequently Asked Questions (FAQ)

  • A good PCB layout for the LMV832MM involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance.

  • To ensure stability, use a capacitor with a low equivalent series resistance (ESR) and a minimum capacitance of 1uF. Additionally, add a 1-2 ohm resistor in series with the capacitor to dampen oscillations.

  • The LMV832MM can handle input voltages up to 15V, but it's recommended to operate within the specified input voltage range of 2.7V to 5.5V for optimal performance and reliability.

  • The LMV832MM is rated for operation up to 125°C, but its performance may degrade at high temperatures. Ensure proper thermal management and consider derating the device for reliable operation in high-temperature environments.

  • To reduce noise and ripple, use a low-ESR output capacitor, add a noise-reducing capacitor (e.g., 10nF) between the output and ground, and consider using a ferrite bead or inductor in series with the output to filter high-frequency noise.
